3 說明
LM25017 器件是一款 48V、650mA 同步降壓穩壓器，其集成了高側和低側金屬氧化物半導體場效應晶體管 (MOSFET)。LM25017 器件所采用的恒定導通時間 (COT) 控制方案無需環路補償，可提供出色的瞬態響應，并且可實現超高降壓比。導通時間與輸入電壓成反比，這使得整個輸入電壓范圍內的頻率幾乎保持恒定。高壓?jiǎn)?dòng)穩壓器為 IC 的內部運行以及集成柵極驅動器提供了偏置電源。
峰值電流限制電路可防止出現過載情況。欠壓鎖定 (UVLO) 電路支持對輸入欠壓閾值和遲滯進行單獨編程。其他的保護特性包括：熱關斷和偏置電源欠壓閉鎖 (VCC UVLO)。
LM25017 器件采用 WSON-8 和 HSOP-8 塑料封裝。
器件信息
| 器件型號 | 封裝 | 封裝尺寸（標稱值） |
|---|---|---|
| LM25017 | HSOP (8) | 4.89mm x 3.90mm |
| WSON (8) | 4.00mm x 4.00mm |

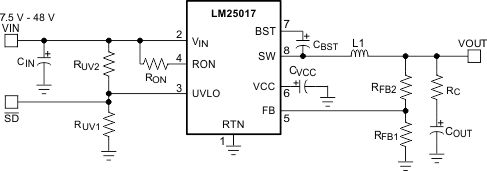

典型應用原理圖
