訂購信息
8.2.6 Application Curves
Common Test Conditions (unless specified otherwise):
- Sensor inductor: 2 layer, 32 turns/layer, 14mm diameter, PCB inductor with L=19.4 µH, RP=5.7 kΩ at 2 MHz
- Sensor capacitor: 330 pF 1% COG/NP0
- Target: Aluminum, 1.5 mm thickness
- Channel = Channel 0 (continuous mode)
- ƒCLKIN = 40 MHz, FIN_DIVIDERx = 0x01, FREF_DIVIDERx = 0x001
- RCOUNT0 = 0xFFFF, SETTLECOUNT0 = 0x0100
- RP_OVERRIDE = 1, AUTO_AMP_DIS = 1, DRIVE_CURRENT0 = 0x9800

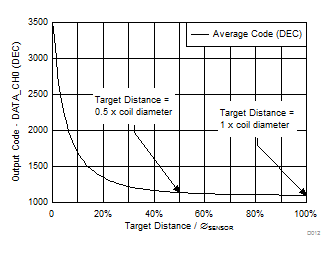

Figure 57. Typical Output Code vs. Target Distance (0 to 14mm)

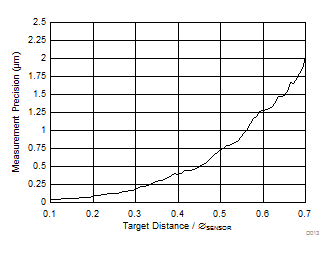

Figure 58. Measurement Precision in Distance vs. Target Distance (0 to 10mm)
