5 Pin Configuration and Functions

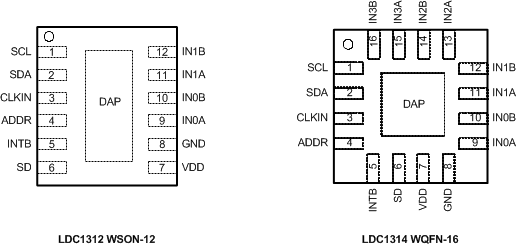

DNT and RGH Packages
Top View
Pin Functions
| PIN | TYPE(1) | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| SCL | 1 | I | I2C Clock input. Open drain output; requires resistive pullup to logic high level. |
| SDA | 2 | I/O | I2C Data input/output. Open drain output; requires resistive pullup to logic high level. |
| CLKIN | 3 | I | External Reference Clock input. Tie this pin to GND if internal oscillator is used. |
| ADDR | 4 | I | I2C Address selection pin: when ADDR=L, I2C address = 0x2A, when ADDR=H, I2C address = 0x2B. This input must not be allowed to float. |
| INTB | 5 | O | Configurable Interrupt output pin. Push-pull output; does not require pullup. |
| SD | 6 | I | Shutdown input: set SD = L for normal operation, set SD=H for inactive mode. This input must not be allowed to float. |
| VDD | 7 | P | Power Supply |
| GND | 8 | G | Ground |
| IN0A | 9 | A | External LC sensor 0 connection |
| IN0B | 10 | A | External LC sensor 0 connection |
| IN1A | 11 | A | External LC sensor 1 connection |
| IN1B | 12 | A | External LC sensor 1 connection |
| IN2A | 13 | A | External LC sensor 2 connection (LDC1314 only) |
| IN2B | 14 | A | External LC sensor 2 connection (LDC1314 only) |
| IN3A | 15 | A | External LC sensor 3 connection (LDC1314 only) |
| IN3B | 16 | A | External LC sensor 3 connection (LDC1314 only) |
| DAP(2) | DAP | N/A | Connect to Ground |
(1) I = Input, O = Output, P=Power, G=Ground, A=Analog
(2) There is an internal electrical connection between the exposed Die Attach Pad (DAP) and the GND pin of the device. Although the DAP can be left floating, for best performance the DAP should be connected to the same potential as the device's GND pin. Do not use the DAP as the primary ground for the device. The device GND pin must always be connected to ground.
