7.2.2 Coarse Position Sensing
The LDC0851 may be used for coarse proximity sensing such as a push button application. A conductive target may be added to the underside of a mechanical push button as shown below.

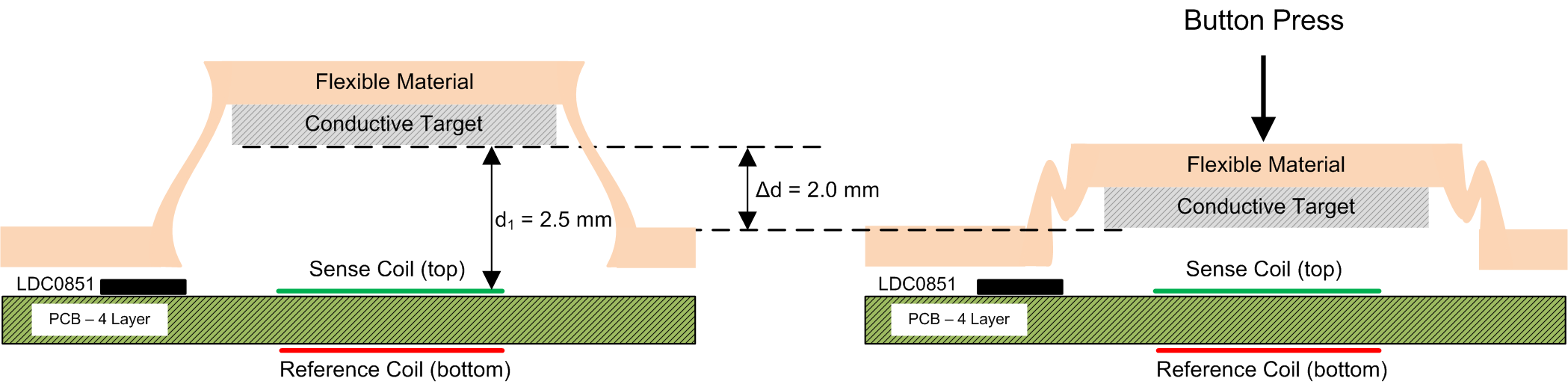

Figure 7-4 Coarse Position Sensing Side View
