10.2 Typical Application
#SLLSEF11669 shows ISOS141-SEP in the GaN half bridge circuit being used to isolate PWM signals from the half-bridge controller on the primary side to the half-bridge gate driver on the secondary side to achieve higher efficiency through synchronous rectification.

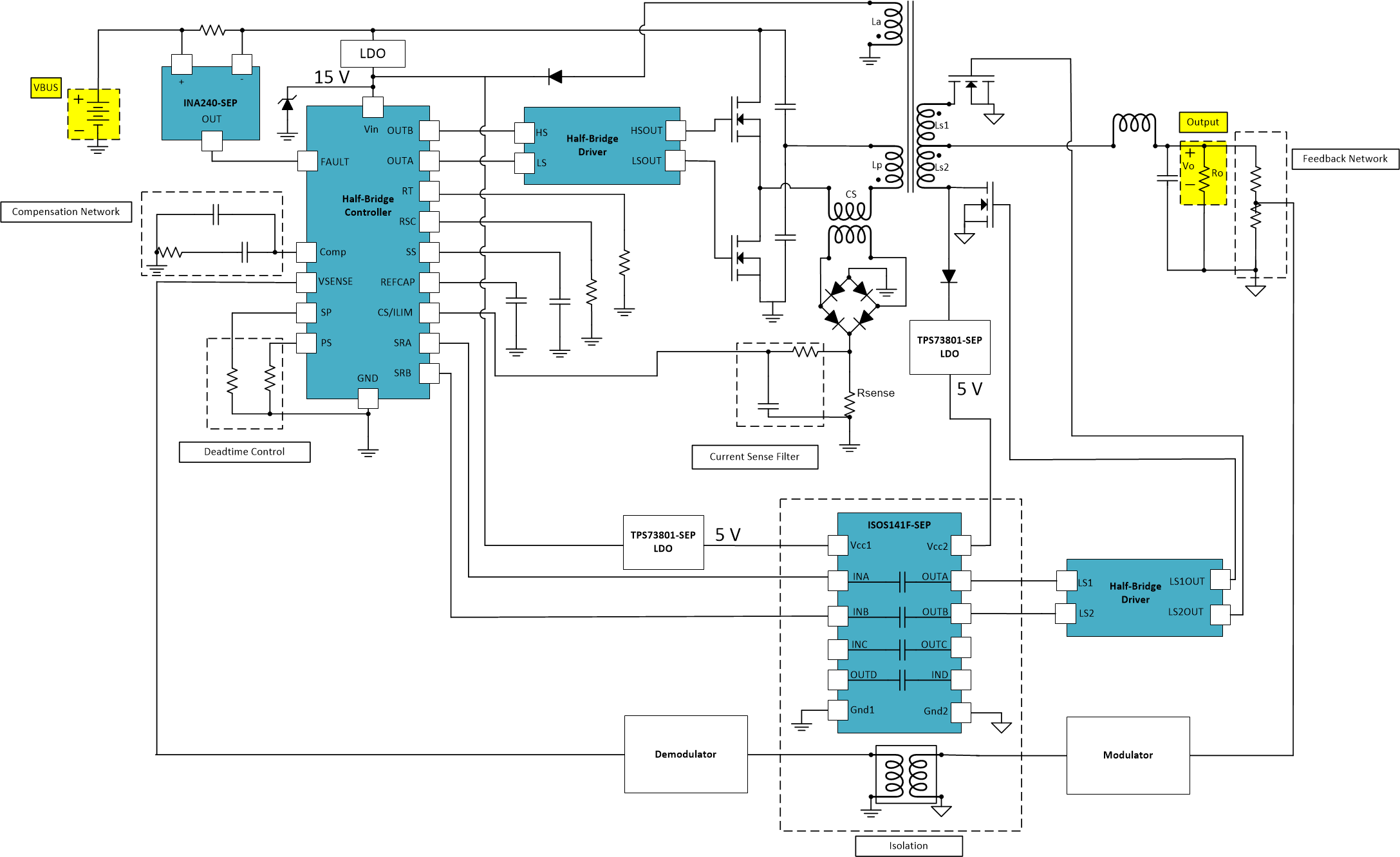

Figure 10-1 Isolated 75V to 5V 50W GaN-Based Half-Bridge Topology
