8.2.3 Application Curves
The typical eye diagram of the ISO776x-Q1 family of devices indicates low jitter and a wide open eye at the maximum data rate of 100 Mbps.

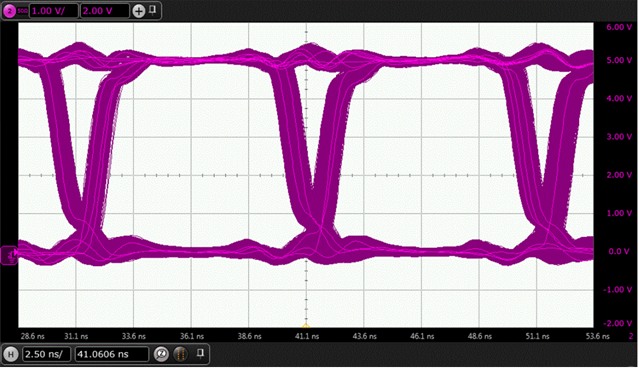

Figure 8-3 Eye Diagram at 100 Mbps PRBS 216 – 1 Data,5 V and 25°C

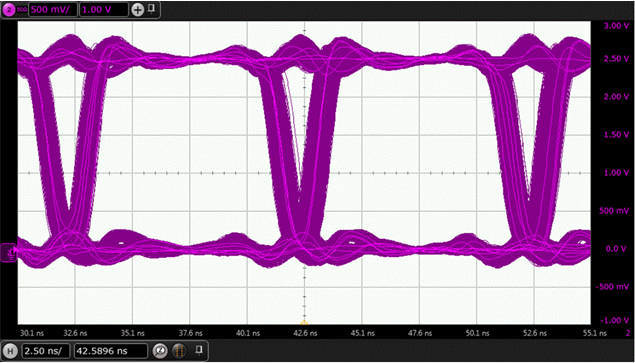

Figure 8-5 Eye Diagram at 100 Mbps PRBS 216 – 1 Data,2.5 V and 25°C

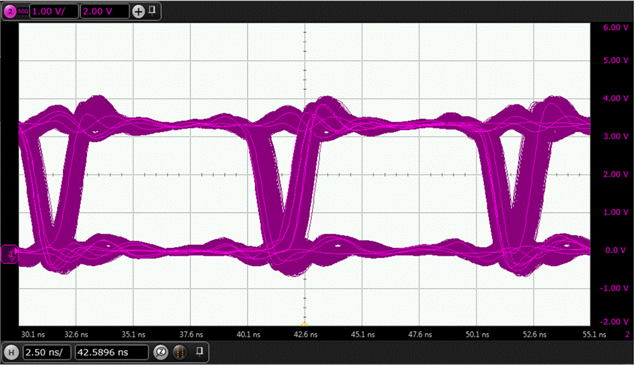

Figure 8-4 Eye Diagram at 100 Mbps PRBS 216 – 1 Data,3.3 V and 25°C
