ZHCSJ25E November 2018 – July 2024 ISO7760-Q1 , ISO7761-Q1 , ISO7762-Q1 , ISO7763-Q1
PRODUCTION DATA
- 1
- 1 特性
- 2 應用
- 3 說明
- 4 說明（續）
- 5 Pin Configuration and Functions
-
6 Specifications
- 6.1 Absolute Maximum Ratings
- 6.2 ESD Ratings
- 6.3 Recommended Operating Conditions
- 6.4 Thermal Information
- 6.5 Power Ratings
- 6.6 Insulation Specifications
- 6.7 Safety-Related Certifications
- 6.8 Safety Limiting Values
- 6.9 Electrical Characteristics—5-V Supply
- 6.10 Supply Current Characteristics—5-V Supply
- 6.11 Electrical Characteristics—3.3-V Supply
- 6.12 Supply Current Characteristics—3.3-V Supply
- 6.13 Electrical Characteristics—2.5-V Supply?
- 6.14 Supply Current Characteristics—2.5-V Supply
- 6.15 Switching Characteristics—5-V Supply
- 6.16 Switching Characteristics—3.3-V Supply
- 6.17 Switching Characteristics—2.5-V Supply
- 6.18 Insulation Characteristics Curves
- 6.19 Typical Characteristics
- Parameter Measurement Information
- 7 Detailed Description
- 8 Application and Implementation
- 9 Power Supply Recommendations
- 10Layout
- 11Device and Documentation Support
- 12Revision History
- 13Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
散熱焊盤機械數據 (封裝 | 引腳)
- DW|16
訂購信息

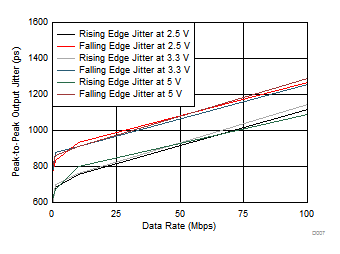

6.19 Typical Characteristics
| TA = 25°C | CL = 15 pF |
(With 15-pF Load)
| TA = 25°C | CL = 15 pF |
(With 15-pF Load)
| TA = 25°C | CL = 15 pF |
(With 15-pF Load)
| TA = 25°C | CL = 15 pF |
(With 15-pF Load)
| TA = 25°C |
| TA = 25°C |
| TA = 25°C | CL = No Load |
(With No Load)
| TA = 25°C | CL = No Load |
(With No Load)
| TA = 25°C | CL = No Load |
(With No Load)
| TA = 25°C | CL = No Load |
(With No Load)
| TA = 25°C |
