17 Parameter Measurement Information
A. The input pulse is supplied by a generator having the following characteristics: PRR ≤ 50 kHz, 50% duty cycle, tr ≤ 3ns, tf ≤ 3ns, ZO = 50Ω.
B. CL = 15 pF and includes instrumentation and fixture capacitance within ±20%.

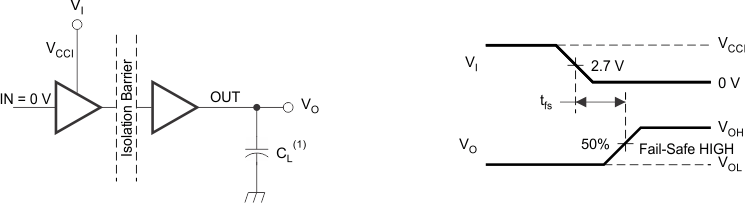

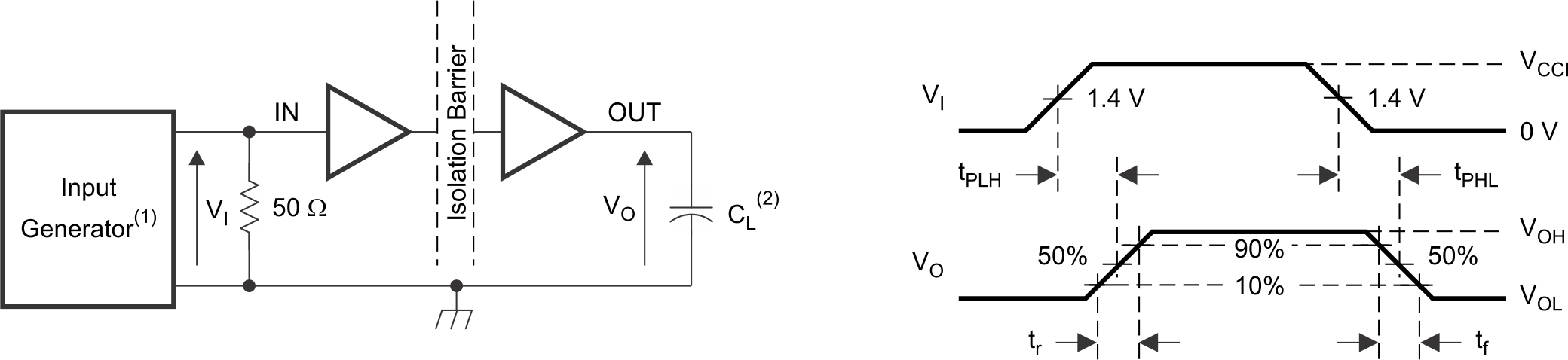

Figure 1. Switching Characteristic Test Circuit and Voltage Waveforms
