9.2 Typical Application

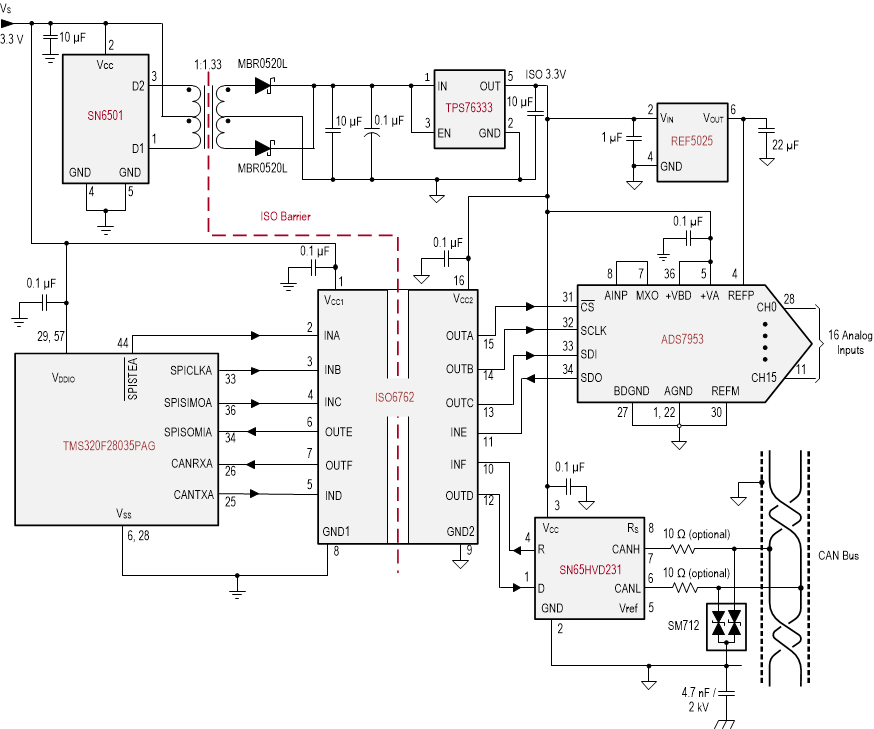

#SLLSEP43722 shows the isolated serial-peripheral interface (SPI) and controller-area network (CAN) interface implementation.
Figure 9-1 Isolated
SPI and CAN Interface
