7 Parameter Measurement Information
A. The input pulse is supplied by a generator having the following characteristics: PRR ≤ 50 kHz, 50% duty cycle, tr ≤ 3 ns, tf ≤ 3ns, ZO = 50 Ω. At the input, 50 Ω resistor is required to terminate Input Generator signal. It is not needed in actual application.
B. CL = 15 pF and includes instrumentation and fixture capacitance within ±20%.

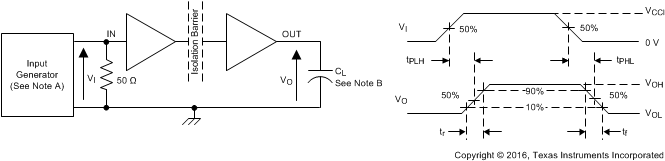

Figure 7-1 Switching Characteristics Test Circuit and Voltage Waveforms
A. CL = 15 pF and includes instrumentation and fixture capacitance within ±20%.
B. Power Supply Ramp Rate = 10 mV/ns

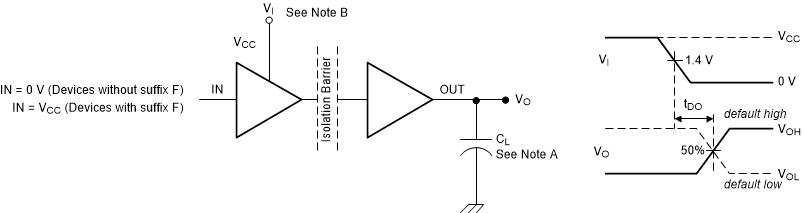

Figure 7-2 Default Output Delay Time Test Circuit and Voltage Waveforms
A. CL = 15 pF and includes instrumentation and fixture capacitance within ±20%.
B. For
optimized CMTI performance, a 0.1 μF + 1 μF decoupling capacitor should be
placed close to VCC1 and VCC2. Please see GUID-E309B257-E5C8-46D7-964D-A22AC19BB137.html for
capacitor placement details. A recommended 0.1μF capacitor is LLL185R71A104MA11L
(CAP CER 0.1UF 10V X7R 0306 - LW Reversed Low ESL Chip Ceramic Capacitors) or
equivalent.

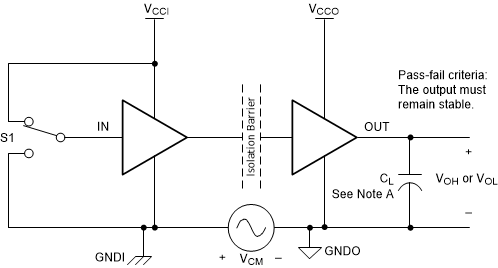

Figure 7-3 Common-Mode Transient Immunity Test Circuit
