5 Pin Configuration and Functions

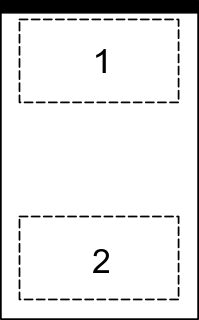

Figure 5-1 DPL
Package,2-Pin X2SON(Top View)Table 5-1 Pin Functions
| PIN | TYPE(1) | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| IO | 1 | I/O | ESD protected channel |
| GND | 2 | GND | Ground. Connect to ground. |
(1) I = input, O = output, GND = ground
