ZHCSD37A November 2014 – March 2019 DS90UH947-Q1
PRODUCTION DATA.
Bypass capacitors should be placed near the power supply pins. A capacitor and resistor are placed on the PDB pin to delay the enabling of the device until power is stable. See below for typical STP and coax connection diagrams.

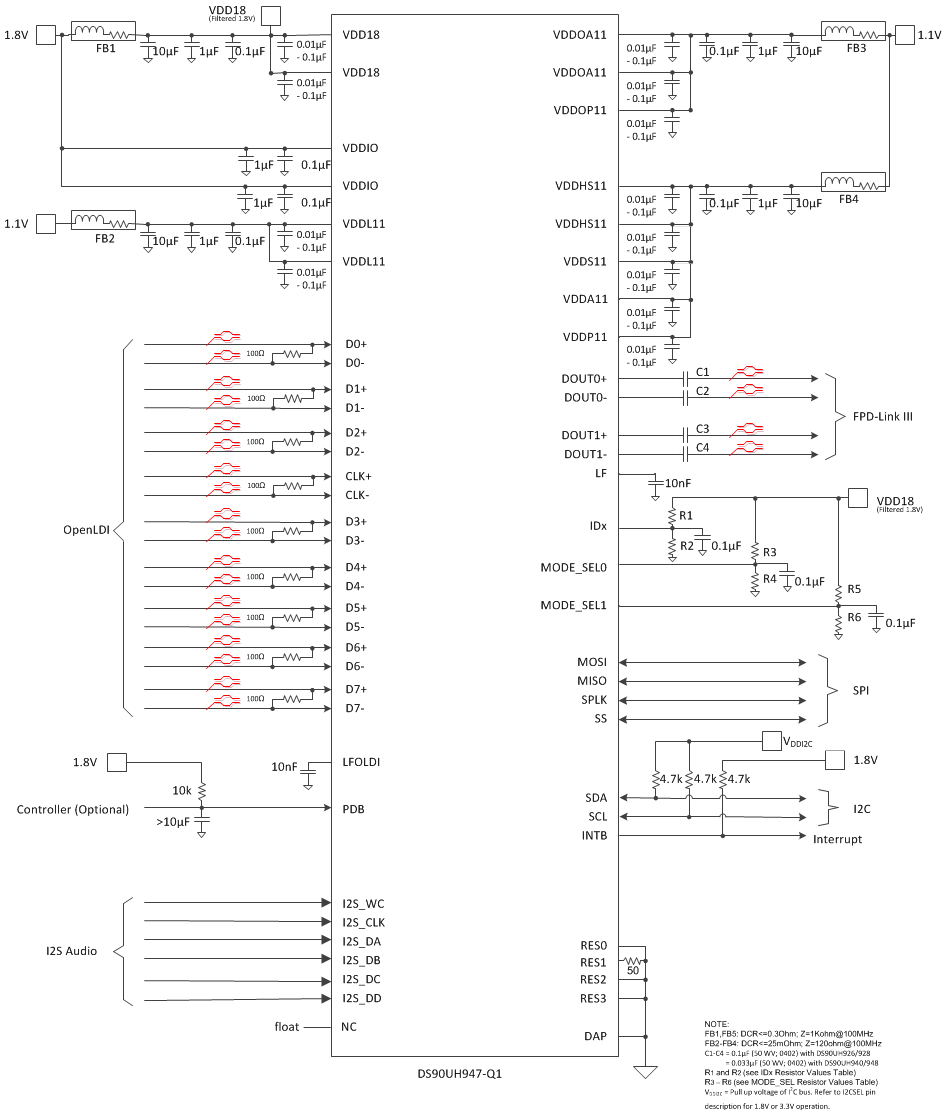

Figure 35. Typical Application Connection -- STP
Figure 36. Typical Application Connection -- Coax

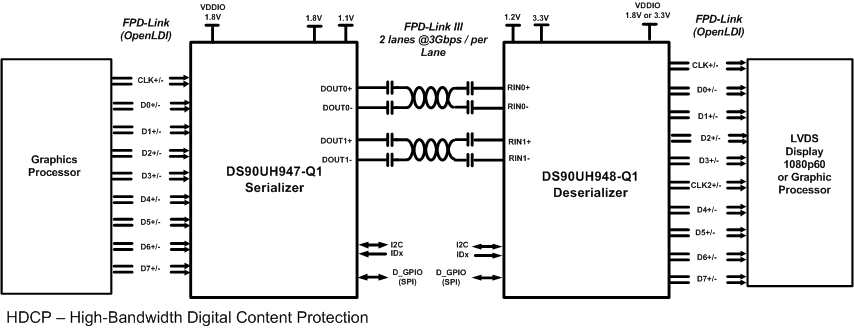

Figure 37. Typical System Diagram
