The DS280DF810 output driver has a three-tap finite impulse response (FIR) filter which allows for pre- and post-cursor equalization to compensate for a wide variety of output channel media. The filter consists of a weighted sum of three consecutive retimed bits as shown in the following diagram. C[0] can take on values in the range [-31, +31]. C[-1] and C[+1] can take on values in the range [-15, 15].

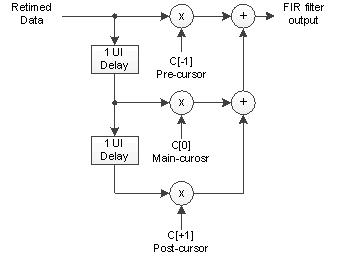

Figure 6-3 FIR filter functional model

When utilizing the FIR filter, it is important to abide by the following general rules:

• |C[-1]| + |C[0]| + |C[+1]| ≤ 31; the FIR tap coefficients absolute sum must be less or equal to 31).
• sgn(C[-1]) = sgn(C[+1]) ≠ sgn(C[0]), for high-pass filter effect; the sign for the pre-cursor or post-cursor tap must be different from main-cursor tap to realize boost effect.
• sgn(C[-1]) = sgn(C[+1]) = sgn(C[0]), for low-pass filter effect; the sign for the pre-cursor or post-cursor tap must be equal to the main-cursor tap to realize attenuation effect.

The FIR filter is used to pre-distort the transmitted waveform in order to compensate for frequency-dependant loss in the output channel. The most common way of pre-distorting the signal is to accentuate the transitions and de-emphasize the non-transitions. The bit before a transition is accentuated via the pre-cursor tap, and the bit after the transition is accentuated via the post-cursor tap. The figures below give a conceptual illustration of how the FIR filter affects the output waveform. The following characteristics can be derived from the example waveforms.

• VOD_pk-pk=v₇ - v₈
• VOD_{low-frequency} = v₂ - v₅
• Rpre_dB = 20 * log₁₀ (v₃ ?v₂ )
• Rpst_dB = 20 * log₁₀ (v₁ ?v₂ )

Figure 6-4 Conceptual FIR Waveform With Post-Cursor Only

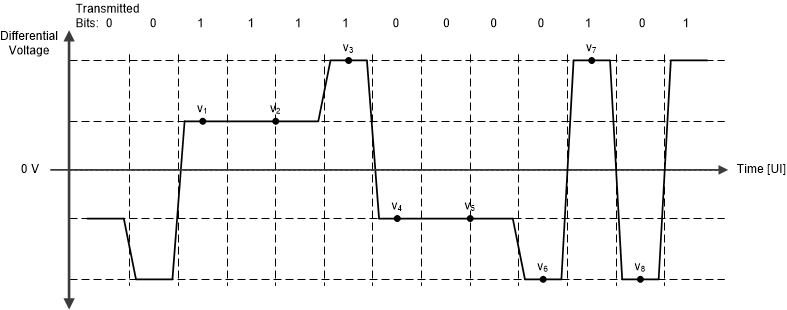

Figure 6-5 Conceptual FIR Waveform With Pre-Cursor Only

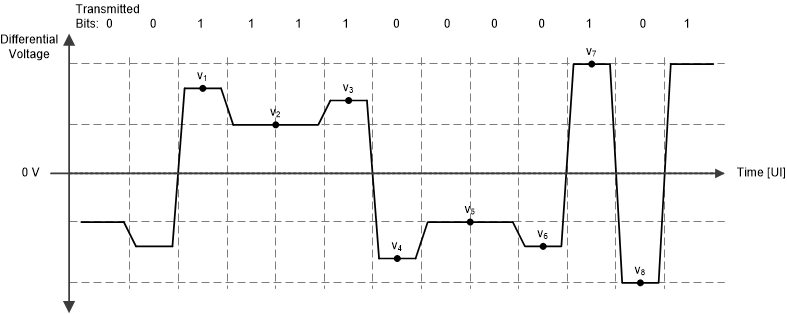

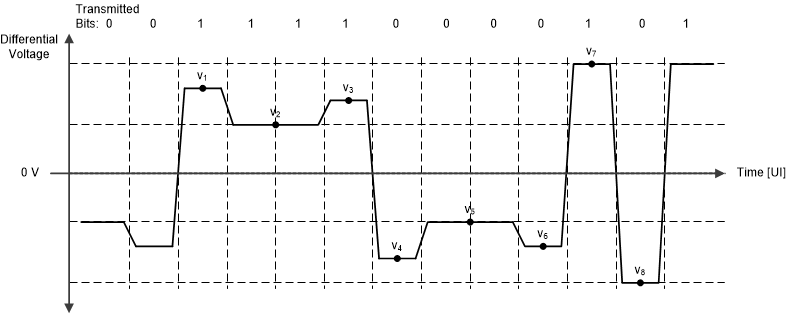

Figure 6-6 Conceptual FIR Waveform With Both Pre-Cursor and Post-Cursor
