ZHCSBO8A September 2013 – March 2014 DS125BR401A
PRODUCTION DATA.
- 1 特性
- 2 應用范圍
- 3 說明
- 4 修訂歷史記錄
- 5 Terminal Configuration and Functions
- 6 Specifications
- 7 Detailed Description
- 8 Applications and Implementation
- 9 Power Supply Recommendations
- 10Layout
- 11器件和文檔支持
- 12機械封裝和可訂購信息
7 Detailed Description
7.1 Overview
The DS125BR401A compensates for lossy FR-4 printed circuit board backplanes and balanced cables. The DS125BR401A operates in 3 modes: Terminal Control Mode (ENSMB = 0), SMBus Slave Mode (ENSMB = 1) and SMBus Master Mode (ENSMB = float) to load register information from external EEPROM; please refer to SMBus Master Mode for additional information.
7.2 Functional Block Diagram
B-Channel Datapath

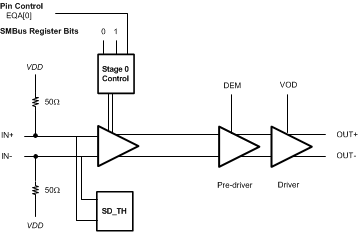

A-Channel Datapath
7.2.1 Functional Datapath Blocks
The Channel-B datapath is designed to handle higher levels of input attenuation and includes an output with a soft-limiting function to provide some transparency for Rx-Tx training in SAS-3 and other standards. The Channel-A datapath has less input equalization coupled with a linear driver. This combination has a high level of transparency, achieving greater drive distance in SAS-3 applications which utilize Rx-Tx training. The asymmetrical channel design follows the application diagram in .
The Channel-A and Channel-B data-paths are optimized to work as a transparent driver and a transparent receiver. The typical DS125BR401A system placement breaks a long transmission line into two pieces. This often leads to one short and one long piece, this unequal partition places different demands on A and B-Channels. To maximize channel extension with the DS125BR401A, connect the A-Channel Inputs to the channel segment with the lowest attenuation to the SAS-3 Tx.
7.3 Feature Description
The 4-level input Terminals utilize a resistor divider to help set the 4 valid levels and provide a wider range of control settings when ENSMB=0. There is an internal 30K pull-up and a 60K pull-down connected to the package Terminal. These resistors, together with the external resistor connection combine to achieve the desired voltage level. Using the 1K pull-up, 1K pull-down, no connect, and 20K pull-down provide the optimal voltage levels for each of the four input states.
Table 1. 4–Level Control Terminal Settings
| Level | Setting | 3.3V Mode | 2.5V Mode |
|---|---|---|---|
| 0 | Tie 1kΩ to GND | 0.10 V | 0.08 V |
| R | Tie 20kΩ to GND | 1/3 x VIN | 1/3 x VDD |
| Float | Float (leave Terminal open) | 2/3 x VIN | 2/3 x VDD |
| 1 | Tie 1kΩ to VIN or VDD | VIN - 0.05 V | VDD - 0.04 V |
Typical 4-Level Input Thresholds
- Level 1 - 2 = 0.2 * VIN or VDD
- Level 2 - 3 = 0.5 * VIN or VDD
- Level 3 - 4 = 0.8 * VIN or VDD
In order to minimize the startup current associated with the integrated 2.5V regulator the 1K pull-up / pull-down resistors are recommended. If several 4 level inputs require the same setting, it is possible to combine two or more 1K resistors into a single lower value resistor. As an example; combining two inputs with a single 500 Ohm resistor is a good way to save board space.
7.4 Device Functional Modes
7.4.1 Terminal Control Mode:
When in Terminal mode (ENSMB = 0), equalization and de-emphasis can be selected via Terminal for each side independently. When de-emphasis is asserted VOD is automatically adjusted per Table 7. For PCIe applications, the RXDET Terminals provides automatic and manual control for input termination (50Ω or >50KΩ). MODE_B setting is also Terminal controllable with Terminal selections (Gen 1/2, auto detect, and SAS-3 / PCIe Gen 3). The receiver electrical signal detect threshold is also adjustable via the SD_TH Terminal. For A-Side Channels this can only be used for status information, on B-Side Channels this threshold will determine when the output state, Mute if no signal is present or active with a valid input signal detected .
7.4.2 SMBus Mode:
When in SMBus mode (ENSMB = 1), the VOD (output amplitude), equalization, de-emphasis, and termination disable features are all programmable on a individual lane basis, instead of grouped by A or B as in the Terminal mode case. Upon assertion of ENSMB, the EQx and DEMx functions revert to register control immediately. The EQx and DEMx Terminals are converted to AD0-AD3 SMBus address inputs. The other external control Terminals (MODE_B, RXDET and SD_TH) remain active unless their respective registers are written to and the appropriate override bit is set, in which case they are ignored until ENSMB is driven low (Terminal mode). On power-up or when ENSMB is driven low all registers are reset to their default state. If PWDN is asserted while ENSMB is high, the registers retain their current state.
Equalization settings accessible via the Terminal controls were chosen to meet the needs of most high speed applications. If additional fine tuning or adjustment is needed, additional equalization settings can be accessed via the SMBus registers. Each input has a total of 256 possible equalization settings. The tables show the 16 settings when the device is in Terminal mode. When using SMBus mode, the equalization, VOD and de- Emphasis levels are set by registers.
The 4-level input Terminals utilize a resistor divider to help set the 4 valid levels and provide a wider range of control settings when ENSMB=0. There is an internal 30K pull-up and a 60K pull-down connected to the package Terminal. These resistors, together with the external resistor connection combine to achieve the desired voltage level. Using the 1K pull-up, 1K pull-down, no connect, and 20K pull-down provide the optimal voltage levels for each of the four input states.
Table 2. RX-Detect Settings
| PWDN (Terminal 52) |
RXDET (Terminal 22) |
SMBus REG Bit[3:2] |
INPUT TERMINATION | RECOMMENDED USE | COMMENTS |
|---|---|---|---|---|---|
| 0 | 0 | 00 | Hi-Z | X | Manual RX-Detect, input is high impedance mode |
| 0 | Tie 20kΩ to GND |
01 | Pre Detect: Hi-Z Post Detect: 50 Ω |
PCIe only | Auto RX-Detect, outputs test every 12 msec for 600 msec then stops; termination is Hi-Z until RX detection; once detected input termination is 50 Ω Reset function by pulsing PWDN high for 5 usec then low again |
| 0 | Float (Default) |
10 | Pre Detect: Hi-Z Post Detect: 50 Ω |
PCIe only | Auto RX-Detect, outputs test every 12 msec until detection occurs; termination is Hi-Z until RX detection; once detected input termination is 50 Ω |
| 0 | 1 | 11 | 50 Ω | All Others | Manual RX-Detect, input is 50 Ω |
| 1 | X | High Impedance | X | Power down mode, input is Hi-Z, output drivers are disabled Used to reset RX-Detect State Machine when held high for 5 usec |
Table 3. OOB And Signal Detect Threshold Level(1)
| SD_TH (Terminal 26) |
SMBus REG BIT [3:2] and [1:0] | [3:2] ASSERT LEVEL (mVp-p) | [1:0] DE-ASSERT LEVEL (mVp-p) | ||
|---|---|---|---|---|---|
| 3 Gbps | 12 Gbps | 3 Gbps | 12 Gbps | ||
| 0 | 10 | 18 | 75 | 14 | 55 |
| R | 01 | 12 | 40 | 8 | 22 |
| F (default) | 00 | 15 | 50 | 11 | 37 |
| 1 | 11 | 16 | 58 | 12 | 45 |
(1) VDD = 2.5V, 25°C, 11 00 11 00 pattern at 3 Gbps and 101010 pattern at 12 Gbps
Table 4. Mode Operation With Terminal Control
| MODE_B (Terminal 21) |
Driver characteristics | PCIe | SAS SATA |
10GbE | CPRI OBSAI |
SRIO (R)XAUI |
Interlaken Infiniband |
|---|---|---|---|---|---|---|---|
| 0 | Limiting | X (≤ 6G) | X | X | X | X | |
| R | Transparent without DE | ||||||
| F (default) | Automatic | X | |||||
| 1 | Transparent with DE | X (SAS-3) |
7.4.3 MODE operation with SMBus Registers
When in SMBus mode (Slave or Master), the MODE Terminal retains control of the output driver characteristics. In order to override this control function, Register 0x08[2] must be written with a "1". Writing this bit enables MODE control of each channel individually using the channel registers defined in Table 9. For Channel-A outputs the MODE control bit is not functional. The outputs are always in a linear mode of operation. Changing these bits while Register 0x08[2]=1 will dramatically reduce the output amplitude.
7.5 Signal Conditioning Settings
Information in Table 5 and Table 6 shows the level of CTLE or equalization gain for Channel-B and Channel-A.
Table 5. B-Channel Equalizer Settings
| Level | EQB1 | EQB0 | EQ – 8 bits [7:0] | dB at 1.5 GHz |
dB at 2.5 GHz |
dB at 4 GHz |
dB at 6 GHz |
Suggested Use(1) |
|---|---|---|---|---|---|---|---|---|
| 1 | 0 | 0 | 0000 0000 = 0x00 | 2.5 | 3.5 | 3.8 | 3.1 | FR4 < 5 inch trace |
| 2 | 0 | R | 0000 0001 = 0x01 | 3.8 | 5.4 | 6.7 | 6.7 | FR4 5-10 inch trace |
| 3 | 0 | Float | 0000 0010 = 0x02 | 5.0 | 7.0 | 8.4 | 8.4 | FR4 10 inch trace |
| 4 | 0 | 1 | 0000 0011 = 0x03 | 5.9 | 8.0 | 9.3 | 9.1 | FR4 15-20 inch trace |
| 5 | R | 0 | 0000 0111 = 0x07 | 7.4 | 10.3 | 12.8 | 13.7 | FR4 20-30 inch trace |
| 6 | R | R | 0001 0101 = 0x15 | 6.9 | 10.2 | 13.9 | 16.2 | FR4 25-30 inch trace |
| 7 | R | Float | 0000 1011 = 0x0B | 9.0 | 12.4 | 15.3 | 15.9 | FR4 25-30 inch trace |
| 8 | R | 1 | 0000 1111 = 0x0F | 10.2 | 13.8 | 16.7 | 17.0 | 8m, 30awg cable |
| 9 | Float | 0 | 0101 0101 = 0x55 | 8.5 | 12.6 | 17.5 | 20.7 | > 8m cable |
| 10 | Float | R | 0001 1111 = 0x1F | 11.7 | 16.2 | 20.3 | 21.8 | |
| 11 | Float | Float | 0010 1111 = 0x2F | 13.2 | 18.3 | 22.8 | 23.6 | |
| 12 | Float | 1 | 0011 1111 = 0x3F | 14.4 | 19.8 | 24.2 | 24.7 | |
| 13 | 1 | 0 | 1010 1010 = 0xAA | 14.4 | 20.5 | 26.4 | 28.0 | |
| 14 | 1 | R | 0111 1111 = 0x7F | 16.0 | 22.2 | 27.8 | 29.2 | |
| 15 | 1 | Float | 1011 1111 = 0xBF | 17.6 | 24.4 | 30.2 | 30.9 | |
| 16 | 1 | 1 | 1111 1111 = 0xFF | 18.7 | 25.8 | 31.6 | 31.9 |
(1) Cable and FR4 lengths are for reference only. FR4 lengths based on a 100 Ohm differential stripline with 5-mil traces and 8-mil trace separation. Optimal EQ setting should be determined via simulation and prototype verification.
Table 6. A-Channel Equalizer Settings
| Level | EQA1 | EQA0 | EQ – 8 bits [7:0] | dB at 1.5 GHz |
dB at 2.5 GHz |
dB at 4 GHz |
dB at 6 GHz |
Suggested Use(1) |
|---|---|---|---|---|---|---|---|---|
| 1 | N/A | 0 | xxxx xx00 = 0x00 | 2.5 | 3.5 | 3.8 | 3.1 | |
| 2 | N/A | R | xxxx xx01 = 0x01 | 3.8 | 5.4 | 6.7 | 6.7 | |
| 3 | N/A | Float | xxxx xx10 = 0x02 | 5.0 | 7.0 | 8.4 | 8.4 | |
| 4 | N/A | 1 | xxxx xx11 = 0x03 | 5.9 | 8.0 | 9.3 | 9.1 | SAS-3 |
Table 7. B-Channel Output Voltage And De-Emphasis Settings
| Level | DEMB1 | DEMB0 | VOD Vp-p | DEM dB(1) | Inner Amplitude Vp-p |
Suggested Use(2) |
|---|---|---|---|---|---|---|
| 1 | 0 | 0 | 0.8 | 0 | 0.8 | FR4 <5 inch trace |
| 2 | 0 | R | 0.9 | 0 | 0.9 | FR4 <5 inch trace |
| 3 | 0 | Float | 0.9 | - 3.5 | 0.6 | FR4 10 inch trace |
| 4 | 0 | 1 | 1.0 | 0 | 1.0 | FR4 <5 inch trace |
| 5 | R | 0 | 1.0 | - 3.5 | 0.7 | FR4 10 inch trace |
| 6 | R | R | 1.0 | - 6 | 0.5 | FR4 15 inch trace |
| 7 | R | Float | 1.1 | 0 | 1.1 | FR4 <5 inch trace |
| 8 | R | 1 | 1.1 | - 3.5 | 0.7 | FR4 10 inch trace |
| 9 | Float | 0 | 1.1 | - 6 | 0.6 | FR4 15 inch trace |
| 10 | Float | R | 1.2 | 0 | 1.2 | FR4 <5 inch trace |
| 11 | Float | Float | 1.2 | - 3.5 | 0.8 | FR4 10 inch trace |
| 12 | Float | 1 | 1.2 | - 6 | 0.6 | FR4 15 inch trace |
| 13 | 1 | 0 | 1.3 | 0 | 1.3 | FR4 <5 inch trace |
| 14 | 1 | R | 1.3 | - 3.5 | 0.9 | FR4 10 inch trace |
| 15 | 1 | Float | 1.3 | - 6 | 0.7 | FR4 15 inch trace |
| 16 | 1 | 1 | 1.3 | - 9 | 0.5 | FR4 20 inch trace |
(1) The VOD output amplitude and DEM de-emphasis levels are set with the DEMB[1:0] Terminals.
(2) FR4 lengths are for reference only. FR4 lengths based on a 100 Ohm differential stripline with 5-mil traces and 8-mil trace separation. Optimal DEM settings should be determined via simulation and prototype verification.
Table 8. A-Channel Output Voltage And De-Emphasis Settings
| Level | DEMA1 | DEMA0 | VID Vp-p | DEM Setting(1) | VOD Vp-p |
|---|---|---|---|---|---|
| 1 | 0 | 0 | 1.0 | 0 | 0.70 |
| 2 | 0 | R | 1.0 | 0 | 0.78 |
| 4 | 0 | 1 | 1.0 | 0 | 0.83 |
| 7 | R | Float | 1.0 | 0 | 0.88 |
| 10 | Float | R | 1.0 | 0 | 0.91 |
| 13 | 1 | 0 | 1.0 | 0 | 1.00 |
(1) The VOD output amplitude is set with the DEMA[1:0] Terminals. For SAS-3 operation the DEM level is typically left at 0 dB (SMBus control = 000'b) in order to keep the output dynamic range as large as possible. DEM settings other than 0 dB or 000'b will decrease the output dynamic range and act to limit the OUTA VOD. When operating in Terminal Mode in a SAS3 environment it is recommended to use DEMA[1:0] = 10'b.
7.6 Programming
The DS125BR401A device supports reading directly from an external EEPROM device by implementing SMBus Master mode. When using the SMBus master mode, the DS125BR401A will read directly from specific location in the external EEPROM. When designing a system for using the external EEPROM, the user needs to follow these specific guidelines.
- Maximum EEPROM size is 8 kbits (1024 x 8-bit).
- Set ENSMB = Float — enable the SMBus master mode.
- The external EEPROM device address byte must be 0xA0'h and capable of 400 kHz operation at 2.5V and 3.3V supply.
- Set the AD[3:0] inputs for SMBus address byte. When the AD[3:0] = 0000'b, the device address byte is B0'h.
When tying multiple DS125BR401A devices to the SDA and SCL bus, use these guidelines to configure the devices.
- Use SMBus AD[3:0] address bits so that each device can loaded it's configuration from the EEPROM. Example below is for 4 devices. The first device in the sequence must be address 0xB0'h, subsequent devices must follow the address order listed below.
- U1: AD[3:0] = 0000 = 0xB0'h,
- U2: AD[3:0] = 0001 = 0xB2'h,
- U3: AD[3:0] = 0010 = 0xB4'h,
- U4: AD[3:0] = 0011 = 0xB6'h
- Use a pull-up resistor on SDA and SCL; value = 2k ohms
- Daisy-chain READEN# (Terminal 26) and ALL_DONE# (Terminal 27) from one device to the next device in the sequence so that they do not compete for the EEPROM at the same time.
- Tie READEN# of the 1st device in the chain (U1) to GND
- Tie ALL_DONE# of U1 to READEN# of U2
- Tie ALL_DONE# of U2 to READEN# of U3
- Tie ALL_DONE# of U3 to READEN# of U4
- Optional: Tie ALL_DONE# output of U4 to a LED to show the devices have been loaded successfully
Below is an example of a 2 kbits (256 x 8-bit) EEPROM in hex format for the DS125BR401A device. The first 3 bytes of the EEPROM always contain a header common and necessary to control initialization of all devices connected to the I2C bus. CRC enable flag to enable/disable CRC checking. If CRC checking is disabled, a fixed pattern (8’hA5) is written/read instead of the CRC byte from the CRC location, to simplify the control. There is a MAP bit to flag the presence of an address map that specifies the configuration data start in the EEPROM. If the MAP bit is not present the configuration data start address is derived from the DS125BR401A address and the configuration data size. A bit to indicate an EEPROM size > 256 bytes is necessary to properly address the EEPROM. There are 37 bytes of data size for each DS125BR401A device.
:2000000000001000000407002FAD4002FAD4002FAD4002FAD409805F5A8005F5A8005F5AD0
:200020008005F5A800005454000000000000000000000000000000000000000000000000F6
:20006000000000000000000000000000000000000000000000000000000000000000000080
:20008000000000000000000000000000000000000000000000000000000000000000000060
:2000A000000000000000000000000000000000000000000000000000000000000000000040
:2000C000000000000000000000000000000000000000000000000000000000000000000020
:2000E000000000000000000000000000000000000000000000000000000000000000000000
:200040000000000000000000000000000000000000000000000000000000000000000000A0
Note: The maximum EEPROM size supported is 8 kbits (1024 x 8 bits).
Table 9. EEPROM Register Map - Single Device With Default Value
| EEPROM Address Byte | Bit 7 | Bit 6 | Bit 5 | Bit 4 | Bit 3 | Bit 2 | Bit 1 | BIt 0 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Description | 0 | CRC EN | Address Map Present | EEPROM > 256 Bytes | RES | DEVICE COUNT[3] | DEVICE COUNT[2] | DEVICE COUNT[1] | DEVICE COUNT[0] | |
| Value | 00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 1 | RES | RES | RES | RES | RES | RES | RES | RES | |
| Value | 00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 2 | Max EEPROM Burst size[7] | Max EEPROM Burst size[6] | Max EEPROM Burst size[5] | Max EEPROM Burst size[4] | Max EEPROM Burst size[3] | Max EEPROM Burst size[2] | Max EEPROM Burst size[1] | Max EEPROM Burst size[0] | |
| Value | 00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 3 | PWDN_CH7 | PWDN_CH6 | PWDN_CH5 | PWDN_CH4 | PWDN_CH3 | PWDN_CH2 | PWDN_CH1 | PWDN_CH0 | |
| SMBus Register | 0x01 [7] | 0x01 [6] | 0x01 [5] | 0x01 [4] | 0x01 [3] | 0x01 [2] | 0x01 [1] | 0x01 [0] | ||
| Value | 00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 4 | Reserved | Reserved | Reserved | Reserved | Ovrd_PWDN | CH7_EQ_LIM | CH6_EQ_LIM | CH5_EQ_LIM | |
| SMBus Register | 0x02 [5] | 0x02 [4] | 0x02 [3] | 0x02 [2] | 0x02 [0] | 0x04 [7] | 0x04 [6] | 0x04 [5] | ||
| Value | 00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 5 | CH4_EQ_LIM | CH3_EQ_LIM | CH2_EQ_LIM | CH1_EQ_LIM | CH0_EQ_LIM | rxdet_btb_en | Ovrd_SD_TH | Reserved | |
| SMBus Register | 0x04 [4] | 0x04 [3] | 0x04 [2] | 0x04 [1] | 0x04 [0] | 0x06 [4] | 0x08 [6] | 0x08 [5] | ||
| Value | 04 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 | |
| Description | 6 | Ovrd_IDLE | Ovrd_RX_DET | Ovrd_MODE | Reserved | Reserved | rxdet_delay_2 | rxdet_delay_1 | rxdet_delay_0 | |
| SMBus Register | 0x08 [4] | 0x08 [3] | 0x08 [2] | 0x08 [1] | 0x08 [0] | 0x0B [6] | 0x0B [5] | 0x0B [4] | ||
| Value | 07 | 0 | 0 | 0 | 0 | 0 | 1 | 1 | 1 | |
| Description | 7 | rate_delay_3 | rate_delay_2 | rate_delay_1 | rate_delay_0 | CH0_Idle_auto | CH0_Idle_sel | CH0_Rxdet_1 | CH0_Rxdet_0 | |
| SMBus Register | 0x0B [3] | 0x0B [2] | 0x0B [1] | 0x0B [0] | 0x0E [5] | 0x0E [4] | 0x0E [3] | 0x0E [2] | ||
| Value | 00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 8 | CH0_EQ_7 | CH0_EQ_6 | CH0_EQ_5 | CH0_EQ_4 | CH0_EQ_3 | CH0_EQ_2 | CH0_EQ_1 | CH0_EQ_0 | |
| SMBus Register | 0x0F [7] | 0x0F [6] | 0x0F [5] | 0x0F [4] | 0x0F [3] | 0x0F [2] | 0x0F [1] | 0x0F [0] | ||
| Value | 2F | 0 | 0 | 1 | 0 | 1 | 1 | 1 | 1 | |
| Description | 9 | CH0_SCP | CH0_MODE | Reserved | Reserved | Reserved | CH0_VOD_2 | CH0_VOD_1 | CH0_VOD_0 | |
| SMBus Register | 0x10 [7] | 0x10 [6] | 0x10 [5] | 0x10 [4] | 0x10 [3] | 0x10 [2] | 0x10 [1] | 0x10 [0] | ||
| Value | AD | 1 | 0 | 1 | 0 | 1 | 1 | 0 | 1 | |
| Description | A | CH0_DEM_2 | CH0_DEM_1 | CH0_DEM_0 | Reserved | CH0_THa_1 | CH0_THa_0 | CH0_THd_1 | CH0_THd_0 | |
| SMBus Register | 0x11 [2] | 0x11 [1] | 0x11 [0] | 0x12 [7] | 0x12 [3] | 0x12 [2] | 0x12 [1] | 0x12 [0] | ||
| Value | 40 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | B | CH1_Idle_auto | CH1_Idle_sel | CH1_Rxdet_1 | CH1_Rxdet_0 | CH1_EQ_7 | CH1_EQ_6 | CH1_EQ_5 | CH1_EQ_4 | |
| SMBus Register | 0x15 [5] | 0x15 [4] | 0x15 [3] | 0x15 [2] | 0x16 [7] | 0x16 [6] | 0x16 [5] | 0x16 [4] | ||
| Value | 02 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | |
| Description | C | CH1_EQ_3 | CH1_EQ_2 | CH1_EQ_1 | CH1_EQ_0 | CH1_SCP | CH1_MODE | Reserved | Reserved | |
| SMBus Register | 0x16 [3] | 0x16 [2] | 0x16 [1] | 0x16 [0] | 0x17 [7] | 0x17 [6] | 0x17 [5] | 0x17 [4] | ||
| Value | FA | 1 | 1 | 1 | 1 | 1 | 0 | 1 | 0 | |
| Description | D | Reserved | CH1_VOD_2 | CH1_VOD_1 | CH1_VOD_0 | CH1_DEM_2 | CH1_DEM_1 | CH1_DEM_0 | Reserved | |
| SMBus Register | 0x17 [3] | 0x17 [2] | 0x17 [1] | 0x17 [0] | 0x18 [2] | 0x18 [1] | 0x18 [0] | 0x19 [7] | ||
| Value | D4 | 1 | 1 | 0 | 1 | 0 | 1 | 0 | 0 | |
| Description | E | CH1_THa_1 | CH1_THa_0 | CH1_THd_1 | CH1_THd_0 | CH2_Idle_auto | CH2_Idle_sel | CH2_Rxdet_1 | CH2_Rxdet_0 | |
| SMBus Register | 0x19 [3] | 0x19 [2] | 0x19 [1] | 0x19 [0] | 0x1C [5] | 0x1C [4] | 0x1C [3] | 0x1C [2] | ||
| Value | 00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | F | CH2_EQ_7 | CH2_EQ_6 | CH2_EQ_5 | CH2_EQ_4 | CH2_EQ_3 | CH2_EQ_2 | CH2_EQ_1 | CH2_EQ_0 | |
| SMBus Register | 0x1D [7] | 0x1D [6] | 0x1D [5] | 0x1D [4] | 0x1D [3] | 0x1D [2] | 0x1D [1] | 0x1D [0] | ||
| Value | 2F | 0 | 0 | 1 | 0 | 1 | 1 | 1 | 1 | |
| Description | 10 | CH2_SCP | CH2_MODE | Reserved | Reserved | Reserved | CH2_VOD_2 | CH2_VOD_1 | CH2_VOD_0 | |
| SMBus Register | 0x1E [7] | 0x1E [6] | 0x1E [5] | 0x1E [4] | 0x1E [3] | 0x1E [2] | 0x1E [1] | 0x1E [0] | ||
| Value | AD | 1 | 0 | 1 | 0 | 1 | 1 | 0 | 1 | |
| Description | 11 | CH2_DEM_2 | CH2_DEM_1 | CH2_DEM_0 | Reserved | CH2_THa_1 | CH2_THa_0 | CH2_THd_1 | CH2_THd_0 | |
| SMBus Register | 0x1F [2] | 0x1F [1] | 0x1F [0] | 0x20 [7] | 0x20 [3] | 0x20 [2] | 0x20 [1] | 0x20 [0] | ||
| Value | 40 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 12 | CH3_Idle_auto | CH3_Idle_sel | CH3_Rxdet_1 | CH3_Rxdet_0 | CH3_EQ_7 | CH3_EQ_6 | CH3_EQ_5 | CH3_EQ_4 | |
| SMBus Register | 0x23 [5] | 0x23 [4] | 0x23 [3] | 0x23 [2] | 0x24 [7] | 0x24 [6] | 0x24 [5] | 0x24 [4] | ||
| Value | 02 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | |
| Description | 13 | CH3_EQ_3 | CH3_EQ_2 | CH3_EQ_1 | CH3_EQ_0 | CH3_SCP | CH3_MODE | Reserved | Reserved | |
| SMBus Register | 0x24 [3] | 0x24 [2] | 0x24 [1] | 0x24 [0] | 0x25 [7] | 0x25 [6] | 0x25 [5] | 0x25 [4] | ||
| Value | FA | 1 | 1 | 1 | 1 | 1 | 0 | 1 | 0 | |
| Description | 14 | Reserved | CH3_VOD_2 | CH3_VOD_1 | CH3_VOD_0 | CH3_DEM_2 | CH3_DEM_1 | CH3_DEM_0 | Reserved | |
| SMBus Register | 0x25 [3] | 0x25 [2] | 0x25 [1] | 0x25 [0] | 0x26 [2] | 0x26 [1] | 0x26 [0] | 0x27 [7] | ||
| Value | D4 | 1 | 1 | 0 | 1 | 0 | 1 | 0 | 0 | |
| Description | 15 | CH3_THa_1 | CH3_THa_0 | CH3_THd_1 | CH3_THd_0 | ovrd_fast_idle | hi_idle_th CH0-3 | hi_idle_thCH4-7 | fast_idle CH0-3 | |
| SMBus Register | 0x27 [3] | 0x27 [2] | 0x27 [1] | 0x27 [0] | 0x28 [6] | 0x28 [5] | 0x28 [4] | 0x28 [3] | ||
| Value | 09 | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 1 | |
| Description | 16 | fast_idle CH4-7 | low_gain CH0-3 | low_gain CH4-7 | CH4_Idle_auto | CH4_Idle_sel | CH4_Rxdet_1 | CH4_Rxdet_0 | Reserved | |
| SMBus Register | 0x28 [2] | 0x28 [1] | 0x28 [0] | 0x2B [5] | 0x2B [4] | 0x2B [3] | 0x2B [2] | 0x2C [7] | ||
| Value | 80 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 17 | Reserved | Reserved | Reserved | Reserved | Reserved | CH4_EQ_1 | CH4_EQ_0 | CH4_SCP | |
| SMBus Register | 0x2C [6] | 0x2C [5] | 0x2C [4] | 0x2C [3] | 0x2C [2] | 0x2C [1] | 0x2C [0] | 0x2D [7] | ||
| Value | 5F | 0 | 1 | 0 | 1 | 1 | 1 | 1 | 1 | |
| Description | 18 | Reserved | Reserved | Reserved | Reserved | CH4_VOD_2 | CH4_VOD_1 | CH4_VOD_0 | CH4_DEM_2 | |
| SMBus Register | 0x2D [6] | 0x2D [5] | 0x2D [4] | 0x2D [3] | 0x2D [2] | 0x2D [1] | 0x2D [0] | 0x2E [2] | ||
| Value | 5A | 0 | 1 | 0 | 1 | 1 | 0 | 1 | 0 | |
| Description | 19 | CH4_DEM_1 | CH4_DEM_0 | Reserved | CH4_THa_1 | CH4_THa_0 | CH4_THd_1 | CH4_THd_0 | CH5_Idle_auto | |
| SMBus Register | 0x2E [1] | 0x2E [0] | 0x2F [7] | 0x2F [3] | 0x2F [2] | 0x2F [1] | 0x2F [0] | 0x32 [5] | ||
| Value | 80 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 1A | CH5_Idle_sel | CH5_Rxdet_1 | CH5_Rxdet_0 | Reserved | Reserved | Reserved | Reserved | Reserved | |
| SMBus Register | 0x32 [4] | 0x32 [3] | 0x32 [2] | 0x33 [7] | 0x33 [6] | 0x33 [5] | 0x33 [4] | 0x33 [3] | ||
| Value | 05 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 1 | |
| Description | 1B | Reserved | CH5_EQ_1 | CH5_EQ_0 | CH5_SCP | Reserved | Reserved | Reserved | Reserved | |
| SMBus Register | 0x33 [2] | 0x33 [1] | 0x33 [0] | 0x34 [7] | 0x34 [6] | 0x34 [5] | 0x34 [4] | 0x34 [3] | ||
| Value | F5 | 1 | 1 | 1 | 1 | 0 | 1 | 0 | 1 | |
| Description | 1C | CH5_VOD_2 | CH5_VOD_1 | CH5_VOD_0 | CH5_DEM_2 | CH5_DEM_1 | CH5_DEM_0 | Reserved | CH5_THa_1 | |
| SMBus Register | 0x34 [2] | 0x34 [1] | 0x34 [0] | 0x35 [2] | 0x35 [1] | 0x35 [0] | 0x36 [7] | 0x36 [3] | ||
| Value | A8 | 1 | 0 | 1 | 0 | 1 | 0 | 0 | 0 | |
| Description | 1D | CH5_THa_0 | CH5_THd_1 | CH5_THd_0 | CH6_Idle_auto | CH6_Idle_sel | CH6_Rxdet_1 | CH6_Rxdet_0 | Reserved | |
| SMBus Register | 0x36 [2] | 0x36 [1] | 0x36 [0] | 0x39 [5] | 0x39 [4] | 0x39 [3] | 0x39 [2] | 0x3A [7] | ||
| Value | 00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 1E | Reserved | Reserved | Reserved | Reserved | Reserved | CH6_EQ_1 | CH6_EQ_0 | CH6_SCP | |
| SMBus Register | 0x3A [6] | 0x3A [5] | 0x3A [4] | 0x3A [3] | 0x3A [2] | 0x3A [1] | 0x3A [0] | 0x3B [7] | ||
| Value | 5F | 0 | 1 | 0 | 1 | 1 | 1 | 1 | 1 | |
| Description | 1F | Reserved | Reserved | Reserved | Reserved | CH6_VOD_2 | CH6_VOD_1 | CH6_VOD_0 | CH6_DEM_2 | |
| SMBus Register | 0x3B [6] | 0x3B [5] | 0x3B [4] | 0x3B [3] | 0x3B [2] | 0x3B [1] | 0x3B [0] | 0x3C [2] | ||
| Value | 5A | 0 | 1 | 0 | 1 | 1 | 0 | 1 | 0 | |
| Description | 20 | CH6_DEM_1 | CH6_DEM_0 | Reserved | CH6_THa_1 | CH6_THa_0 | CH6_THd_1 | CH6_THd_0 | CH7_Idle_auto | |
| SMBus Register | 0x3C [1] | 0x3C [0] | 0x3D [7] | 0x3D [3] | 0x3D [2] | 0x3D [1] | 0x3D [0] | 0x40 [5] | ||
| Value | 80 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 21 | CH7_Idle_sel | CH7_Rxdet_1 | CH7_Rxdet_0 | Reserved | Reserved | Reserved | Reserved | Reserved | |
| SMBus Register | 0x40 [4] | 0x40 [3] | 0x40 [2] | 0x41 [7] | 0x41 [6] | 0x41 [5] | 0x41 [4] | 0x41 [3] | ||
| Value | 05 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 1 | |
| Description | 22 | Reserved | CH7_EQ_1 | CH7_EQ_0 | CH7_SCP | Reserved | Reserved | Reserved | Reserved | |
| SMBus Register | 0x41 [2] | 0x41 [1] | 0x41 [0] | 0x42 [7] | 0x42 [6] | 0x42 [5] | 0x42 [4] | 0x42 [3] | ||
| Value | F5 | 1 | 1 | 1 | 1 | 0 | 1 | 0 | 1 | |
| Description | 23 | CH7_VOD_2 | CH7_VOD_1 | CH7_VOD_0 | CH7_DEM_2 | CH7_DEM_1 | CH7_DEM_0 | Reserved | CH7_THa_1 | |
| SMBus Register | 0x42 [2] | 0x42 [1] | 0x42 [0] | 0x43 [2] | 0x43 [1] | 0x43 [0] | 0x44 [7] | 0x44 [3] | ||
| Value | A8 | 1 | 0 | 1 | 0 | 1 | 0 | 0 | 0 | |
| Description | 24 | CH7_THa_0 | CH7_THd_1 | CH7_THd_0 | Reserved | Reserved | Reserved | Reserved | Reserved | |
| SMBus Register | 0x44 [2] | 0x44 [1] | 0x44 [0] | 0x47 [3] | 0x47 [2] | 0x47 [2] | 0x47 [0] | 0x48 [7] | ||
| Value | 00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 25 | Reserved | Reserved | Reserved | Reserved | Reserved | Reserved | Reserved | Reserved | |
| SMBus Register | 0x48 [6] | 0x4C [7] | 0x4C [6] | 0x4C [5] | 0x4C [4] | 0x4C [3] | 0x4C [0] | 0x59 [0] | ||
| Value | 00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 26 | Reserved | Reserved | Reserved | Reserved | Reserved | Reserved | Reserved | Reserved | |
| SMBus Register | 0x5A [7] | 0x5A [6] | 0x5A [5] | 0x5A [4] | 0x5A [3] | 0x5A [2] | 0x5A [1] | 0x5A [0] | ||
| Value | 54 | 0 | 1 | 0 | 1 | 0 | 1 | 0 | 0 | |
| Description | 27 | Reserved | Reserved | Reserved | Reserved | Reserved | Reserved | Reserved | Reserved | |
| SMBus Register | 0x5B [7] | 0x5B [6] | 0x5B [5] | 0x5B [4] | 0x5B [3] | 0x5B [2] | 0x5B [1] | 0x5B [0] | ||
| Value | 54 | 0 | 1 | 0 | 1 | 0 | 1 | 0 | 0 | |
Table 10. Example Of EEPROM For Four Devices Using Two Address Maps
| EEPROM Address | Address (Hex) | EEPROM Data | Comments |
|---|---|---|---|
| 0 | 00 | 0x43 | CRC_EN = 0, Address Map = 1, >256 bytes = 0, Device Count[3:0] = 3 |
| 1 | 01 | 0x00 | |
| 2 | 02 | 0x08 | EEPROM Burst Size |
| 3 | 03 | 0x00 | CRC not used |
| 4 | 04 | 0x0B | Device 0 Address Location |
| 5 | 05 | 0x00 | CRC not used |
| 6 | 06 | 0x0B | Device 1 Address Location |
| 7 | 07 | 0x00 | CRC not used |
| 8 | 08 | 0x30 | Device 2 Address Location |
| 9 | 09 | 0x00 | CRC not used |
| 10 | 0A | 0x30 | Device 3 Address Location |
| 11 | 0B | 0x00 | Begin Device 0, 1 - Address Offset 3 |
| 12 | 0C | 0x00 | |
| 13 | 0D | 0x04 | |
| 14 | 0E | 0x07 | |
| 15 | 0F | 0x00 | |
| 16 | 10 | 0x01 | EQ CHB0 = 01 |
| 17 | 11 | 0xAD | VOD CHB0 = 1.2V |
| 18 | 12 | 0x00 | DEM CHB0 = 0 (0dB) |
| 19 | 13 | 0x00 | EQ CHB1 = 01 |
| 20 | 14 | 0x1A | VOD CHB1 = 1.2V |
| 21 | 15 | 0xD0 | DEM CHB1 = 0 (0dB) |
| 22 | 16 | 0x00 | |
| 23 | 17 | 0x01 | EQ CHB2 = 01 |
| 24 | 18 | 0xAD | VOD CHB2 = 1.2V |
| 25 | 19 | 0x00 | DEM CHB2 = 0 (0dB) |
| 26 | 1A | 0x00 | EQ CHB3 = 01 |
| 27 | 1B | 0x1A | VOD CHB3 = 1.2V |
| 28 | 1C | 0xD0 | DEM CHB3 = 0 (0dB) |
| 29 | 1D | 0x09 | Signal Detect Control |
| 30 | 1E | 0x80 | Signal Detect Control |
| 31 | 1F | 0x07 | EQ CHA0 = 03 |
| 32 | 20 | 0x5E | VOD CHA0 = 111'b |
| 33 | 21 | 0x00 | DEM CHA0 = 0 (0dB) |
| 34 | 22 | 0x00 | EQ CHA1 = 03 |
| 35 | 23 | 0x75 | VOD CHA1 = 111'b |
| 36 | 24 | 0xE0 | DEM CHA1 = 0 (0dB) |
| 37 | 25 | 0x00 | |
| 38 | 26 | 0x07 | EQ CHA2 = 03 |
| 39 | 27 | 0x5E | VOD CHA2 = 1.4V |
| 40 | 28 | 0x00 | DEM CHA2 = 0 (0dB) |
| 41 | 29 | 0x00 | EQ CHA3 = 03 |
| 42 | 2A | 0x75 | VOD CHA3 = 111'b |
| 43 | 2B | 0xE0 | DEM CHA3 = 0 (0dB) |
| 44 | 2C | 0x00 | |
| 45 | 2D | 0x00 | |
| 46 | 2E | 0x54 | |
| 47 | 2F | 0x54 | End Device 0, 1 - Address Offset 39 |
| 48 | 30 | 0x00 | Begin Device 2, 3 - Address Offset 3 |
| 49 | 31 | 0x00 | |
| 50 | 32 | 0x04 | |
| 51 | 33 | 0x07 | |
| 52 | 34 | 0x00 | |
| 53 | 35 | 0x01 | EQ CHB0 = 01 |
| 54 | 36 | 0xAB | VOD CHB0 = 1.0V |
| 55 | 37 | 0x00 | DEM CHB0 = 0 (0dB) |
| 56 | 38 | 0x00 | EQ CHB1 = 01 |
| 57 | 39 | 0x1A | VOD CHB1 = 1.0V |
| 58 | 3A | 0xB0 | DEM CHB1 = 0 (0dB) |
| 59 | 3B | 0x00 | |
| 60 | 3C | 0x01 | EQ CHB2 = 01 |
| 61 | 3D | 0xAB | VOD CHB2 = 1.0V |
| 62 | 3E | 0x00 | DEM CHB2 = 0 (0dB) |
| 63 | 3F | 0x00 | EQ CHB3 = 01 |
| 64 | 40 | 0x1A | VOD CHB3 = 1.0V |
| 65 | 41 | 0xB0 | DEM CHB3 = 0 (0dB) |
| 66 | 42 | 0x09 | Signal Detect Control |
| 67 | 43 | 0x80 | Signal Detect Control |
| 68 | 44 | 0x03 | EQ CHA0 = 01 |
| 69 | 45 | 0x5E | VOD CHA0 = 111'b |
| 70 | 46 | 0x00 | DEM CHA0 = 0 (0dB) |
| 71 | 47 | 0x00 | EQ CHA1 = 01 |
| 72 | 48 | 0x35 | VOD CHA1 = 111'b |
| 73 | 49 | 0xE0 | DEM CHA1 = 0 (0dB) |
| 74 | 4A | 0x00 | |
| 75 | 4B | 0x03 | EQ CHA2 = 01 |
| 76 | 4C | 0x5E | VOD CHA2 = 111'b |
| 77 | 4D | 0x00 | DEM CHA2 = 0 (0dB) |
| 78 | 4E | 0x00 | EQ CHA3 = 01 |
| 79 | 4F | 0x35 | VOD CHA3 = 111'b |
| 80 | 50 | 0xE0 | DEM CHA3 = 0 (0dB) |
| 81 | 51 | 0x00 | |
| 82 | 52 | 0x00 | |
| 83 | 53 | 0x54 | |
| 84 | 54 | 0x54 | End Device 2, 3 - Address Offset 39 |
Note: CRC_EN = 0, Address Map = 1, >256 byte = 0, Device Count[3:0] = 3. Multiple devices can point to the same address map. Maximum EEPROM size is 8 kbits (1024 x 8-bits).
7.7 Register Maps
The System Management Bus interface is compatible to SMBus 2.0 physical layer specification. ENSMB = 1kΩ to VDD to enable SMBus slave mode and allow access to the configuration registers.
The DS125BR401A has the AD[3:0] inputs in SMBus mode. These Terminals are the user set SMBus slave address inputs. The AD[3:0] Terminals have internal pull-down. When left floating or pulled low the AD[3:0] = 0000'b, the device default address byte is B0'h. Based on the SMBus 2.0 specification, the DS125BR401A has a 7-bit slave address. The LSB is set to 0'b (for a WRITE). The device supports up to 16 address byte, which can be set with the AD[3:0] inputs. Below are the 16 addresses.
Table 11. Device Slave Address Bytes
| AD[3:0] Settings | Address Bytes (HEX) |
|---|---|
| 0000 | B0 |
| 0001 | B2 |
| 0010 | B4 |
| 0011 | B6 |
| 0100 | B8 |
| 0101 | BA |
| 0110 | BC |
| 0111 | BE |
| 1000 | C0 |
| 1001 | C2 |
| 1010 | C4 |
| 1011 | C6 |
| 1100 | C8 |
| 1101 | CA |
| 1110 | CC |
| 1111 | CE |
The SDA, SCL Terminals are 3.3V tolerant, but are not 5V tolerant. External pull-up resistor is required on the SDA. The resistor value can be from 1 kΩ to 5 kΩ depending on the voltage, loading and speed. The SCL may also require an external pull-up resistor and it depends on the Host that drives the bus.
7.7.1 Transfer Of Data Via The SMBus
During normal operation the data on SDA must be stable during the time when SCL is High.
There are three unique states for the SMBus:
START: A High-to-Low transition on SDA while SCL is High indicates a message START condition.
STOP: A Low-to-High transition on SDA while SCL is High indicates a message STOP condition.
IDLE: If SCL and SDA are both High for a time exceeding tBUF from the last detected STOP condition or if they are High for a total exceeding the maximum specification for tHIGH then the bus will transfer to the IDLE state.
7.7.2 SMBus Transactions
The device supports WRITE and READ transactions. See Table 12 for register address, type (Read/Write, Read Only), default value and function information.
7.7.3 Writing a Register
To write a register, the following protocol is used (see SMBus 2.0 specification).
- The Host drives a START condition, the 7-bit SMBus address, and a “0” indicating a WRITE.
- The Device (Slave) drives the ACK bit (“0”).
- The Host drives the 8-bit Register Address.
- The Device drives an ACK bit (“0”).
- The Host drive the 8-bit data byte.
- The Device drives an ACK bit (“0”).
- The Host drives a STOP condition.
The WRITE transaction is completed, the bus goes IDLE and communication with other SMBus devices may now occur.
7.7.4 Reading a Register
To read a register, the following protocol is used (see SMBus 2.0 specification).
- The Host drives a START condition, the 7-bit SMBus address, and a “0” indicating a WRITE.
- The Device (Slave) drives the ACK bit (“0”).
- The Host drives the 8-bit Register Address.
- The Device drives an ACK bit (“0”).
- The Host drives a START condition.
- The Host drives the 7-bit SMBus Address, and a “1” indicating a READ.
- The Device drives an ACK bit “0”.
- The Device drives the 8-bit data value (register contents).
- The Host drives a NACK bit “1”indicating end of the READ transfer.
- The Host drives a STOP condition.
The READ transaction is completed, the bus goes IDLE and communication with other SMBus devices may now occur.
Table 12 for more information.
Table 12. SMBus Slave Mode Register Map
| Address | Register Name | Bit | Field | Type | Default | Description |
|---|---|---|---|---|---|---|
| 0x00 | Observation | 7 | Reserved | R/W | 0x00 | Set bit to 0. |
| 6:3 | Address Bit AD[3:0] |
R | Observation of AD[3:0] bits [6]: AD3 [5]: AD2 [4]: AD1 [3]: AD0 |
|||
| 2 | EEPROM Read Done | R | 1: Device completed the read from external EEPROM. | |||
| 1 | Reserved | R/W | Set bit to 0. | |||
| 0 | Reserved | R/W | Set bit to 0. | |||
| 0x01 | PWDN Channels | 7:0 | PWDN CHx | R/W | 0x00 | Power Down per Channel [7]: CH7 – CHA_3 [6]: CH6 – CHA_2 [5]: CH5 – CHA_1 [4]: CH4 – CHA_0 [3]: CH3 – CHB_3 [2]: CH2 – CHB_2 [1]: CH1 – CHB_1 [0]: CH0 – CHB_0 00'h = all channels enabled FF'h = all channels disabled Note: override PWDN Terminal. |
| 0x02 | Override PWDN | 7:1 | Reserved | R/W | 0x00 | Set bits to 0. |
| 0 | Override PWDN Terminal |
1: Block PWDN Terminal control 0: Allow PWDN Terminal control |
||||
| 0x04 | EQ Limiting | 7:0 | EQ Control | R/W | 0x00 | CH3 - CH0 EQ Limiting Control [7]: CH7 – CHA_3 (linear only) [6]: CH6 – CHA_2 (linear only) [5]: CH5 – CHA_1 (linear only) [4]: CH4 – CHA_0 (linear only) [3]: CH3 – CHB_3 [2]: CH2 – CHB_2 [1]: CH1 – CHB_1 [0]: CH0 – CHB_0 00'h = all channels linear EQ 0F'h = B-channels limiting EQ Note: These bits do not connect to the A-Channel |
| 0x05 | Slave Mode CRC bits | 7:0 | CRC bits | R/W | 0x00 | CRC bits [7:0] |
| 0x06 | Slave Register Control | 7:5 | Reserved | R/W | 0x10 | Set bits to 0. |
| 4 | Reserved | Set bit to 1. | ||||
| 3 | Register Enable | 1: Enables high speed channel control via SMBus registers without CRC 0: Channel control via SMBus registers requires correct CRC in Reg 0x05 Note: In order to change VOD, DEM and EQ of the channels in slave mode without also setting CRC each time, set this bit to 1. |
||||
| 2:0 | Reserved | Set bits to 0. | ||||
| 0x07 | Digital Reset and Control | 7 | Reserved | R/W | 0x01 | Set bit to 0. |
| 6 | Reset Registers | Self clearing reset for SMBus registers. Writing a [1] will return register settings to default values. | ||||
| 5 | Reset SMBus Master | Self clearing reset to SMBus master state machine | ||||
| 4:0 | Reserved | Set bits to 0 0001'b. | ||||
| 0x08 | Override Terminal Control |
7 | Reserved | R/W | 0x00 | Set bit to 0. |
| 6 | Override SD_TH | 1: Block SD_TH Terminal control 0: Allow SD_TH Terminal control |
||||
| 5 | Reserved | Set bit to 0. | ||||
| 4 | Override IDLE | 1: IDLE control by registers 0: IDLE control by signal detect Note: These bits do not connect to the A-Channel |
||||
| 3 | Override RXDET | 1: Block RXDET Terminal control 0: Allow RXDET Terminal control |
||||
| 2 | Override MODE_B | 1: Block MODE_B Terminal control 0: Allow MODE_B Terminal control |
||||
| 1 | Reserved | Set bit to 0. | ||||
| 0 | Reserved | Set bit to 0. | ||||
| 0x0A | Signal Detect Monitor | 7:0 | IDLE Status | R | 0x00 | CH7 - CH0 Internal IDLE indicator [7]: CH7 – CHA_3 [6]: CH6 – CHA_2 [5]: CH5 – CHA_1 [4]: CH4 – CHA_0 [3]: CH3 – CHB_3 [2]: CH2 – CHB_2 [1]: CH1 – CHB_1 [0]: CH0 – CHB_0 0'b = Signal Detected at input 1'b = Signal Detected at input Note: These bits only function when MODE_B terminal = FLOAT |
| 0x0E | CH0 - CHB0 IDLE, RXDET |
7:6 | Reserved | R/W | 0x00 | Set bits to 0. |
| 5 | IDLE_AUTO | 1: Automatic IDLE detect 0: Allow IDLE_SEL control in bit 4 Note: override IDLE control. |
||||
| 4 | IDLE_SEL | 1: Output is MUTED (electrical idle) 0: Output is ON Note: override IDLE control. |
||||
| 3:2 | RXDET | 00: Input is high-z impedance 01: Auto RX-Detect, outputs test every 12 ms for 600 ms (50 times) then stops; termination is high-z until detection; once detected input termination is 50 Ω 10: Auto RX-Detect, outputs test every 12 ms until detection occurs; termination is high-z until detection; once detected input termination is 50 Ω 11: Input is 50 Ω Note: override RXDET Terminal. |
||||
| 1:0 | Reserved | Set bits to 0. | ||||
| 0x0F | CH0 - CHB0 EQ |
7:0 | EQ Control | R/W | 0x2F | INB_0 EQ Control - total of 256 levels. See Table 5. |
| 0x10 | CH0 - CHB_0 VOD |
7 | Short Circuit Protection | R/W | 0xAD | 1: Enable the short circuit protection 0: Disable the short circuit protection |
| 6 | MODE_SEL | 1: PCIe Gen 1/2 0: SAS-3 and PCIe Gen 3 Note: override the MODE_B Terminal. |
||||
| 5:3 | Reserved | Set bits to default value - 101. | ||||
| 2:0 | VOD Control | OUTB_0 VOD Control 000: 0.7 V 001: 0.8 V 010: 0.9 V 011: 1.0 V 100: 1.1 V 101: 1.2 V (default) 110: 1.3 V 111: 1.4 V |
||||
| 0x11 | CH0 - CHB_0 DEM |
7 | RXDET STATUS | R | 0x02 | Observation bit for RXDET CH0 - CHB_0. 1: RX = detected 0: RX = not detected |
| 6:5 | MODE_DET STATUS | R | Observation bit for MODE_DET CH0 - CHB_0. 00: GEN1 (2.5G data-rate) 01: GEN2 (5G data-rate) 11: GEN3 (8G+ data-rate) Note: Only functions when MODE_B Terminal = Automatic |
|||
| 4:3 | Reserved | R/W | Set bits to 0. | |||
| 2:0 | DEM Control | R/W | OUTB_0 DEM Control 000: 0 dB 001: –1.5 dB 010: –3.5 dB (default) 011: –5 dB 100: –6 dB 101: –8 dB 110: –9 dB 111: –12 dB |
|||
| 0x12 | CH0 - CHB_0 SD Threshold |
7:4 | Reserved | R/W | 0x00 | Set bits to 0. |
| 3:2 | IDLE tha | Assert threshold (1010 pattern 12 Gbps) 00 = 50 mVp-p (default) 01 = 40 mVp-p 10 = 75 mVp-p 11 = 58 mVp-p Note: override the SD_TH Terminal using 0x08[6]. |
||||
| 1:0 | IDLE thd | De-assert threshold (1010 pattern 12 Gbps) 00 = 37 mVp-p (default) 01 = 22 mVp-p 10 = 55 mVp-p 11 = 45 mVp-p Note: override the SD_TH Terminal using 0x08[6]. |
||||
| 0x15 | CH1 - CHB_1 IDLE, RXDET |
7:6 | Reserved | R/W | 0x00 | Set bits to 0. |
| 5 | IDLE_AUTO | 1: Automatic IDLE detect 0: Allow IDLE_SEL control in bit 4 Note: override IDLE control. |
||||
| 4 | IDLE_SEL | 1: Output is MUTED (electrical idle) 0: Output is ON Note: override IDLE control. |
||||
| 3:2 | RXDET | 00: Input is high-z impedance 01: Auto RX-Detect, outputs test every 12 ms for 600 ms (50 times) then stops; termination is high-z until detection; once detected input termination is 50 Ω 10: Auto RX-Detect, outputs test every 12 ms until detection occurs; termination is high-z until detection; once detected input termination is 50 Ω 11: Input is 50 Ω Note: override RXDET Terminal. |
||||
| 1:0 | Reserved | Set bits to 0. | ||||
| 0x16 | CH1 - CHB_1 EQ |
7:0 | EQ Control | R/W | 0x2F | INB_1 EQ Control - total of 256 levels. See Table 5. |
| 0x17 | CH1 - CHB_1 VOD |
7 | Short Circuit Protection | R/W | 0xAD | 1: Enable the short circuit protection 0: Disable the short circuit protection |
| 6 | MODE_SEL | 1: Gen 1/2, 0: SAS-3 and PCIe Gen 3 Note: override the MODE_B Terminal. |
||||
| 5:3 | Reserved | Set bits to default value - 101. | ||||
| 2:0 | VOD Control | OUTB_1 VOD Control 000: 0.7 V 001: 0.8 V 010: 0.9 V 011: 1.0 V 100: 1.1 V 101: 1.2 V (default) 110: 1.3 V 111: 1.4 V |
||||
| 0x18 | CH1 - CHB_1 DEM |
7 | RXDET STATUS | R | 0x02 | Observation bit for RXDET CH1 - CHB_1. 1: RX = detected 0: RX = not detected |
| 6:5 | MODE_DET STATUS | R | Observation bit for MODE_DET CH1 - CHB_1. 00: GEN1 (2.5G data-rate) 01: GEN2 (5G data-rate) 11: GEN3 (8G+ data-rate) Note: Only functions when MODE_B Terminal = Automatic |
|||
| 4:3 | Reserved | R/W | Set bits to 0. | |||
| 2:0 | DEM Control | R/W | OUTB_1 DEM Control 000: 0 dB 001: –1.5 dB 010: –3.5 dB (default) 011: –5 dB 100: –6 dB 101: –8 dB 110: –9 dB 111: –12 dB |
|||
| 0x19 | CH1 - CHB_1 SD Threshold |
7:4 | Reserved | R/W | 0x00 | Set bits to 0. |
| 3:2 | IDLE tha | Assert threshold (1010 pattern 12 Gbps) 00 = 50 mVp-p (default) 01 = 40 mVp-p 10 = 75 mVp-p 11 = 58 mVp-p Note: override the SD_TH Terminal using 0x08[6]. |
||||
| 1:0 | IDLE thd | De-assert threshold (1010 pattern 12 Gbps) 00 = 37 mVp-p (default) 01 = 22 mVp-p 10 = 55 mVp-p 11 = 45 mVp-p Note: override the SD_TH Terminal using 0x08[6]. |
||||
| 0x1C | CH2 - CHB_2 IDLE, RXDET |
7:6 | Reserved | R/W | 0x00 | Set bits to 0. |
| 5 | IDLE_AUTO | 1: Automatic IDLE detect 0: Allow IDLE_SEL control in bit 4 Note: override IDLE control. |
||||
| 4 | IDLE_SEL | 1: Output is MUTED (electrical idle) 0: Output is ON Note: override IDLE control. |
||||
| 3:2 | RXDET | 00: Input is high-z impedance 01: Auto RX-Detect, outputs test every 12 ms for 600 ms (50 times) then stops; termination is high-z until detection; once detected input termination is 50 Ω 10: Auto RX-Detect, outputs test every 12 ms until detection occurs; termination is high-z until detection; once detected input termination is 50 Ω 11: Input is 50 Ω Note: override RXDET Terminal. |
||||
| 1:0 | Reserved | Set bits to 0. | ||||
| 0x1D | CH2 - CHB2 EQ |
7:0 | EQ Control | R/W | 0x2F | INB_2 EQ Control - total of 256 levels. See Table 5. |
| 0x1E | CH2 - CHB2 VOD |
7 | Short Circuit Protection | R/W | 0xAD | 1: Enable the short circuit protection 0: Disable the short circuit protection |
| 6 | MODE_SEL | 1: Gen 1/2, 0: SAS-3 and PCIe Gen 3 Note: override the MODE_B Terminal. |
||||
| 5:3 | Reserved | Set bits to default value - 101. | ||||
| 2:0 | VOD Control | OUTB_2 VOD Control 000: 0.7 V 001: 0.8 V 010: 0.9 V 011: 1.0 V 100: 1.1 V 101: 1.2 V (default) 110: 1.3 V 111: 1.4 V |
||||
| 0x1F | CH2 - CHB_2 DEM |
7 | RXDET STATUS | R | 0x02 | Observation bit for RXDET CH2 - CHB_2. 1: RX = detected 0: RX = not detected |
| 6:5 | MODE_DET STATUS | R | Observation bit for MODE_DET CH2 - CHB_2. 00: GEN1 (2.5G data-rate) 01: GEN2 (5G data-rate) 11: GEN3 (8G+ data-rate) Note: Only functions when MODE_B Terminal = Automatic |
|||
| 4:3 | Reserved | R/W | Set bits to 0. | |||
| 2:0 | DEM Control | R/W | OUTB_2 DEM Control 000: 0 dB 001: –1.5 dB 010: –3.5 dB (default) 011: –5 dB 100: –6 dB 101: –8 dB 110: –9 dB 111: –12 dB |
|||
| 0x20 | CH2 - CHB_2 SD Threshold |
7:4 | Reserved | R/W | 0x00 | Set bits to 0. |
| 3:2 | IDLE tha | Assert threshold (1010 pattern 12 Gbps) 00 = 50 mVp-p (default) 01 = 40 mVp-p 10 = 75 mVp-p 11 = 58 mVp-p Note: override the SD_TH Terminal using 0x08[6]. |
||||
| 1:0 | IDLE thd | De-assert threshold (1010 pattern 12 Gbps) 00 = 37 mVp-p (default) 01 = 22 mVp-p 10 = 55 mVp-p 11 = 45 mVp-p Note: override the SD_TH Terminal using 0x08[6]. |
||||
| 0x23 | CH3 - CHB_3 IDLE, RXDET |
7:6 | Reserved | R/W | 0x00 | Set bits to 0. |
| 5 | IDLE_AUTO | 1: Automatic IDLE detect 0: Allow IDLE_SEL control in bit 4 Note: override IDLE control. |
||||
| 4 | IDLE_SEL | 1: Output is MUTED (electrical idle) 0: Output is ON Note: override IDLE control. |
||||
| 3:2 | RXDET | 00: Input is high-z impedance 01: Auto RX-Detect, outputs test every 12 ms for 600 ms (50 times) then stops; termination is high-z until detection; once detected input termination is 50 Ω 10: Auto RX-Detect, outputs test every 12 ms until detection occurs; termination is high-z until detection; once detected input termination is 50 Ω 11: Input is 50 Ω Note: override RXDET Terminal. |
||||
| 1:0 | Reserved | Set bits to 0. | ||||
| 0x24 | CH3 - CHB_3 EQ |
7:0 | EQ Control | R/W | 0x2F | INB_3 EQ Control - total of 256 levels. See Table 5. |
| 0x25 | CH3 - CHB_3 VOD |
7 | Short Circuit Protection | R/W | 0xAD | 1: Enable the short circuit protection 0: Disable the short circuit protection |
| 6 | MODE_SEL | 1: Gen 1/2, 0: SAS-3 and PCIe Gen 3 Note: override the MODE_B Terminal. |
||||
| 5:3 | Reserved | Set bits to default value - 101. | ||||
| 2:0 | VOD Control | OUTB_3 VOD Control 000: 0.7 V 001: 0.8 V 010: 0.9 V 011: 1.0 V 100: 1.1 V 101: 1.2 V (default) 110: 1.3 V 111: 1.4 V |
||||
| 0x26 | CH3 - CHB_3 DEM |
7 | RXDET STATUS | R | 0x02 | Observation bit for RXDET CH3 - CHB_3. 1: RX = detected 0: RX = not detected |
| 6:5 | MODE_DET STATUS | R | Observation bit for MODE_DET CH3 - CHB_3. 00: GEN1 (2.5G data-rate) 01: GEN2 (5G data-rate) 11: GEN3 (8G+ data-rate) Note: Only functions when MODE_B Terminal = Automatic |
|||
| 4:3 | Reserved | R/W | Set bits to 0. | |||
| 2:0 | DEM Control | R/W | OUTB_3 DEM Control 000: 0 dB 001: –1.5 dB 010: –3.5 dB (default) 011: –5 dB 100: –6 dB 101: –8 dB 110: –9 dB 111: –12 dB |
|||
| 0x27 | CH3 - CHB_3 SD Threshold |
7:4 | Reserved | R/W | 0x00 | Set bits to 0. |
| 3:2 | IDLE tha | Assert threshold (1010 pattern 12 Gbps) 00 = 50 mVp-p (default) 01 = 40 mVp-p 10 = 75 mVp-p 11 = 58 mVp-p Note: override the SD_TH Terminal using 0x08[6]. |
||||
| 1:0 | IDLE thd | De-assert threshold (1010 pattern 12 Gbps) 00 = 37 mVp-p (default) 01 = 22 mVp-p 10 = 55 mVp-p 11 = 45 mVp-p Note: override the SD_TH Terminal using 0x08[6]. |
||||
| 0x28 | Signal Detect Control | 7:6 | Reserved | R/W | 0x0C | Set bits to 0. |
| 5:4 | High IDLE | Enable higher range of Signal Detect Thresholds [5]: CH0 - CH3 [4]: CH4 - CH7 |
||||
| 3:2 | Fast IDLE | Enable Fast OOB response [3]: CH0 - CH3 [2]: CH4 - CH7 |
||||
| 1:0 | Reduced SD Gain | Enable reduced Signal Detect Gain [1]: CH0 - CH3 [0]: CH4 - CH7 |
||||
| 0x2B | CH4 - CHA_0 RXDET |
7:4 | Reserved | R/W | 0x00 | Set bits to 0. |
| 3:2 | RXDET | 00: Input is high-z impedance 01: Auto RX-Detect, outputs test every 12 ms for 600 ms (50 times) then stops; termination is high-z until detection; once detected input termination is 50 Ω 10: Auto RX-Detect, outputs test every 12 ms until detection occurs; termination is high-z until detection; once detected input termination is 50 Ω 11: Input is 50 Ω Note: override RXDET Terminal. |
||||
| 1:0 | Reserved | Set bits to 0. | ||||
| 0x2C | CH4 - CHA_0 EQ |
7:0 | EQ Control | R/W | 0x2F | INA_0 EQ Control - total of 4 levels. See Table 6. |
| 0x2D | CH4 - CHA_0 VOD |
7 | Short Circuit Protection | R/W | 0xAD | 1: Enable the short circuit protection 0: Disable the short circuit protection |
| 6 | Reserved | Set bit to 0. | ||||
| 5:3 | Reserved | Set bits to default value - 101. | ||||
| 2:0 | VOD Control | OUTA_0 VOD Control 000: 0.65 001: 0.70 010: 0.78 011: 0.83 100: 0.88 101: 0.91 (Default) 110: 1.00 111: 1.05 (Recommended for SAS) |
||||
| 0x2E | CH4 - CHA_0 DEM |
7 | RXDET STATUS | R | 0x02 | Observation bit for RXDET CH4 - CHA_0. 1: RX = detected 0: RX = not detected |
| 6:5 | MODE_DET STATUS | R | Observation bit for MODE_DET CH4 - CHA_0. 00: GEN1 (2.5G data-rate) 01: GEN2 (5G data-rate) 11: GEN3 (8G+ data-rate) Note: Only functions when MODE_B Terminal = Automatic |
|||
| 4:3 | Reserved | R/W | Set bits to 0. | |||
| 2:0 | DEM Control | R/W | OUTA_0 DEM Control (010'b Default) This control does not provide a DEM function for A-Channel outputs. Based on system interoperability testing it is recommended to set these bits to 000'b for SAS and PCIe applications. |
|||
| 0x2F | CH4 - CHA_0 SD Threshold |
7:4 | Reserved | R/W | 0x00 | Set bits to 0. |
| 3:2 | IDLE tha | Assert threshold (1010 pattern 12 Gbps) 00 = 50 mVp-p (default) 01 = 40 mVp-p 10 = 75 mVp-p 11 = 58 mVp-p Note: override the SD_TH Terminal using 0x08[6]. |
||||
| 1:0 | IDLE thd | De-assert threshold (1010 pattern 12 Gbps) 00 = 37 mVp-p (default) 01 = 22 mVp-p 10 = 55 mVp-p 11 = 45 mVp-p Note: override the SD_TH Terminal using 0x08[6]. |
||||
| 0x32 | CH5 - CHA_1 RXDET |
7:4 | Reserved | R/W | 0x00 | Set bits to 0. |
| 3:2 | RXDET | 00: Input is high-z impedance 01: Auto RX-Detect, outputs test every 12 ms for 600 ms (50 times) then stops; termination is high-z until detection; once detected input termination is 50 Ω 10: Auto RX-Detect, outputs test every 12 ms until detection occurs; termination is high-z until detection; once detected input termination is 50 Ω 11: Input is 50 Ω Note: override RXDET Terminal. |
||||
| 1:0 | Reserved | Set bits to 0. | ||||
| 0x33 | CH5 - CHA_1 EQ |
7:0 | EQ Control | R/W | 0x2F | INA_1 EQ Control - total of 4 levels. See Table 6. |
| 0x34 | CH5 - CHA_1 VOD |
7 | Short Circuit Protection | R/W | 0xAD | 1: Enable the short circuit protection 0: Disable the short circuit protection |
| 6 | Reserved | Set bit to 0. | ||||
| 5:3 | Reserved | Set bits to default value - 101. | ||||
| 2:0 | VOD Control | OUTA_1 VOD Control 000: 0.65 001: 0.70 010: 0.78 011: 0.83 100: 0.88 101: 0.91 (Default) 110: 1.00 111: 1.05 (Recommended for SAS) |
||||
| 0x35 | CH5 - CHA1 DEM |
7 | RXDET STATUS | R | 0x02 | Observation bit for RXDET CH5 - CHA_1. 1: RX = detected 0: RX = not detected |
| 6:5 | MODE_DET STATUS | R | Observation bit for MODE_DET CH5 - CHA_1. 00: GEN1 (2.5G data-rate) 01: GEN2 (5G data-rate) 11: GEN3 (8G+ data-rate) Note: Only functions when MODE_B Terminal = Automatic |
|||
| 4:3 | Reserved | R/W | Set bits to 0. | |||
| 2:0 | DEM Control | R/W | OUTA_1 DEM Control (010'b Default) This control does not provide a DEM function for A-Channel outputs. Based on system interoperability testing it is recommended to set these bits to 000'b for SAS and PCIe applications. |
|||
| 0x36 | CH5 - CHA_1 SD Threshold |
7:4 | Reserved | R/W | 0x00 | Set bits to 0. |
| 3:2 | IDLE tha | Assert threshold (1010 pattern 12 Gbps) 00 = 50 mVp-p (default) 01 = 40 mVp-p 10 = 75 mVp-p 11 = 58 mVp-p Note: override the SD_TH Terminal using 0x08[6]. |
||||
| 1:0 | IDLE thd | De-assert threshold (1010 pattern 12 Gbps) 00 = 37 mVp-p (default) 01 = 22 mVp-p 10 = 55 mVp-p 11 = 45 mVp-p Note: override the SD_TH Terminal using 0x08[6]. |
||||
| 0x39 | CH6 - CHA_2 RXDET |
7:4 | Reserved | R/W | 0x00 | Set bits to 0. |
| 3:2 | RXDET | 00: Input is high-z impedance 01: Auto RX-Detect, outputs test every 12 ms for 600 ms (50 times) then stops; termination is high-z until detection; once detected input termination is 50 Ω 10: Auto RX-Detect, outputs test every 12 ms until detection occurs; termination is high-z until detection; once detected input termination is 50 Ω 11: Input is 50 Ω Note: override RXDET Terminal. |
||||
| 1:0 | Reserved | Set bits to 0. | ||||
| 0x3A | CH6 - CHA_2 EQ |
7:0 | EQ Control | R/W | 0x2F | INA_2 EQ Control - total of 4 levels. See Table 6. |
| 0x3B | CH6 - CHA_2 VOD |
7 | Short Circuit Protection | R/W | 0xAD | 1: Enable the short circuit protection 0: Disable the short circuit protection |
| 6 | Reserved | set bit to 0. | ||||
| 5:3 | Reserved | Set bits to default value - 101. | ||||
| 2:0 | VOD Control | OUTA_2 VOD Control: VOD / VID Ratio 000: 0.65 001: 0.70 010: 0.78 011: 0.83 100: 0.88 101: 0.91 (Default) 110: 1.00 111: 1.05 (Recommended for SAS) |
||||
| 0x3C | CH6 - CHA_2 DEM |
7 | RXDET STATUS | R | 0x02 | Observation bit for RXDET CH6 - CHA_2. 1: RX = detected 0: RX = not detected |
| 6:5 | MODE_DET STATUS | R | Observation bit for MODE_DET CH6 - CHA_2. 00: GEN1 (2.5G data-rate) 01: GEN2 (5G data-rate) 11: GEN3 (8G+ data-rate) Note: Only functions when MODE_B Terminal = Automatic |
|||
| 4:3 | Reserved | R/W | Set bits to 0. | |||
| 2:0 | DEM Control | R/W | OUTA_2 DEM Control (010'b Default) This control does not provide a DEM function for A-Channel outputs. Based on system interoperability testing it is recommended to set these bits to 000'b for SAS and PCIe applications. |
|||
| 0x3D | CH6 - CHA_2 SD Threshold |
7:4 | Reserved | R/W | 0x00 | Set bits to 0. |
| 3:2 | IDLE tha | Assert threshold (1010 pattern 12 Gbps) 00 = 50 mVp-p (default) 01 = 40 mVp-p 10 = 75 mVp-p 11 = 58 mVp-p Note: override the SD_TH Terminal using 0x08[6]. |
||||
| 1:0 | IDLE thd | De-assert threshold (1010 pattern 12 Gbps) 00 = 37 mVp-p (default) 01 = 22 mVp-p 10 = 55 mVp-p 11 = 45 mVp-p Note: override the SD_TH Terminal using 0x08[6]. |
||||
| 0x40 | CH7 - CHA_3 RXDET |
7:4 | Reserved | R/W | 0x00 | Set bits to 0. |
| 3:2 | RXDET | 00: Input is high-z impedance 01: Auto RX-Detect, outputs test every 12 ms for 600 ms (50 times) then stops; termination is high-z until detection; once detected input termination is 50 Ω 10: Auto RX-Detect, outputs test every 12 ms until detection occurs; termination is high-z until detection; once detected input termination is 50 Ω 11: Input is 50 Ω Note: override RXDET Terminal. |
||||
| 1:0 | Reserved | Set bits to 0. | ||||
| 0x41 | CH7 - CHA_3 EQ |
7:0 | EQ Control | R/W | 0x2F | INA_3 EQ Control - total of 4 levels. See Table 6. |
| 0x42 | CH7 - CHA_3 VOD |
7 | Short Circuit Protection | R/W | 0xAD | 1: Enable the short circuit protection 0: Disable the short circuit protection |
| 6 | Reserved | Set bit to 0. | ||||
| 5:3 | Reserved | Set bits to default value - 101. | ||||
| 2:0 | VOD Control | OUTA_3 VOD Control: VOD / VID Ratio 000: 0.65 001: 0.70 010: 0.78 011: 0.83 100: 0.88 101: 0.91 (Default) 110: 1.00 111: 1.05 (Recommended for SAS) |
||||
| 0x43 | CH7 - CHA_3 DEM |
7 | RXDET STATUS | R | 0x02 | Observation bit for RXDET CH7 - CHA3. 1: RX = detected 0: RX = not detected |
| 6:5 | MODE_DET STATUS | R | Observation bit for MODE_DET CH7 - CHA3. 00: GEN1 (2.5G data-rate) 01: GEN2 (5G data-rate) 11: GEN3 (8G+ data-rate) Note: Only functions when MODE_B Terminal = Automatic |
|||
| 4:3 | Reserved | R/W | Set bits to 0. | |||
| 2:0 | DEM Control | R/W | OUTA_3 DEM Control (010'b Default) This control does not provide a DEM function for A-Channel outputs. Based on system interoperability testing it is recommended to set these bits to 000'b for SAS and PCIe applications. |
|||
| 0x44 | CH7 - CHA3 SD Threshold |
7:4 | Reserved | R/W | 0x00 | Set bits to 0. |
| 3:2 | IDLE tha | Assert threshold (1010 pattern 12 Gbps) 00 = 50 mVp-p (default) 01 = 40 mVp-p 10 = 75 mVp-p 11 = 58 mVp-p Note: override the SD_TH Terminal using 0x08[6]. |
||||
| 1:0 | IDLE thd | De-assert threshold (1010 pattern 12 Gbps) 00 = 37 mVp-p (default) 01 = 22 mVp-p 10 = 55 mVp-p 11 = 45 mVp-p Note: override the SD_TH Terminal using 0x08[6]. |
||||
| 0x51 | Device ID | 7:5 | VERSION | R | 0x84 | 100'b |
| 4:0 | ID | 00100'b |
