6.6 Indexer Timing Requirements
TA = 25°C, over recommended operating conditions unless otherwise noted| NO. | MIN | MAX | UNIT | ||
|---|---|---|---|---|---|
| 1 | ƒSTEP | Step frequency | 500 (1) | kHz | |
| 2 | tWH(STEP) | Pulse duration, STEP high | 970 | ns | |
| 3 | tWL(STEP) | Pulse duration, STEP low | 970 | ns | |
| 4 | tSU(DIR, Mx) | Setup time, DIR or USMx to STEP rising | 200 | ns | |
| 5 | tH(DIR, Mx) | Hold time, DIR or USMx to STEP rising | 200 | ns | |
(1) STEP input can operate up to 500 kHz, but system bandwidth is limited by the motor load

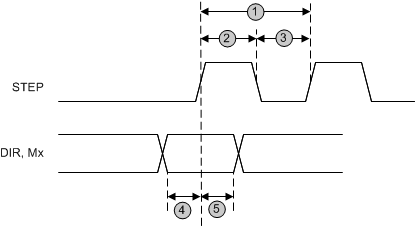

Figure 1. Timing Diagram
