5 Pin Configuration and Functions

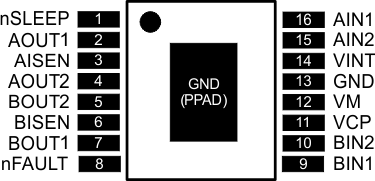

PWP Package
16-Pin HTSSOP
Top View

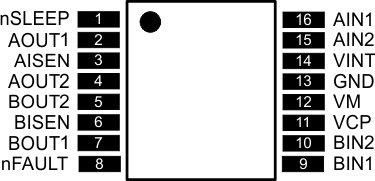

PW Package
16-Pin TSSOP
Top View
RTY Package
16-Pin WQFN
Top View
Pin Functions
| PIN | I/O(1) | DESCRIPTION | EXTERNAL COMPONENTS OR CONNECTIONS |
||
|---|---|---|---|---|---|
| NAME | WQFN | HTSSOP, TSSOP |
|||
| POWER AND GROUND | |||||
| GND | 11 PPAD |
13 | — | Device ground. HTSSOP package has PowerPAD. | Both the GND pin and device PowerPAD must be connected to ground. |
| VINT | 12 | 14 | — | Internal supply bypass | Bypass to GND with 2.2-μF, 6.3-V capacitor. |
| VM | 10 | 12 | — | Device power supply | Connect to motor supply. A 10-µF (minimum) ceramic bypass capacitor to GND is recommended. |
| VCP | 9 | 11 | IO | High-side gate drive voltage | Connect a 0.01-μF, 16-V (minimum) X7R ceramic capacitor to VM. |
| CONTROL | |||||
| AIN1 | 14 | 16 | I | Bridge A input 1 | Logic input controls state of AOUT1. Internal pulldown. |
| AIN2 | 13 | 15 | I | Bridge A input 2 | Logic input controls state of AOUT2. Internal pulldown. |
| BIN1 | 7 | 9 | I | Bridge B input 1 | Logic input controls state of BOUT1. Internal pulldown. |
| BIN2 | 8 | 10 | I | Bridge B input 2 | Logic input controls state of BOUT2. Internal pulldown. |
| nSLEEP | 15 | 1 | I | Sleep mode input | Logic high to enable device, logic low to enter low-power sleep mode and reset all internal logic. Internal pulldown. |
| STATUS | |||||
| nFAULT | 6 | 8 | OD | Fault output | Logic low when in fault condition (overtemperature, overcurrent) |
| OUTPUT | |||||
| AISEN | 1 | 3 | IO | Bridge A ground / ISENSE | Connect to current sense resistor for bridge A, or GND if current control not needed |
| BISEN | 4 | 6 | IO | Bridge B ground / ISENSE | Connect to current sense resistor for bridge B, or GND if current control not needed |
| AOUT1 | 16 | 2 | O | Bridge A output 1 | Connect to motor winding A |
| AOUT2 | 2 | 4 | O | Bridge A output 2 | |
| BOUT1 | 5 | 7 | O | Bridge B output 1 | Connect to motor winding B |
| BOUT2 | 3 | 5 | O | Bridge B output 2 | |
(1) I = Input, O = Output, OZ = Tri-state output, OD = Open-drain output, IO = Input/output
