6.6 Timing Requirements
| MIN | NOM | MAX | UNIT | |||
|---|---|---|---|---|---|---|
| tpd | Propagation delay time | Input edge to source or sink ON | 600 | ns | ||
| Input edge to source or sink OFF | 100 | |||||
| tCOD | Crossover delay | 500 | ns | |||
| tDEG | Overcurrent deglitch time | 3 | μs | |||
| tOCP | Overcurrent retry time | 1.2 | ms | |||

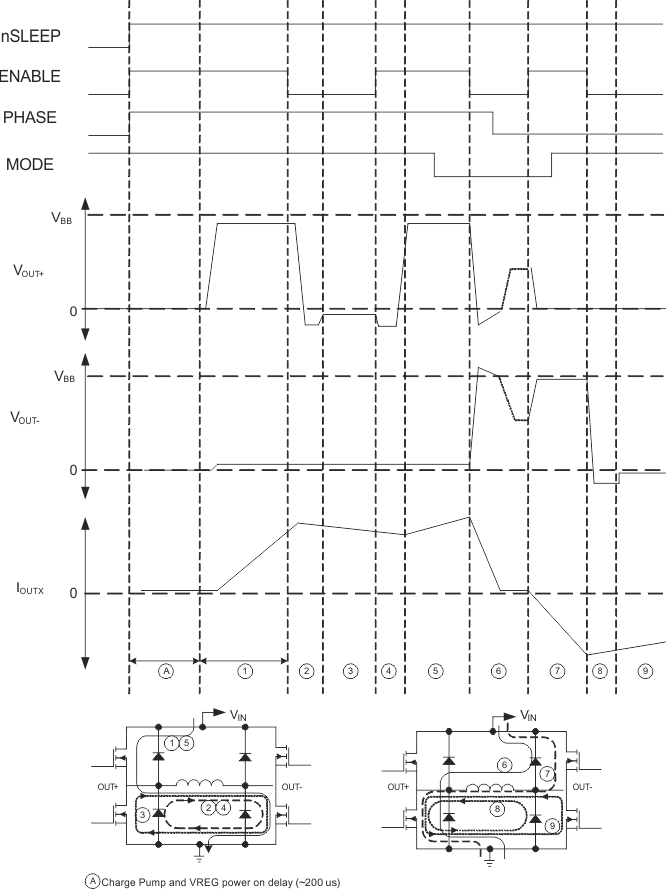

Figure 6-1 PWM
Control Timing

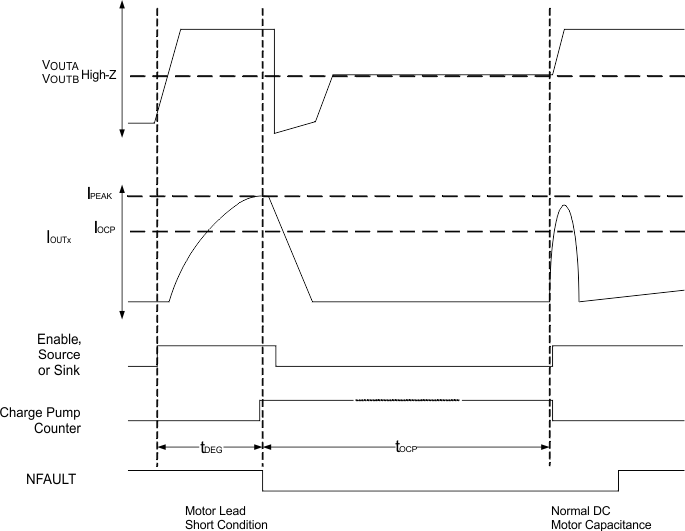

Figure 6-2 Overcurrent Control Timing
