6.8 Typical Characteristics

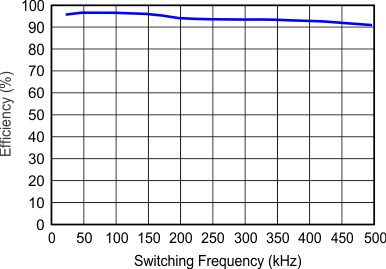

| Full Bridge Load: 5 A; PVDD = 50 V; Tc = 75°C |

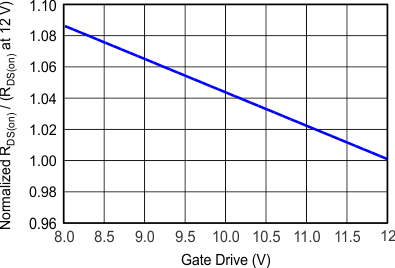

| GVDD = 12 V |

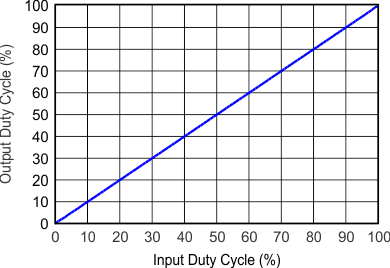

| FS = 500 kHz; TC = 25°C |
| TJ = 25°C | ||
| TJ = 25°C |

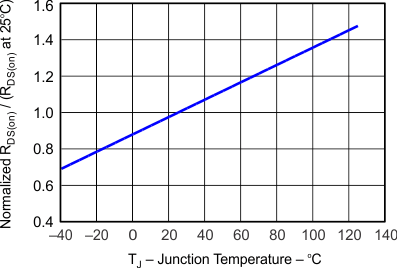

On Characteristics
