6.11 Micromirror Array Physical Characteristics
Table 6-3 Micromirror Array Physical
Characteristics
| PARAMETER DESCRIPTION | VALUE | UNIT | |
|---|---|---|---|
| Number of active columns(1) | M | 2048 | micromirrors |
| Number of active rows(1) | N | 1200 | micromirrors |
| Micromirror (pixel) pitch(1) | P | 5.4 | μm |
| Micromirror active array width(1) | Micromirror Pitch × number of active columns | 11.0592 | mm |
| Micromirror active array height(1) | Micromirror Pitch × number of active rows | 6.4800 | mm |
| Micromirror active border (All four sides) (2) | Pond of micromirrors (POM) | 20 | micromirrors/side |
(1) See Figure 6-9
(2) The structure and qualities of the border around the active
array includes a band of partially functional micromirrors referred to as the
pond of micromirrors (POM). These micromirrors are structurally and/or
electrically prevented from tilting toward the bright or ON state but still
require an electrical bias to tilt toward the OFF state.

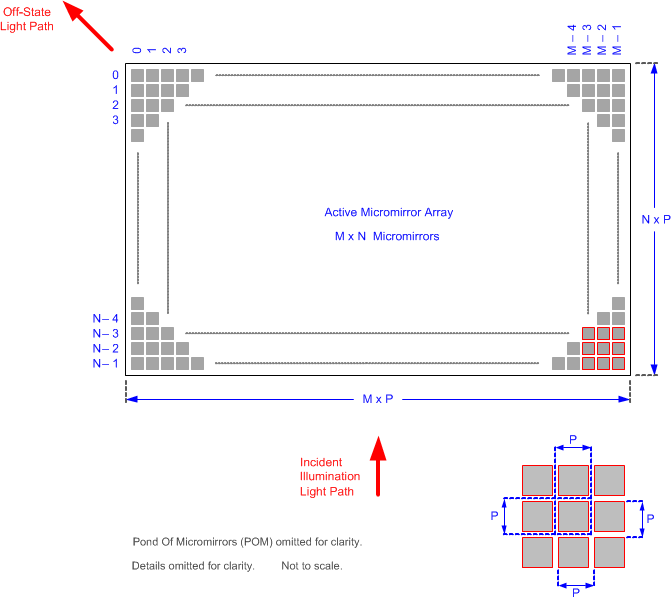

Figure 6-9 Micromirror Array Physical Characteristics
