ZHCS757A February 2012 – April 2016 CDCM9102
PRODUCTION DATA.
- 1 特性
- 2 應用范圍
- 3 說明
- 4 修訂歷史記錄
- 5 Device Comparison Table
- 6 Pin Configuration and Functions
- 7 Specifications
- 8 Parameter Measurement Information
- 9 Detailed Description
- 10Application and Implementation
- 11Power Supply Recommendations
- 12Layout
- 13器件和文檔支持
- 14機械、封裝和可訂購信息
封裝選項
機械數(shù)據(jù) (封裝 | 引腳)
- RHB|32
散熱焊盤機械數(shù)據(jù) (封裝 | 引腳)
- RHB|32
訂購信息
8 Parameter Measurement Information
8.1 Test Configurations
Figure 2. LVCMOS Output Test Load

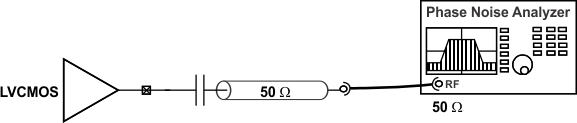

Figure 3. LVCMOS AC Configuration for Device Test

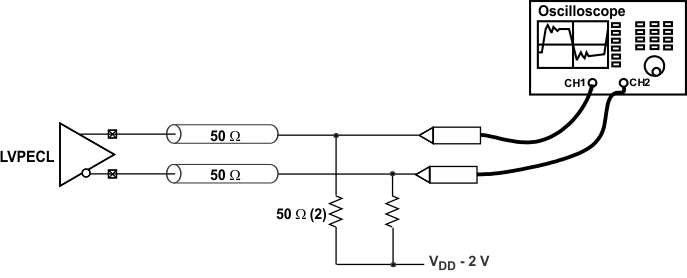

Figure 4. LVPECL DC Configuration for Device Test

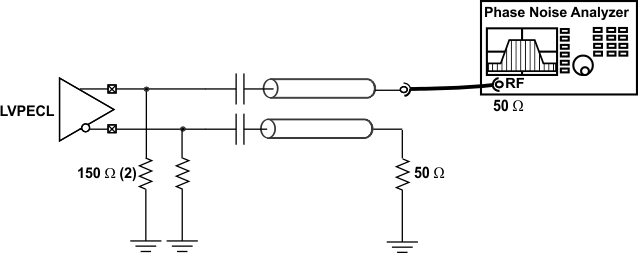

Figure 5. LVPECL AC Configuration for Device Test

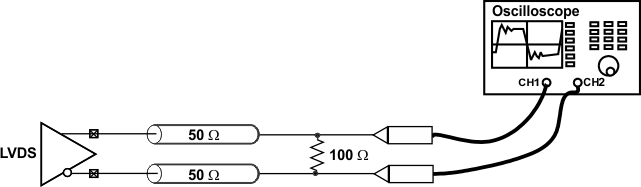

Figure 6. LVDS DC Configuration for Device Test

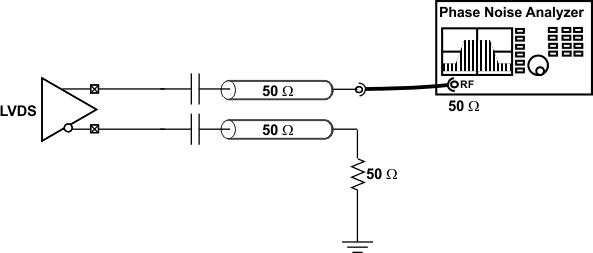

Figure 7. LVDS AC Configuration for Device Test
