7 Parameter Measurement Information
7.1 Test Configurations

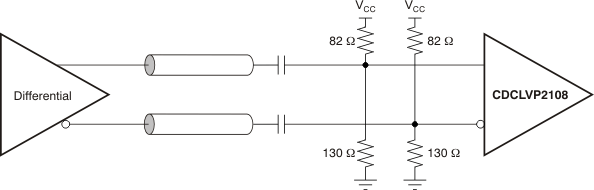

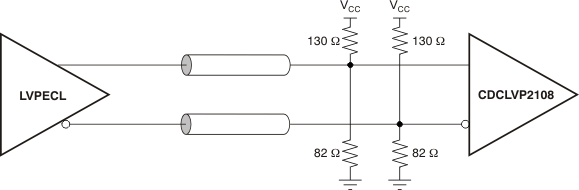

This section describes the function of each block for the CDCLVP2108. Figure 5 through Figure 11 show how the device should be set up for a variety of test configurations.

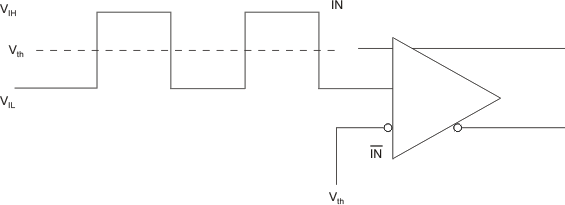

Figure 5. DC-Coupled LVCMOS Input During Device Test

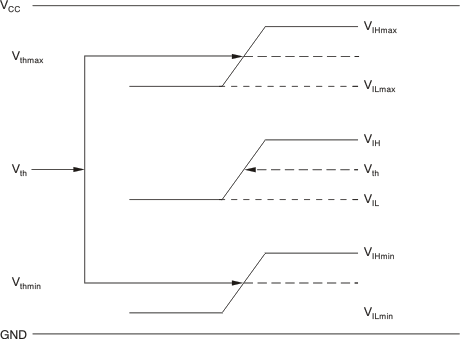

Figure 6. Vth Variation over LVCMOS Levels

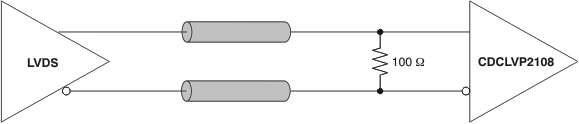

Figure 8. DC-Coupled LVDS Input During Device Test

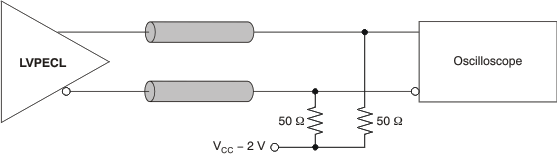

Figure 10. LVPECL Output DC Configuration During Device Test

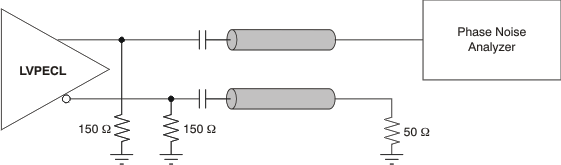

Figure 11. LVPECL Output AC Configuration During Device Test
