6 Parameter Measurement Information
Phase relationships between waveforms were chosen arbitrarily. All input pulses are supplied by generators having the following characteristics: PRR ≤ 1 MHz, ZO = 50 ?, tt < 6 ns.
For clock inputs, fmax is measured when the input duty cycle is 50%.
The outputs are measured one at a time with one input transition per measurement.
(1) CL includes probe
and test-fixture capacitance.
Figure 6-1 Load Circuit for Push-Pull
Outputs
Figure 6-2 Voltage Waveforms,
Standard CMOS Inputs Pulse Duration
(1) The
greater between tPLH and tPHL is the same as
tpd.

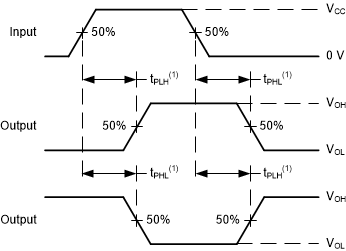

Figure 6-4 Voltage Waveforms,
Standard CMOS Inputs Setup Propagation Delays

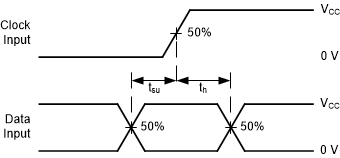

Figure 6-3 Voltage Waveforms,
Standard CMOS Inputs Setup and Hold Times
(1) The greater between
tr and tf is the same as tt.

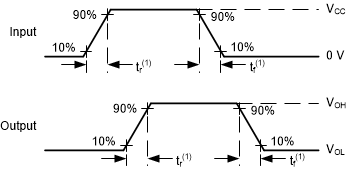

Figure 6-5 Voltage Waveforms, Input
and Output Transition Times for Standard CMOS Input Devices

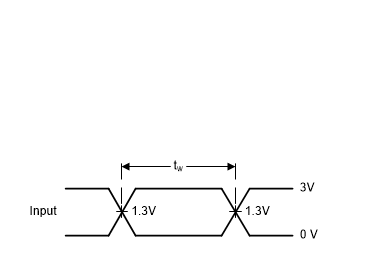

Figure 6-6 Voltage Waveforms,
TTL-Compatible CMOS Inputs Pulse Duration
(1) The greater between
tPLH and tPHL is the same as
tpd.

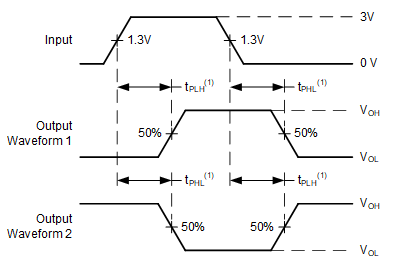

Figure 6-8 Voltage Waveforms,
TTL-Compatible CMOS Inputs Propagation Delays

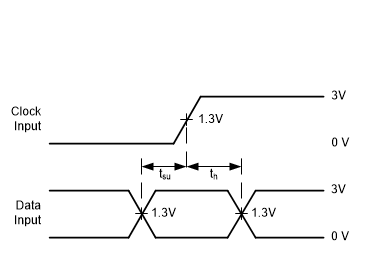

Figure 6-7 Voltage Waveforms,
TTL-Compatible CMOS Inputs Setup and Hold Times
