6.1 Test Circuits

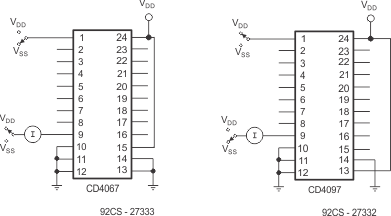

Figure 6-1 OFF Channel Leakage Current – Any Channel OFF

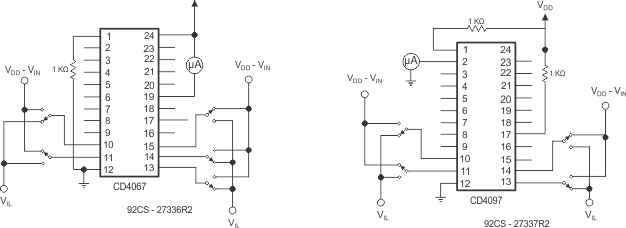

Figure 6-2 Input Voltage –Measure <2μA on all OFF Channels (For Example, Channel 12)

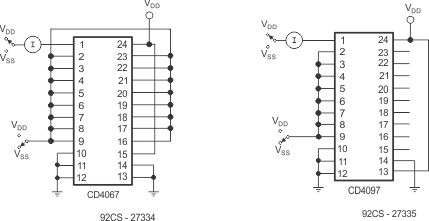

Figure 6-3 OFF Channel Leakage Current – All Channels OFF

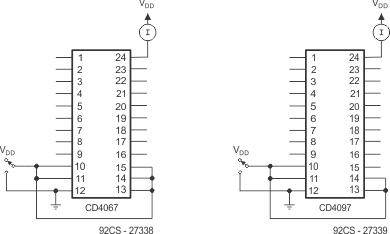

Figure 6-4 Quiescent Device Current

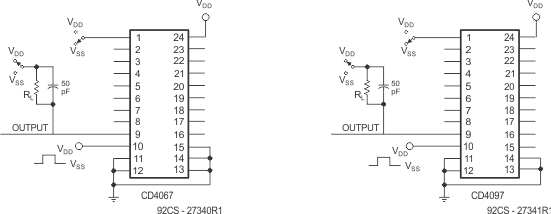

Figure 6-5 Turn-on and Turn-off Propagation Delay – Address Select Input to Signal Output (For Example,, Measured on Channel 0)

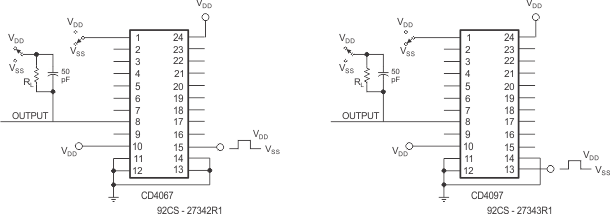

Figure 6-6 Turn-on and Turn-off Propagation Delay – Inhibit Input to Signal Output (For Example,, Measured on Channel 1)
Figure 6-7 Channel ON Resistance Measurement Circuit
Figure 6-8 Propagation Delay Waveform Channel Being turned ON (RL = 10kΩ, CL = 50 pF)
Figure 6-9 Propagation Delay Waveform Channel Being turned OFF (RL = 300Ω, CL = 50 pF)
