ZHCSLH5K August 1998 – June 2020 CD4049UB , CD4050B
PRODUCTION DATA
- 1 特性
- 2 應用
- 3 描述
- 4 Revision History
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Parameter Measurement Information
- 8 Detailed Description
- 9 Application and Implementation
- 10Power Supply Recommendations
- 11Layout
- 12Device and Documentation Support
- 13Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- PW|16
- NS|16
- N|16
- DW|16
- D|16
散熱焊盤機械數據 (封裝 | 引腳)
- DW|16
訂購信息
6.7 Typical Characteristics

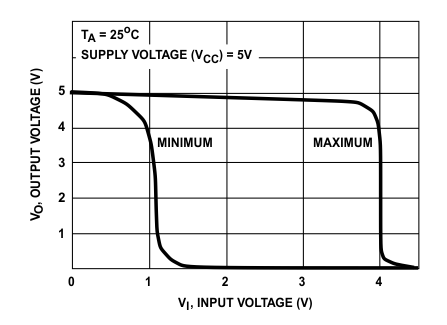

Figure 6-1 Minimum and Maximum Voltage Transfer Characteristics for CD4049UB

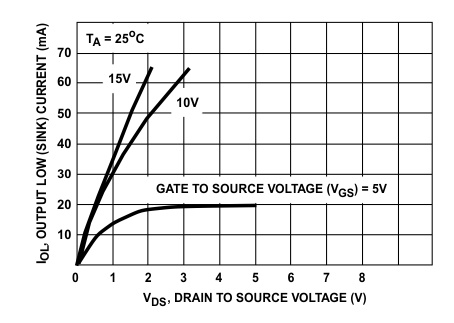

Figure 6-3 Typical Output Low (Sink) Current Characteristics

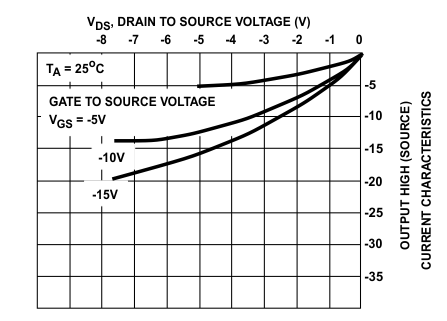

Figure 6-5 Typical Output High (Source) Current Characteristics

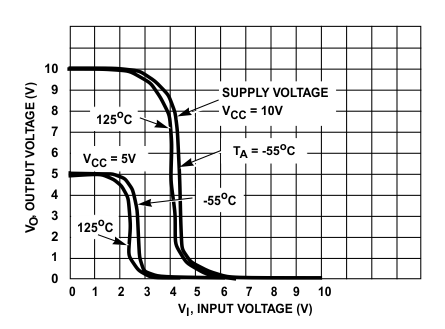

Figure 6-7 Typical Voltage Transfer Characteristics as a Function of Temperature for CD4049UB

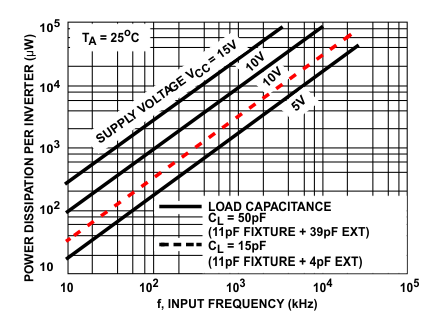

Figure 6-9 Typical Power Dissipation versus Frequency Characteristics

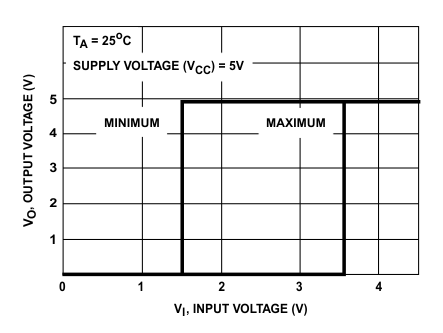

Figure 6-2 Minimum and Maximum Voltage Transfer Characteristics for CD4050B

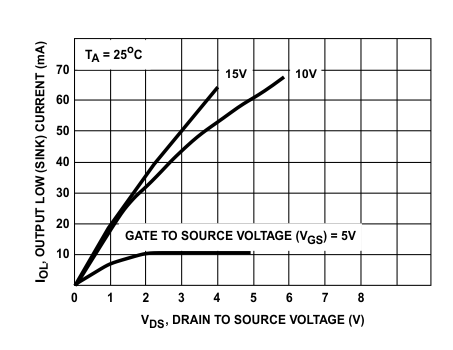

Figure 6-4 Minimum Output Low (Sink) Current Drain Characteristics

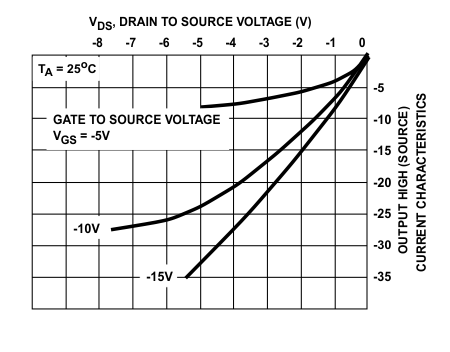

Figure 6-6 Minimum Output High (Source) Current Characteristics

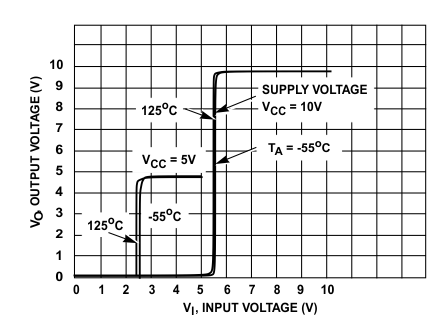

Figure 6-8 Typical Voltage Transfer Characteristics as a Function of Temperature for CD4050B
