5.3 Recommended Operating Conditions
| MIN | NOM | MAX | UNIT | |||
|---|---|---|---|---|---|---|
| VCC | Supply voltage range applied at all DVCC and AVCC pins(1) during program execution and flash programming with PMM default settings, Radio is not operational with PMMCOREVx = 0 or 1(3)(4) | PMMCOREVx = 0
(default after POR) |
1.8 | 3.6 | V | |
| PMMCOREVx = 1 | 2.0 | 3.6 | ||||
| Supply voltage range applied at all DVCC and AVCC pins(1) during program execution, flash programming, and radio operation with PMM default settings(3)(4) | PMMCOREVx = 2 | 2.2 | 3.6 | |||
| PMMCOREVx = 3 | 2.4 | 3.6 | ||||
| Supply voltage range applied at all DVCC and AVCC pins(1) during program execution, flash programming and radio operation with PMMCOREVx = 2, high-side SVS level lowered (SVSHRVL = SVSMHRRL = 1) or high-side SVS disabled (SVSHE = 0)(3)(4)(5) | PMMCOREVx = 2,
SVSHRVLx = SVSHRRRLx = 1 or SVSHE = 0 |
2.0 | 3.6 | |||
| VSS | Supply voltage applied at the exposed die attach VSS and AVSS pin | 0 | V | |||
| TA | Operating free-air temperature | –40 | 85 | °C | ||
| TJ | Operating junction temperature | –40 | 85 | °C | ||
| CVCORE | Recommended capacitor at VCORE(2) | 470 | nF | |||
| CDVCC/ CVCORE | Capacitor ratio of capacitor at DVCC to capacitor at VCORE | 10 | ||||
| fSYSTEM | Processor (MCLK) frequency(6) (see Figure 5-1) | PMMCOREVx = 0
(default condition) |
0 | 8 | MHz | |
| PMMCOREVx = 1 | 0 | 12 | ||||
| PMMCOREVx = 2 | 0 | 16 | ||||
| PMMCOREVx = 3 | 0 | 20 | ||||
| PINT | Internal power dissipation | VCC × IDVCC | W | |||
| PIO | I/O power dissipation of I/O pins powered by DVCC | (VCC – VIOH) × IIOH + VIOL × IIOL | W | |||
| PMAX | Maximum allowed power dissipation, PMAX > PIO + PINT | (TJ – TA) / θJA | W | |||
(1) TI recommends powering AVCC and DVCC from the same source. A maximum difference of 0.3 V between AVCC and DVCC can be tolerated during power up and operation.
(2) A capacitor tolerance of ±20% or better is required.
(3) Modules may have a different supply voltage range specification. See the specification of the respective module in this data sheet.
(4) The minimum supply voltage is defined by the supervisor SVS levels when it is enabled. See the Section 5.21 threshold parameters for the exact values and further details.
(5) Lowering the high-side SVS level or disabling the high-side SVS might cause the LDO to operate out of regulation, but the core voltage will still stay within its limits and is still supervised by the low-side SVS, ensuring reliable operation.
(6) Modules may have a different maximum input clock specification. See the specification of the respective module in this data sheet.

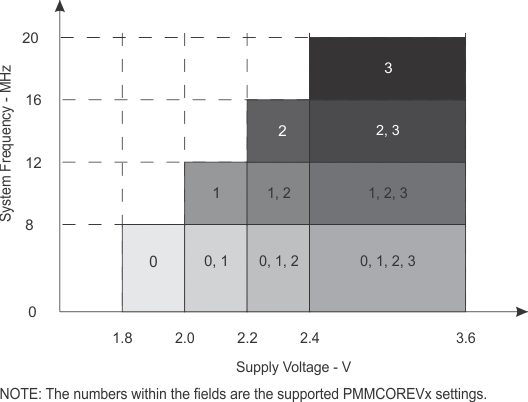

Figure 5-1 Maximum System Frequency
