16.4 Startup Timing
At initial power up of the BQ76952 device from a SHUTDOWN state, the device progresses through a sequence of events before entering NORMAL mode operation. These are described below for an example configuration, with approximate timing shown for the cases when [FASTADC] = 0 and [FASTADC] = 1.
Note: When the device is configured for
autonomous FET control (that is, [FET_EN] = 1), the decision to enable
FETs is only evaluated every 250 ms while in NORMAL mode, which is why the FETs are
not enabled until approximately 280 ms after the wakeup event, even though the data
was available earlier.
Table 16-2 Startup Sequence and
Timing
| Step | Comment | FASTADC Setting | Time (relative to wakeup event) |
|---|---|---|---|
| Wakeup event | Either the TS2 pin is pulled low, or the LD pin is pulled up, triggering the device to exit SHUTDOWN mode. | 0, 1 | 0 |
| REG1 powered | This was measured with the OTP programmed to autonomously power the REG1 LDO. | 0, 1 | 20 ms |
| INITSTART asserted | This was measured with the OTP programmed to provide the INITSTART bit in the Alarm signal on the ALERT pin. | 0, 1 | 23 ms |
| INITCOMP and ADSCAN asserted | This was measured with the OTP programmed to provide the INITCOMP and ADSCAN bits in the Alarm signal on the ALERT pin. | 0 | 88 ms |
| 1 | 58 ms | ||
| FULLSCAN asserted | This was measured with the OTP programmed to provide the FULLSCAN bit in the Alarm signal on the ALERT pin. | 0 | 221 ms |
| 1 | 129 ms | ||
| FETs enabled | This was measured with the OTP programmed to autonomously enable FETs. | 0 | 282 ms |
| 1 | 284 ms |

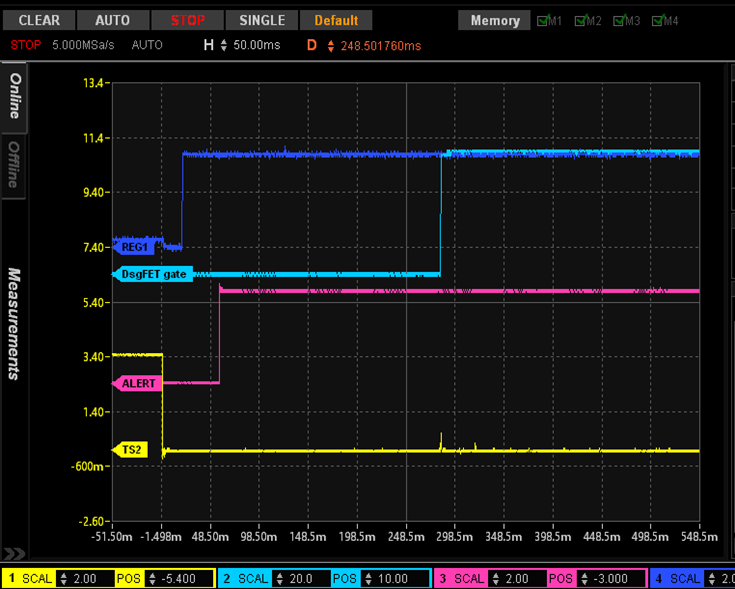

Figure 16-5 shows an example of an oscilloscope plot of a startup sequence with the device configured in OTP with [FASTADC] = 1, [FET_EN] = 1 for autonomous FET control, setup to use three thermistors, and providing the [INITCOMP] flag on the ALERT pin. The TS2 pin is pulled low to initiate device wakeup from SHUTDOWN.
Figure 16-5 Startup Sequence Using [FASTADC] = 1, with the [INITCOMP] Flag Displayed on the ALERT Pin
