8.3.3.2.1 D+/D– Detection Sets Input Current Limit
The BQ25886 contains a D+/D- based input source detection to program the input current limit. The D+/D- detection has three major steps: Data Contact Detect (DCD), Primary Detection, and Secondary Detection.

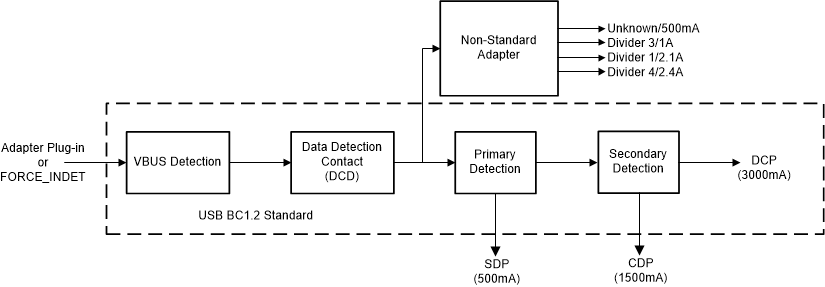

Figure 13. D+/D- Detection Flow Table 2. Non-Standard Adapter Detection
| NON-STANDARD ADAPTER | D+ THRESHOLD | D– THRESHOLD | INPUT CURRENT LIMIT |
|---|---|---|---|
| Divider 1 | VD+ within V2P8_VTH | VD– within V2P0_VTH | 2.1 A |
| Divider 3 | VD+ within V2P0_VTH | VD– within V2P8_VTH | 1 A |
| Divider 4 | VD+ within V2P8_VTH | VD– within V2P8_VTH | 2.4 A |
Table 3. Input Current Limit Setting from D+/D– Detection
| D+/D– DETECTION | INPUT CURRENT LIMIT (IINDPM) |
|---|---|
| USB SDP (USB500) | 500 mA |
| USB CDP | 1.5 A |
| USB DCP | 3.0 A
|
| Divider 3 | 1 A |
| Divider 1 | 2.1 A |
| Divider 4 | 2.4 A |
| Unknown 5V Adapter | 500 mA |
