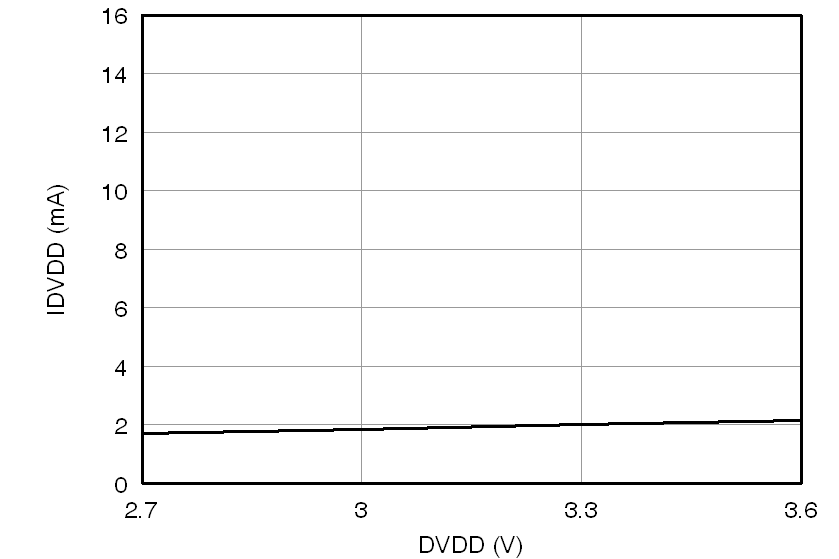

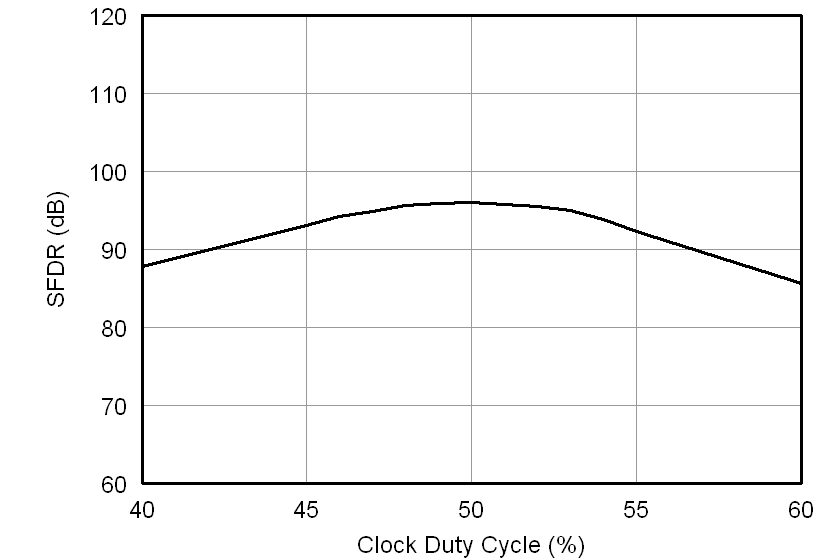

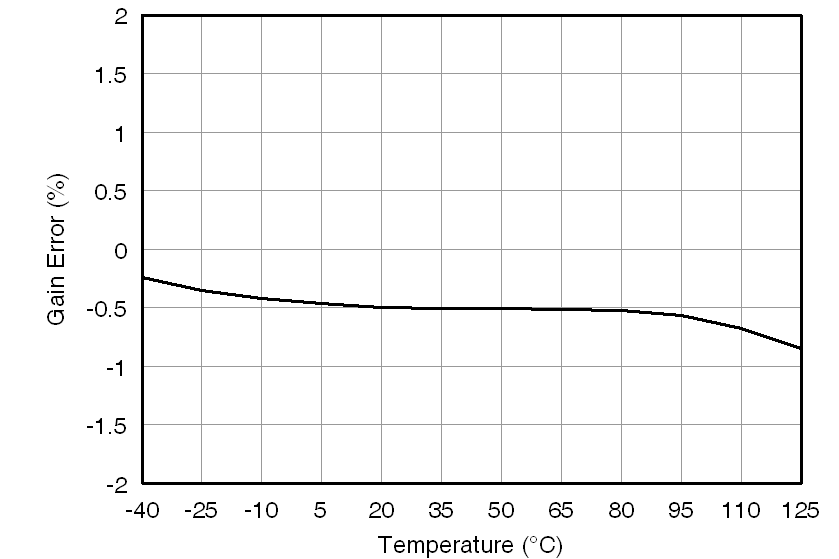

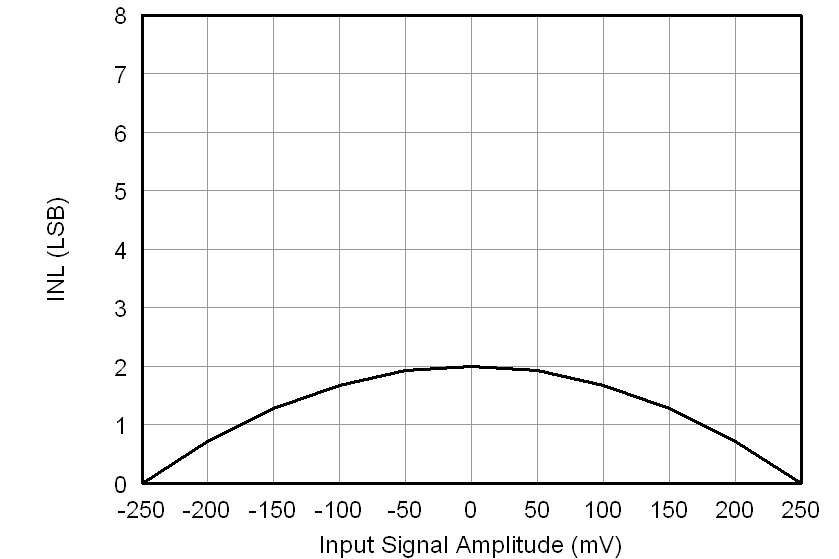

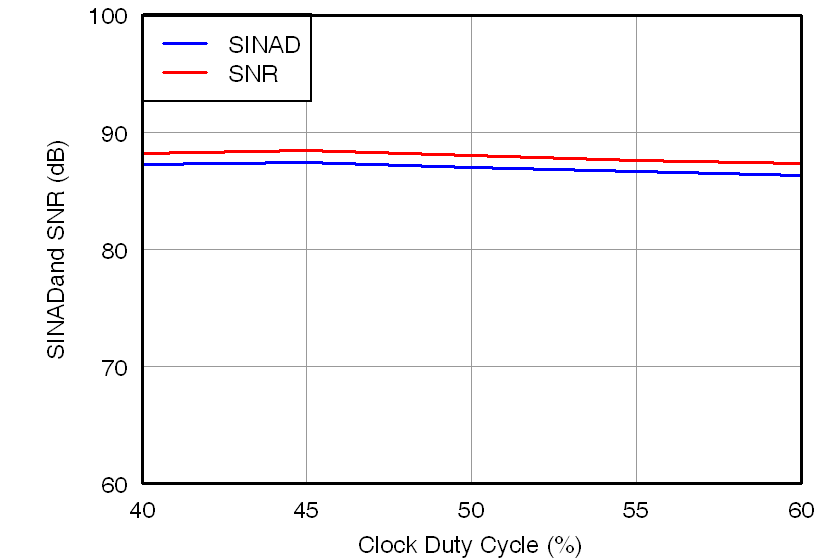

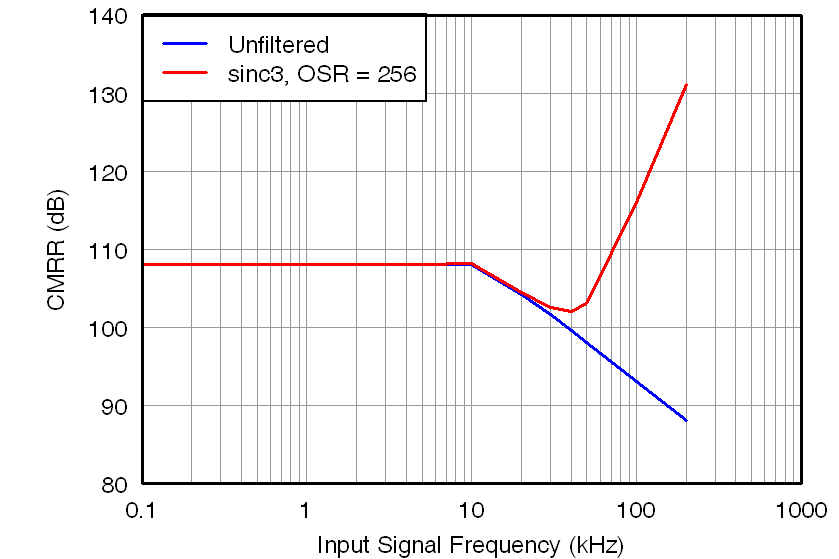

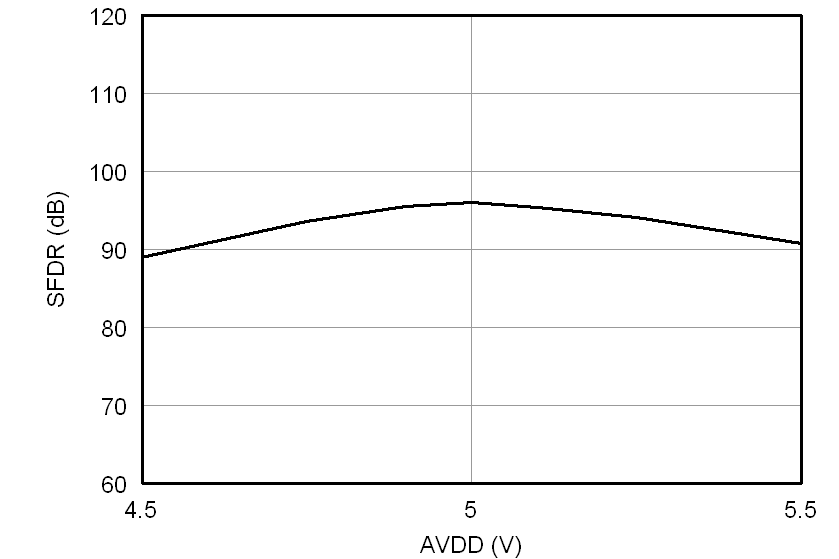

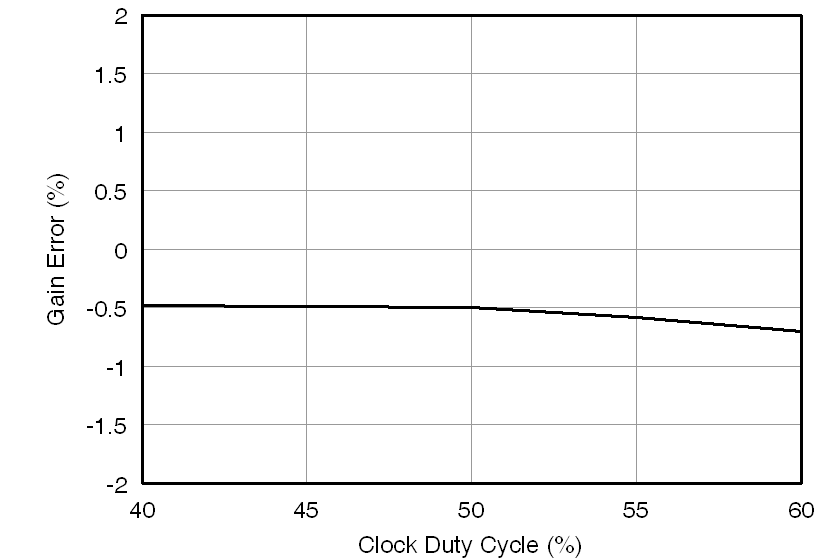

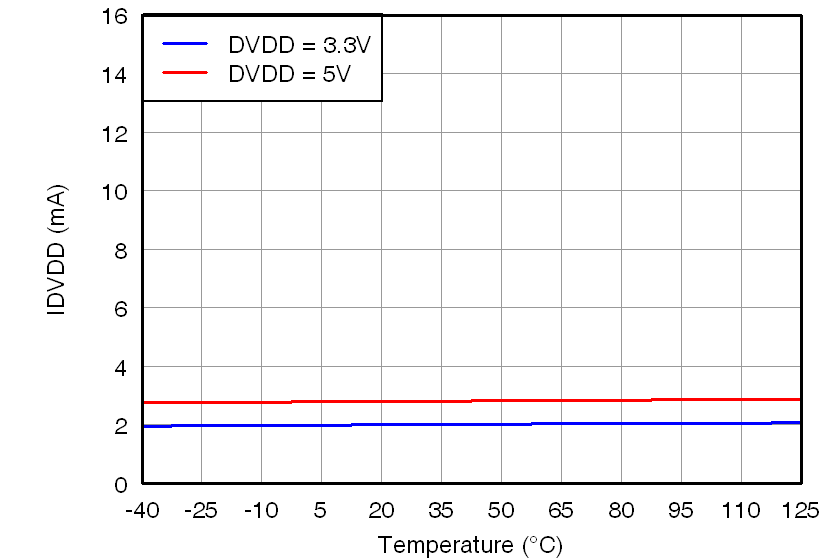

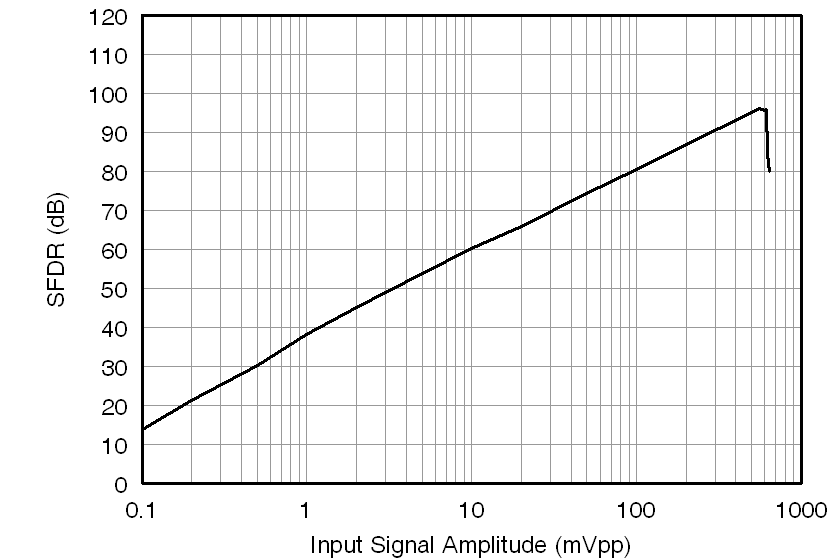

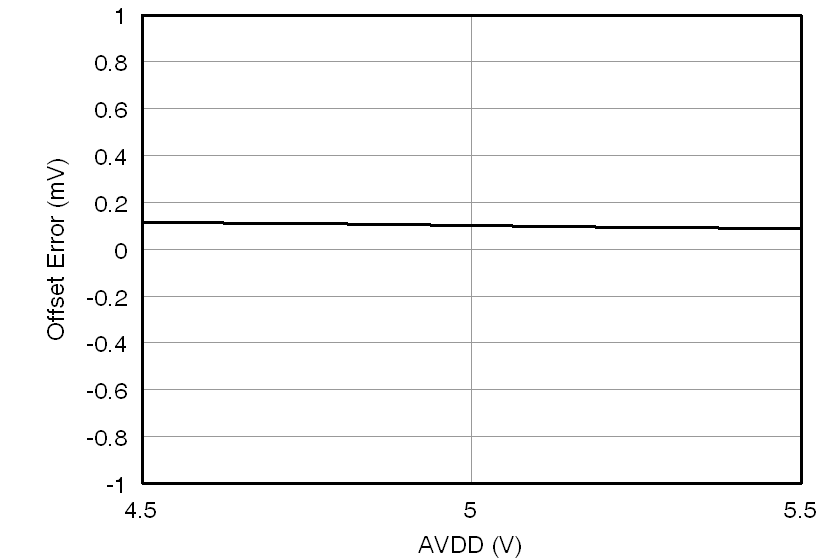

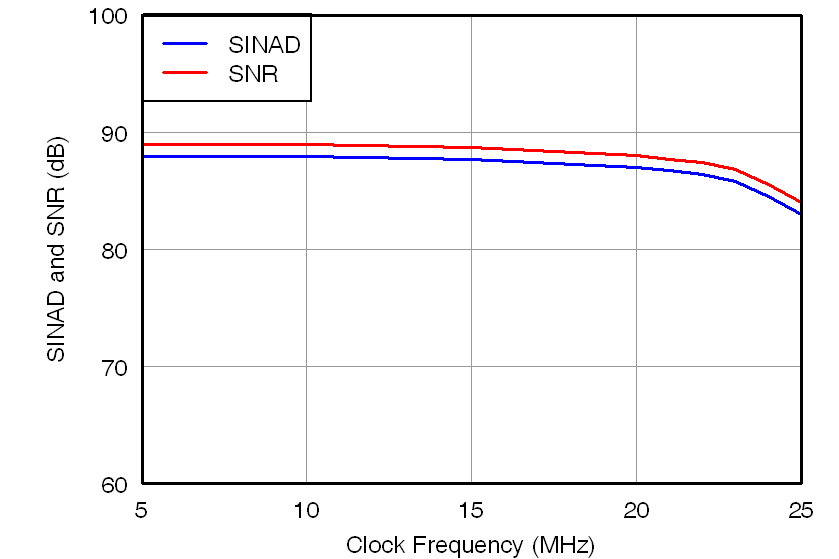

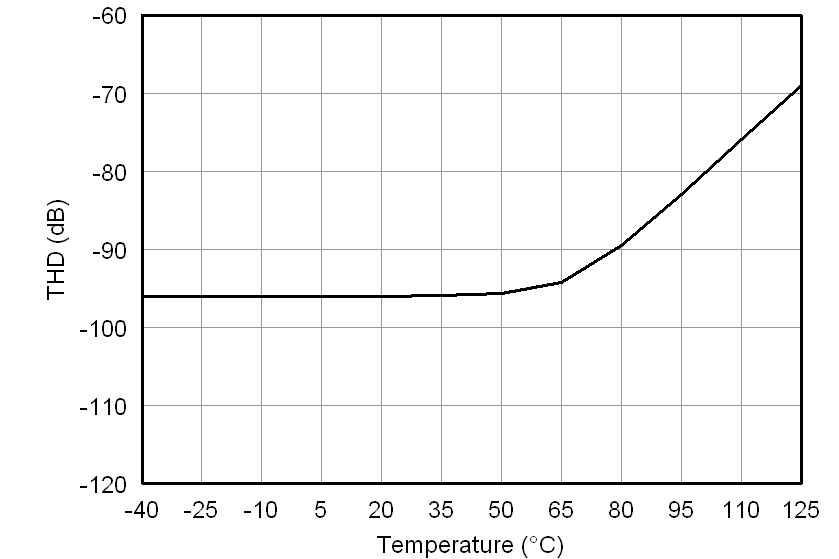

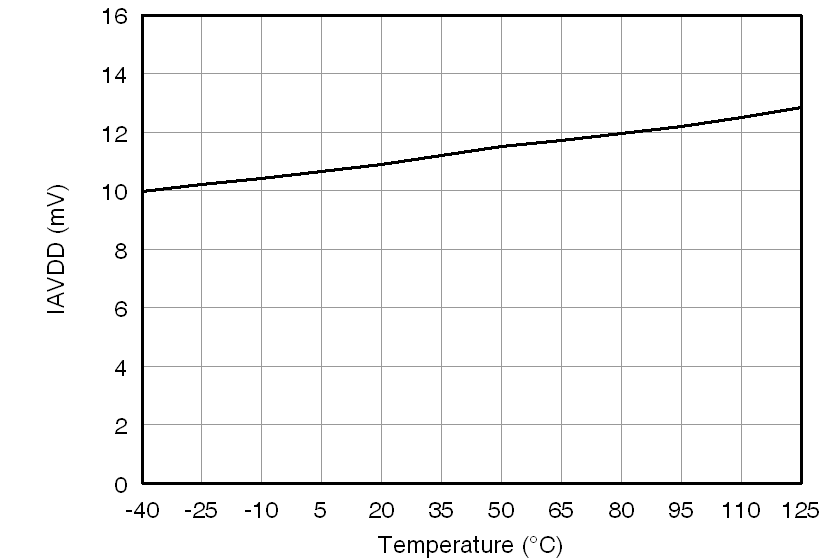

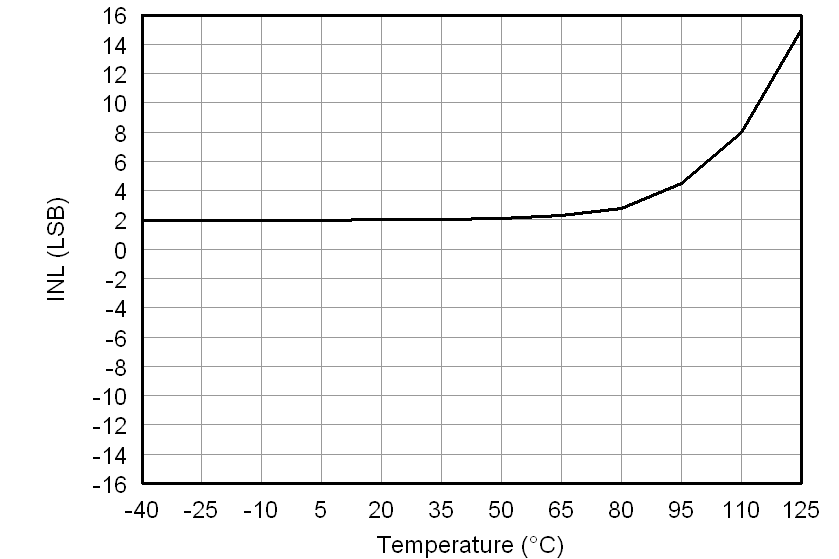

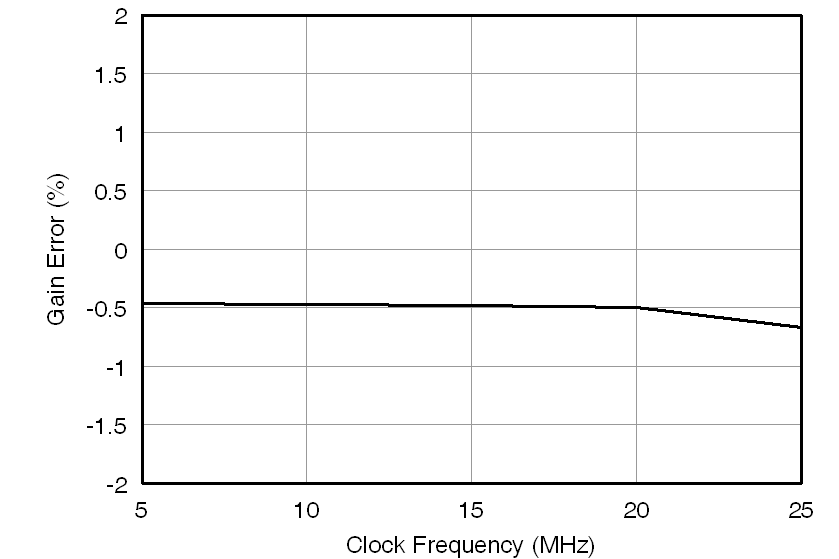

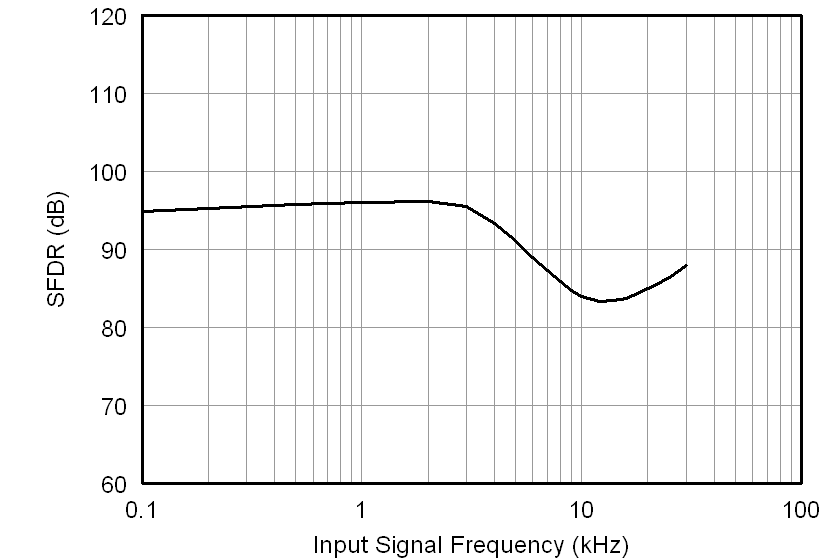

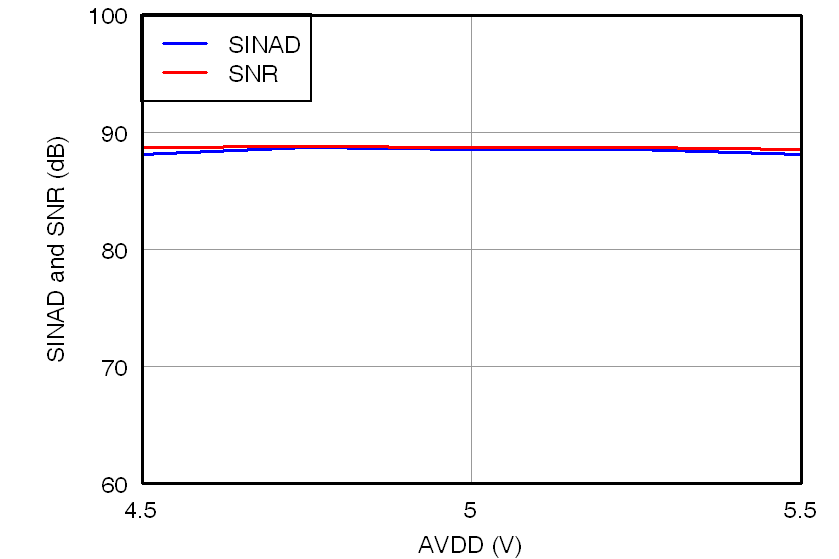

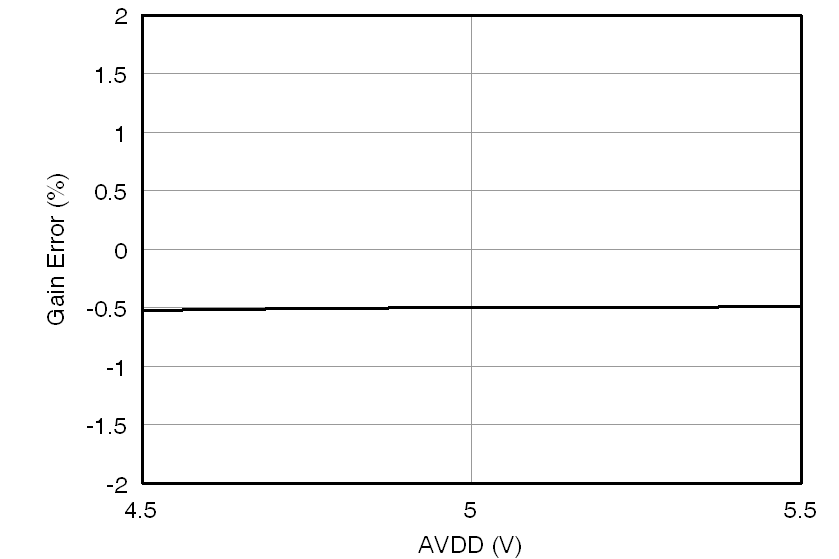

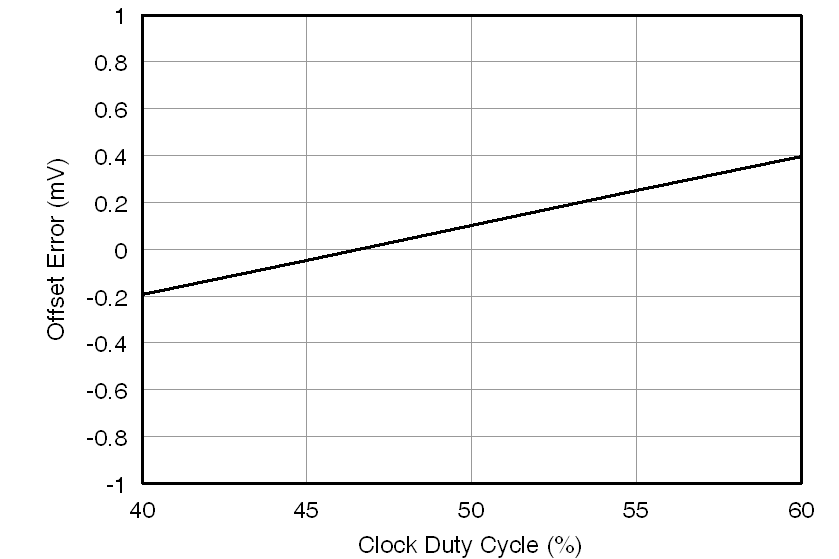

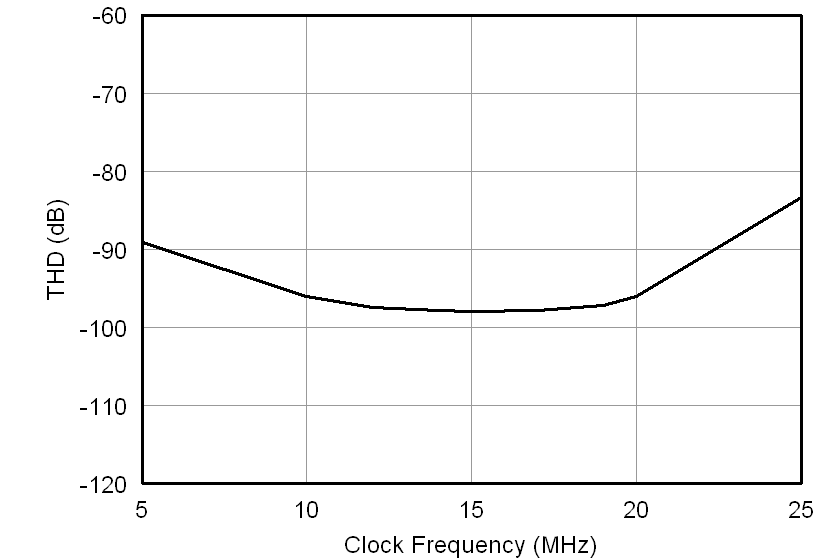

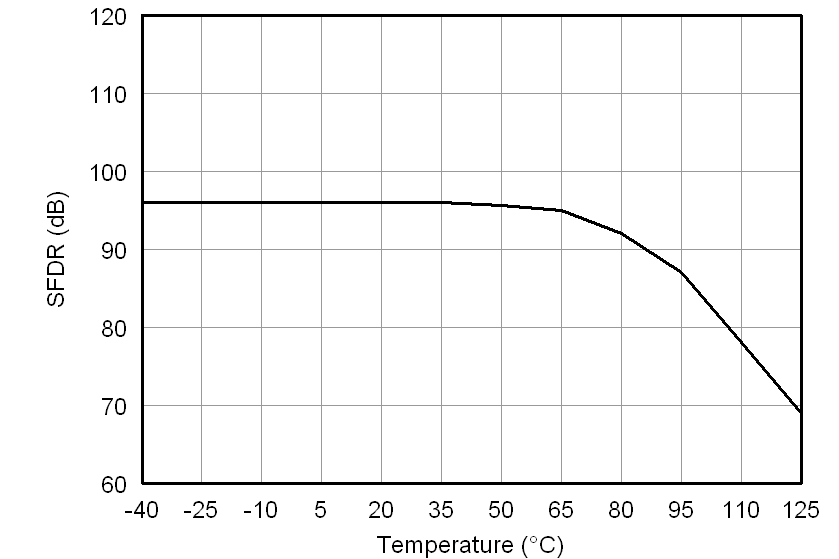

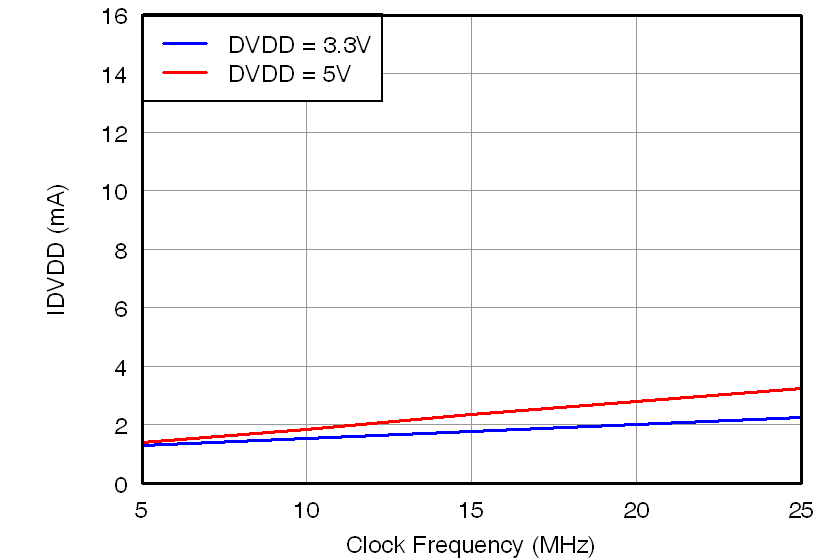

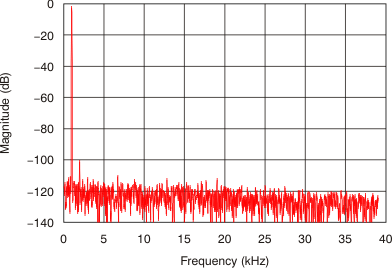

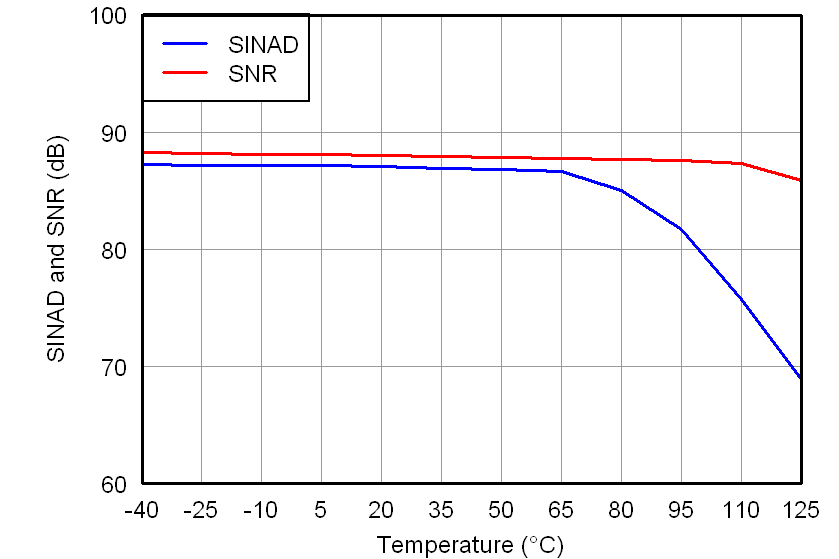

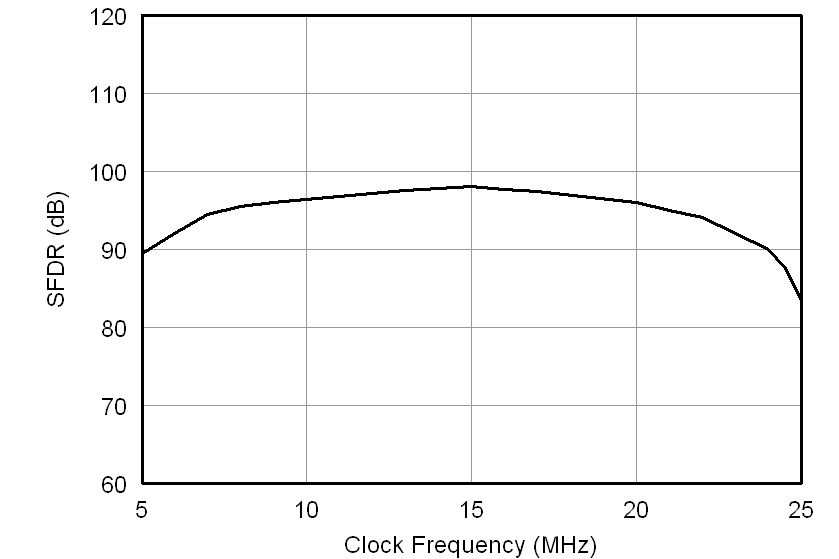

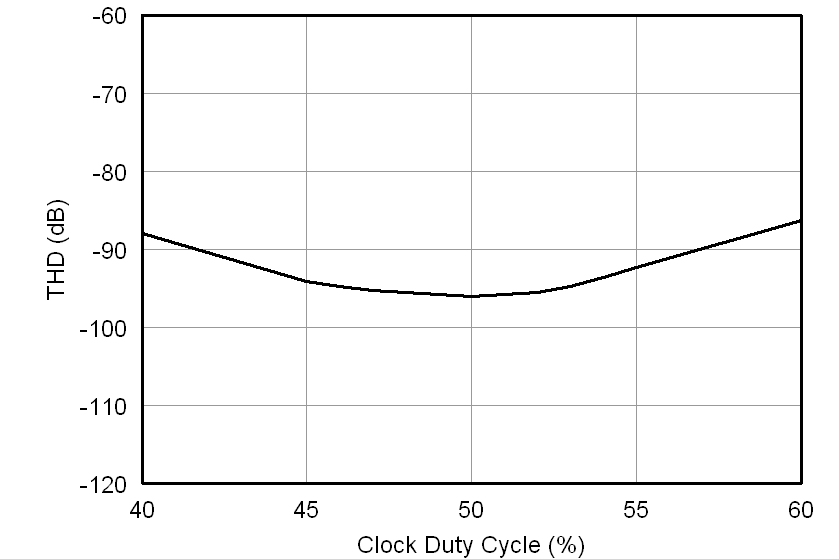

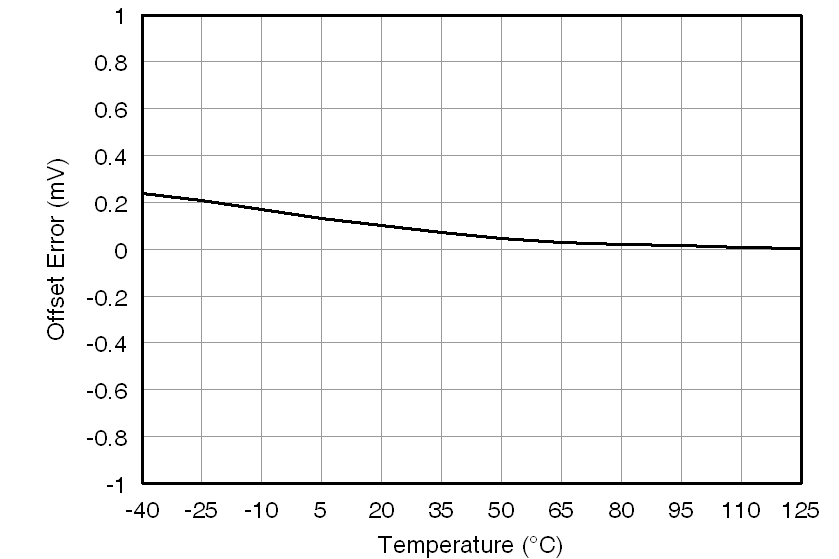

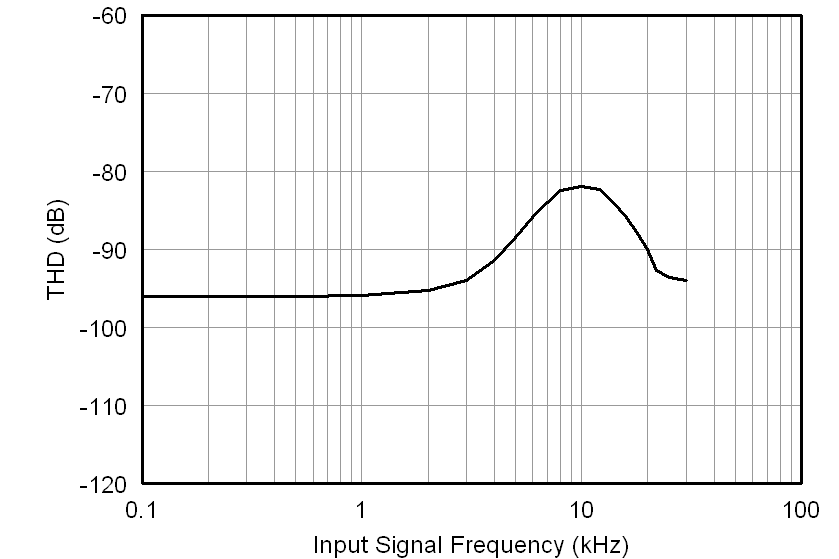

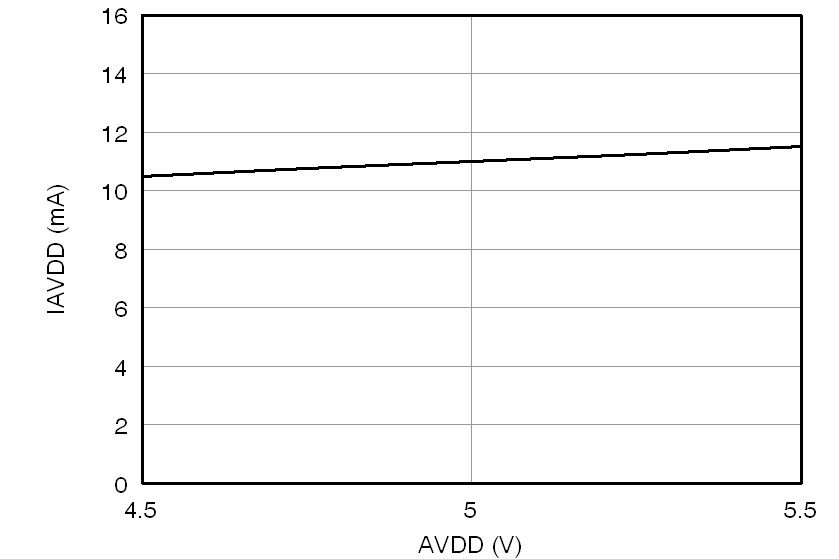

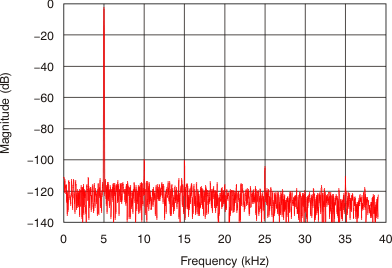

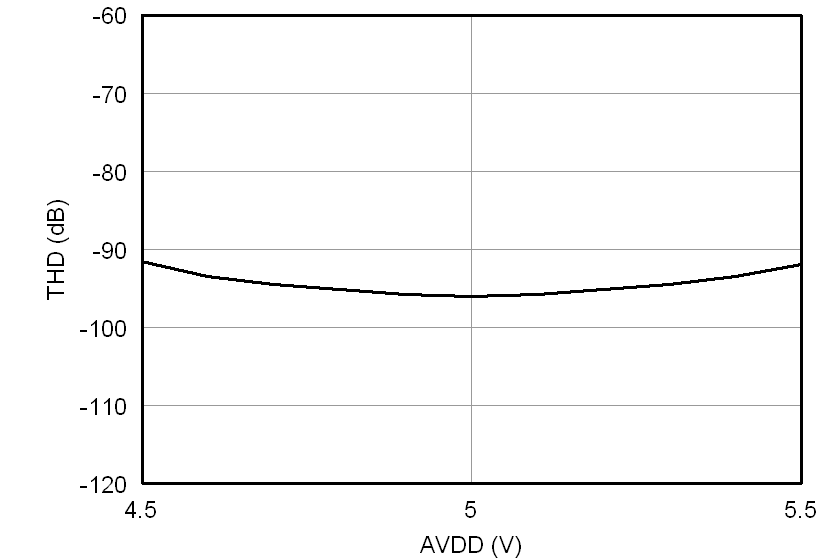

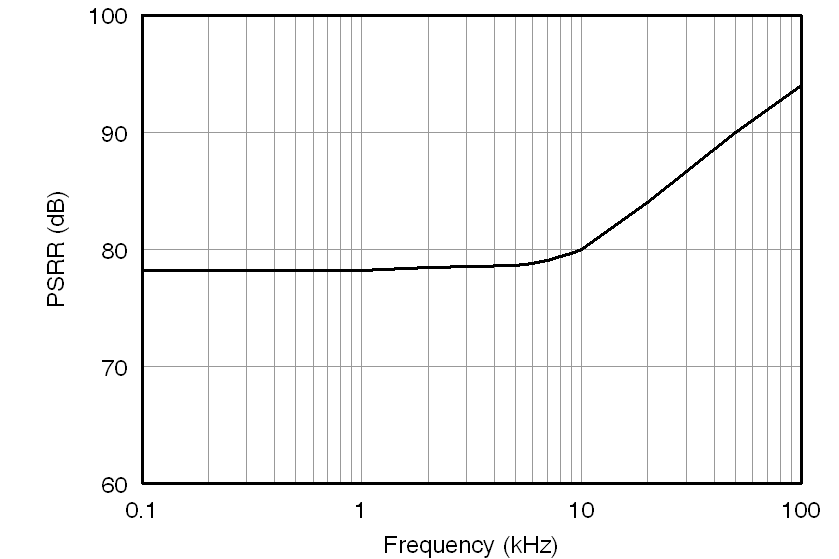

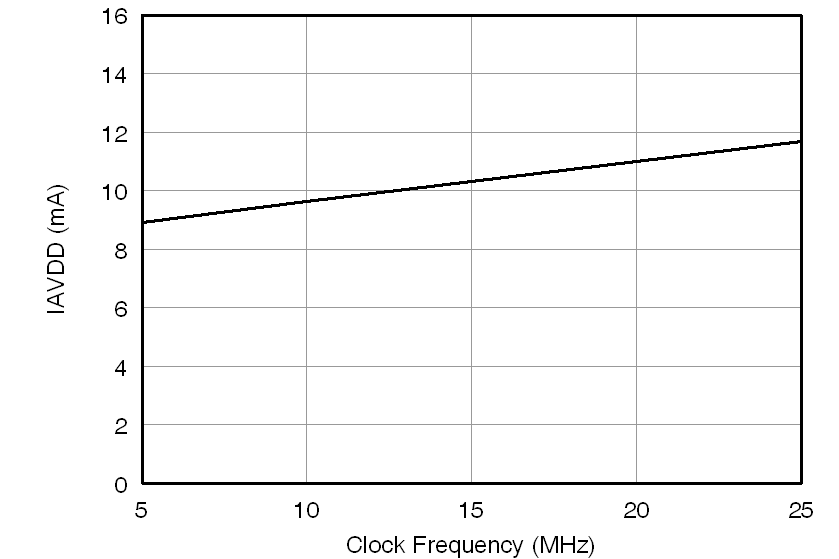

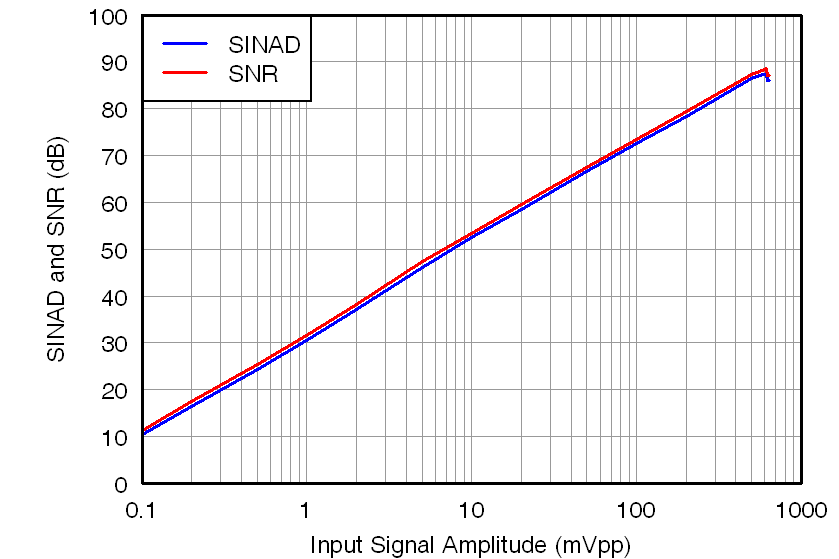

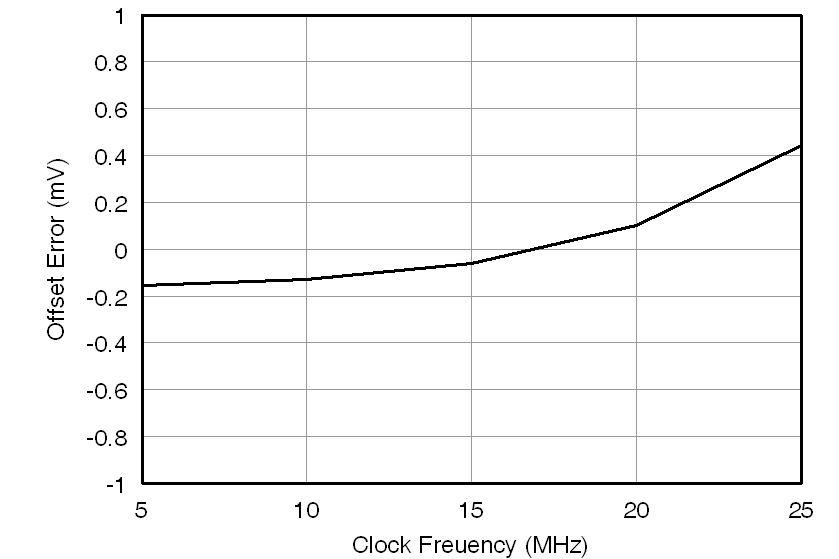

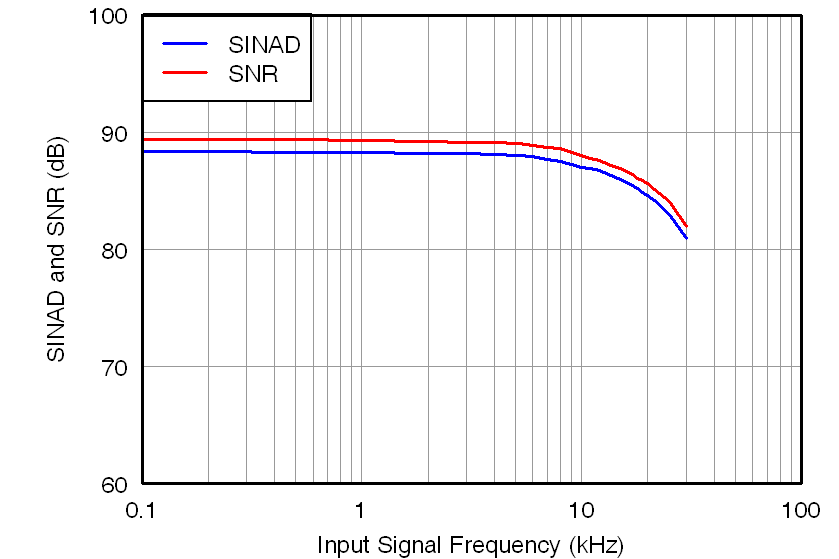

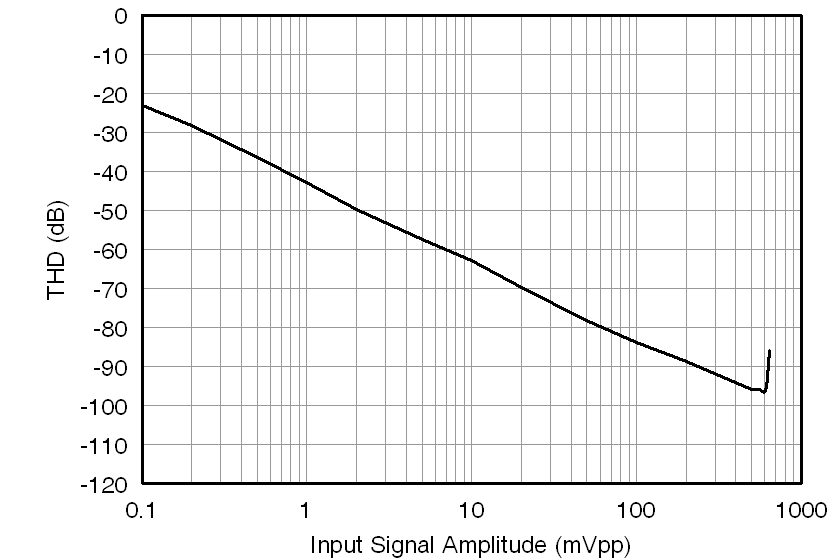

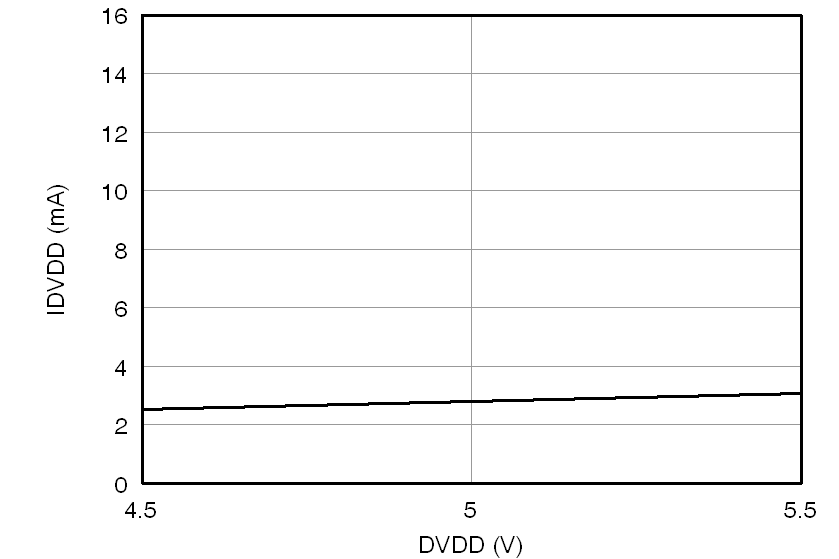

6.12 Typical Characteristics
at AVDD = 5 V, DVDD = 3.3 V, VINP = –250 mV to 250 mV, VINN = 0 V, and sinc3 filter with OSR = 256 (unless otherwise noted)
