6.10 Timing Requirements
Over recommended ranges of supply voltage and operating free-air temperature, unless otherwise noted. (See Figure 1)| MIN | NOM | MAX | UNIT | ||
|---|---|---|---|---|---|
| tCLK | CLKIN clock period | 45.5 | 50 | 200 | ns |
| tHIGH | CLKIN clock high time | 20 | 25 | 120 | ns |
| tLOW | CLKIN clock low time | 20 | 25 | 120 | ns |
| tD | Delayed falling edge of CLKIN to DATA valid | 2 | 15 | ns | |

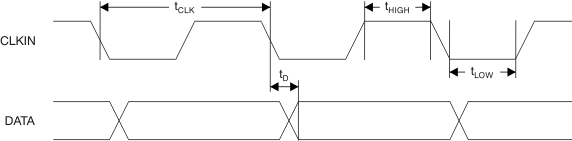

Figure 1. Modulator Output Timing
