8.3 Initialization Set Up
After power-up, the internal registers must be initialized to their default values through a hardware reset by applying a low pulse on the RESET pin, as shown in Figure 8-8.
- Apply 1.2 V DVDD digital power supply
- Apply remaining 1.2 V power supplies (AVDD12, CLKVDD), in no specific order
- Apply 1.8 V AVDD18 power supply
- Apply hardware reset. After hardware reset is released, the default registers are loaded from internal fuses.
- Begin programming the internal registers using the SPI interface.

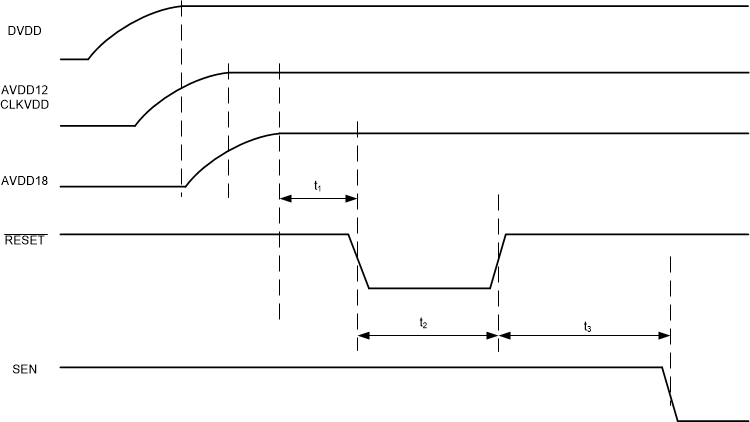

Figure 8-8 Initialization of serial registers after power upTable 8-2 Power-up timing
| MIN | TYP | MAX | UNIT | ||
|---|---|---|---|---|---|
| t1 | Power-on delay: delay from power up to active high RESET pulse | 1 | ms | ||
| t2 | Reset pulse width: active low RESET pulse width | 100 | ns | ||
| t3 | Register write delay: delay from RESET disable to SEN active | 45k | Clock cycles | ||
