7.3.1.4 Analog out-of-band dither
The ADC32RF5x provides optional (enabled via SPI writes) analog out-of-band, large amplitude dither. It has a bandwidth of ~ 20 MHz located at DC and an adjustable amplitude with a maximum dither power of ~ -20 dBFS (PAR ~ 9 dB). The dither is completely rolled-off into the noise floor within ~ 100 MHz as illustrated in Figure 7-7. Since the dither is large amplitude, it is recommended for the signal input not to exceed -2.5 dBFS to avoid input saturation. The dither signal also couples to the input signal and, depending on input frequency, can degrade the close in phase noise.

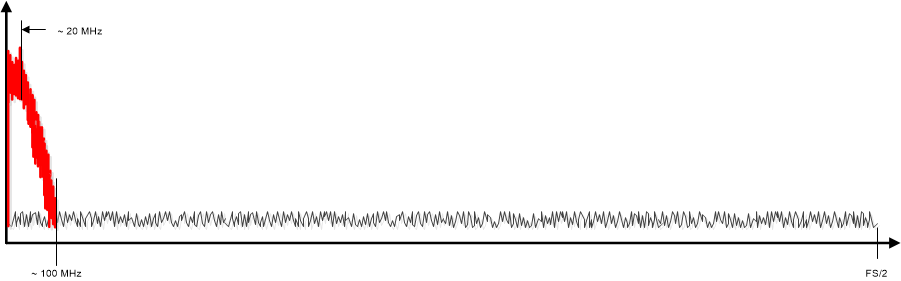

Figure 7-7 Analog out-of-band ditherIn the frequency domain the dither signal shows up like individual tones as shown in Figure 7-12. The dither update frequency can be adjusted with the dither divider setting. The dither update frequency is: FS / 4 / 2047 / 'Dither Divider'. In the frequency spectrum there will be 2 larger dither spurs at FIN +/- FS / 4 / 'Dither Divider'.
By default, the divider is set to 50, which translates to a dither spur spacing of ~ 7 kHz. A divider setting of 32 translates to a dither spacing of ~ 11 kHz as shown in Figure 7-9. The lower the divider setting, the higher the dither tone frequency. Figure 7-9 also shows that the dither energy reduces as the offset frequency increases - less dither energy reduces the higher harmonic spur improvement.
Figure 7-8 Dither Close-Up
Figure 7-9 Dither vs Dither Divider SettingThe analog dither needs to be enabled in multiple locations. Different dither amplitudes should be used depending on internal averaging used as shown in Table 7-5.
| Mode | Amplitude | Dither Amp1 | Dither Amp2 |
|---|---|---|---|
| 1x AVG | +/-1024 codes | 0 | 0 |
| 1x AVG | +/-768 codes | 0 | -4 |
| 2x/4x AVG | +/-1024 codes | 3 | 0 |
| 2x/4x AVG | +/-768 codes | 0 | 0 |
The internal analog dither can be enabled via the following register writes. The dither divider is set in register 0xB1 as actual -1 (e.g. a divider of 48 would be programmed as 47, default is 0x00 which is divider = 50). See Table 7-9.
| ADDR | DATA | DESCRIPTION | ADDR | DATA | DESCRIPTION | |
|---|---|---|---|---|---|---|
| 0x05 | 0x40 | Select ANALOG page | 0xB1 | 0x00 |
Sets dither divider. 0x00 = /50 | |
| 0xA8 | 0x00 | DITHER AMP1: 3 = 0x80, 0 = 0x00 | 0xB2 | 0x00 | ||
| 0xCD | 0x00 | DITHER AMP2: -4 = 0x40, 0 = 0x00 | 0xAF | 0x18 | ||
| 0x04 | 0x01 | 0xAF | 0x10 | 0x10 = dither ENABLED, 0x90 = dither DISABLED | ||
| 0x20 | 0x04 | 0x04 | 0x01 | |||
| 0x91 | 0x40 | 0x20 | 0x00 | |||
| 0xAF | 0x10 | 0x04 | 0x00 |
