3 說明
TPS7A8300 是一款低噪聲 (6µVRMS),低壓降 (LDO) 穩壓器,能夠在壓降最大值只有 125mV 的情況下提供一個 2A 負載。
用戶完全可以通過印刷電路板 (PCB) 布局布線來調節 TPS7A8300 輸出電壓,而無需外部電阻器,從而減少元件總數量。 對于更高輸出電壓應用,此器件在使用外部電阻器的情況下可實現高達 5V 的輸出電壓。 借助于一個額外的偏置電壓軌,此器件支持極低輸出電壓(低至 1.1V)。
借助于極高精度(線路、負載和溫度范圍內達到 1%),遙感和可以減少涌入電流的軟啟動功能,TPS7A8300 非常適合為諸如高端微處理器和現場可編程門陣列 (FPGA) 等高電流、低電壓的器件供電。
TPS7A8300 針對高速通信應用中的加電噪聲敏感組件而設計。 極低噪聲,6-µVRMS器件輸出和高寬帶電源抑制比 (PSRR)(1MHz 時為
40dB)大大減少了高頻信號中的相位噪聲和時鐘抖動。 這些特性大大增加了計時器件、模數轉換器 (ADC) 和數模轉換器 (DAC) 的性能。

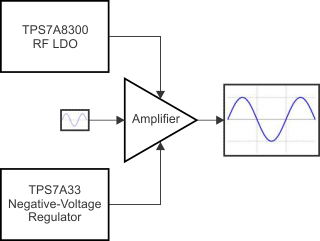

對于需要正向和負向低噪聲電源軌的應用,請考慮 TI 的TPS7A33負向高電壓、超低噪聲線性穩壓器系列產品。
| 部件號 |
封裝 |
封裝尺寸(標稱值) |
| TPS7A8300 |
超薄四方扁平無引線封裝 (VQFN) (20) |
5.00mm x 5.00mm |
| 超薄四方扁平無引線封裝 (VQFN) (20) |
3.50mm x 3.50mm |
- 如需了解所有可用封裝,請見數據表末尾的可訂購產品附錄。
