TIDT237 December 2022 TPS73801-SEP
2.1 Voltage Regulation

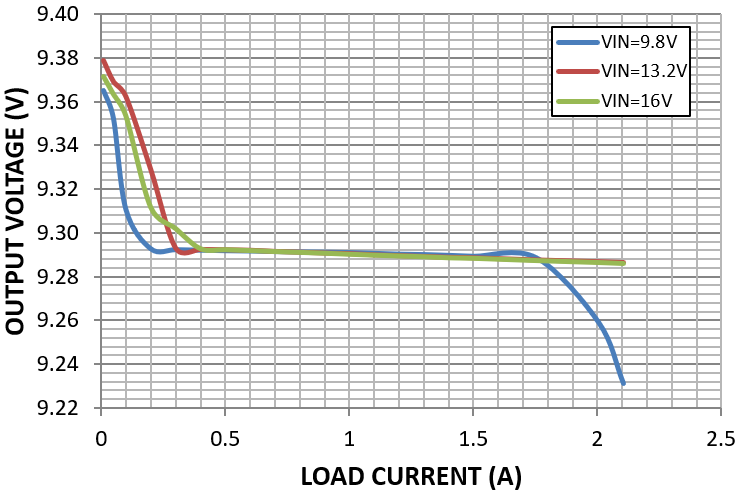

Figure 2-1 FPWM Line and Load Regulation,
VOUT = 9.32 V, Ta = 25°C

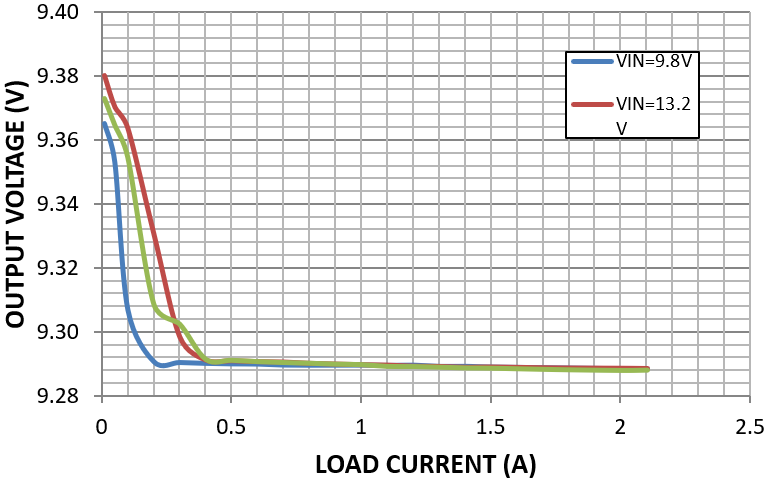

Figure 2-2 PFM Line and Load Regulation,
VOUT = 9.36 V, Ta = 25°C

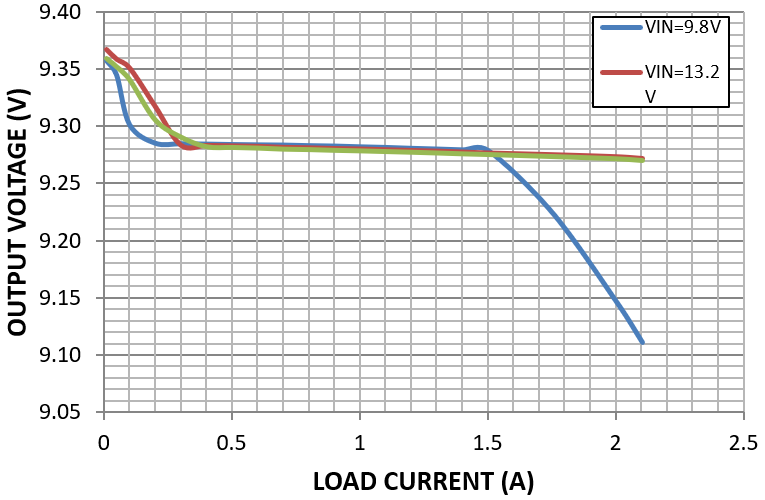

Figure 2-3 FPWM Line and Load Regulation,
VOUT = 9.32 V, Ta = –30°C

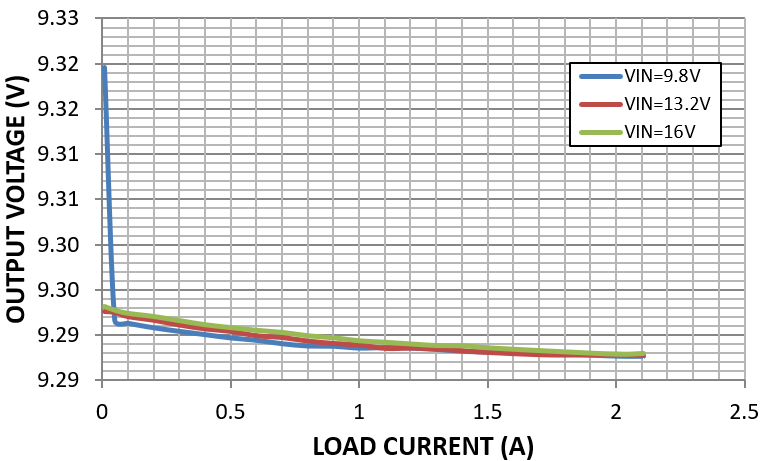

Figure 2-4 PFM Line and Load Regulation,
VOUT = 9.37 V, Ta = –30°C
Figure 2-5 FPWM Line and Load Regulation,
VOUT = 9.31 V, Ta = 85°C
Figure 2-6 PFM Line and Load Regulation,
VOUT = 9.22 V, Ta = 85°C
