TIDT236 March 2022 TPS7H1101A-SP
2.1 Efficiency Graphs

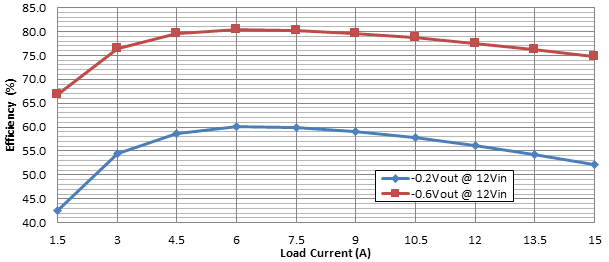

The following figure shows the converter efficiency for a 12-V input with –0.2-V and –0.6-V outputs with the output being swept from 1.5 A to 15 A.
Figure 2-1 PMP22194 Rev B, Converter
Efficiency 12-V Input, –0.2-V and –0.6-V Outputs
