6.8 CANFD Connector
The CAN connector provides access to the CAN_FD interfaces (CAN_L and CAN_H signals) from the onboard CAND-FD transceivers. These signals can be directly wired to the CAN bus.

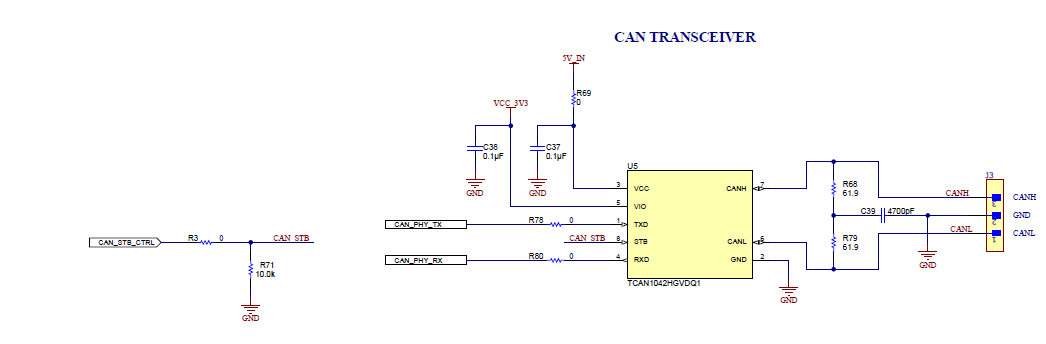

Figure 6-11 CANFD ConnectorThe J3 connector shown in Figure 6-11 provides the CAN_L and CAN_H signals from the onboard CAND-FD transceivers (TCAN1042HGVDRQ1). These signals are wired to the CAN bus after muxing with the SPI interface signals; one of the two paths must be selected. CAN signals are selected to PHY by changing the switch S1.5 to off position.

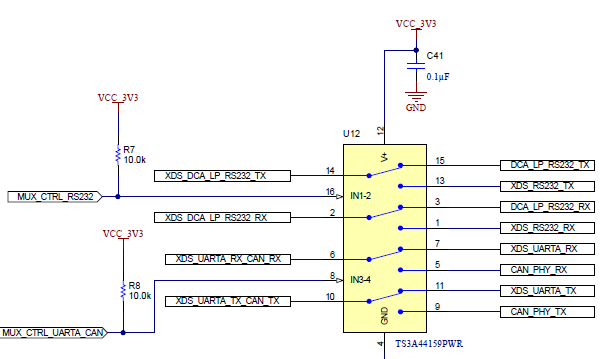

Figure 6-12 Analog Mux for the CAN PHY Switch
Figure 6-13 CAN FD PHY used in the EVM
