SNVU737A December 2020 – December 2021 LM5123-Q1
4.4 Start-up Waveforms
Figure 4-5 through Figure 4-8 show the start-up waveforms of the LM5123EVM-BST.

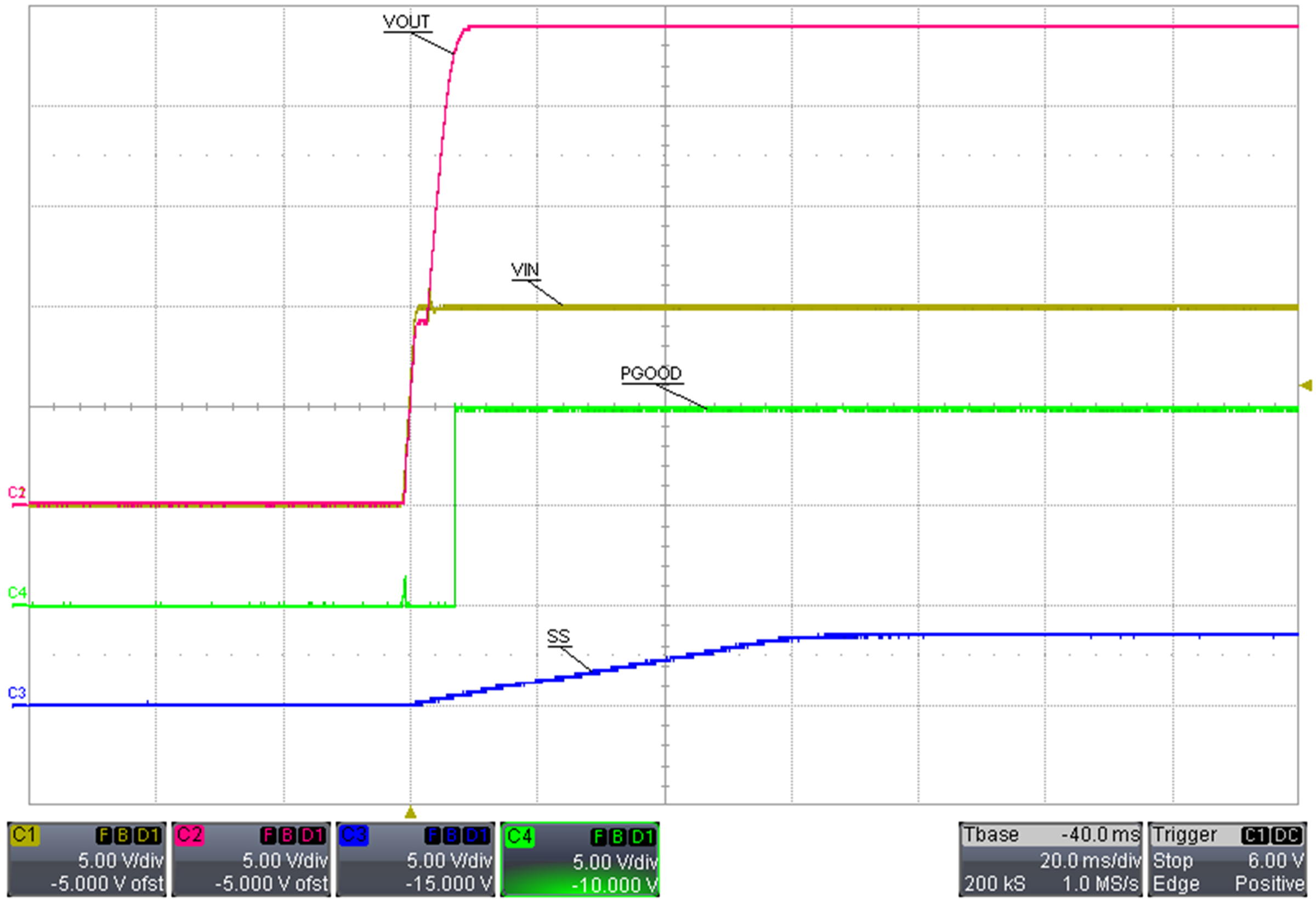

Figure 4-5 VIN = 8-V, VOUT = 24-V, POUT = 200-WFigure 4-7 VIN = 14-V, VOUT = 24-V, POUT = 200-W
Figure 4-6 VIN = 10-V, VOUT = 24-V, POUT = 200-W
Figure 4-8 VIN = 18-V, VOUT = 24-V, POUT = 200-W
