SNLU300A January 2023 – February 2023 DS160PR1601 , DS320PR1601
3 Schematics
Figure 3-1 through Figure 3-6 show the EVM schematics.

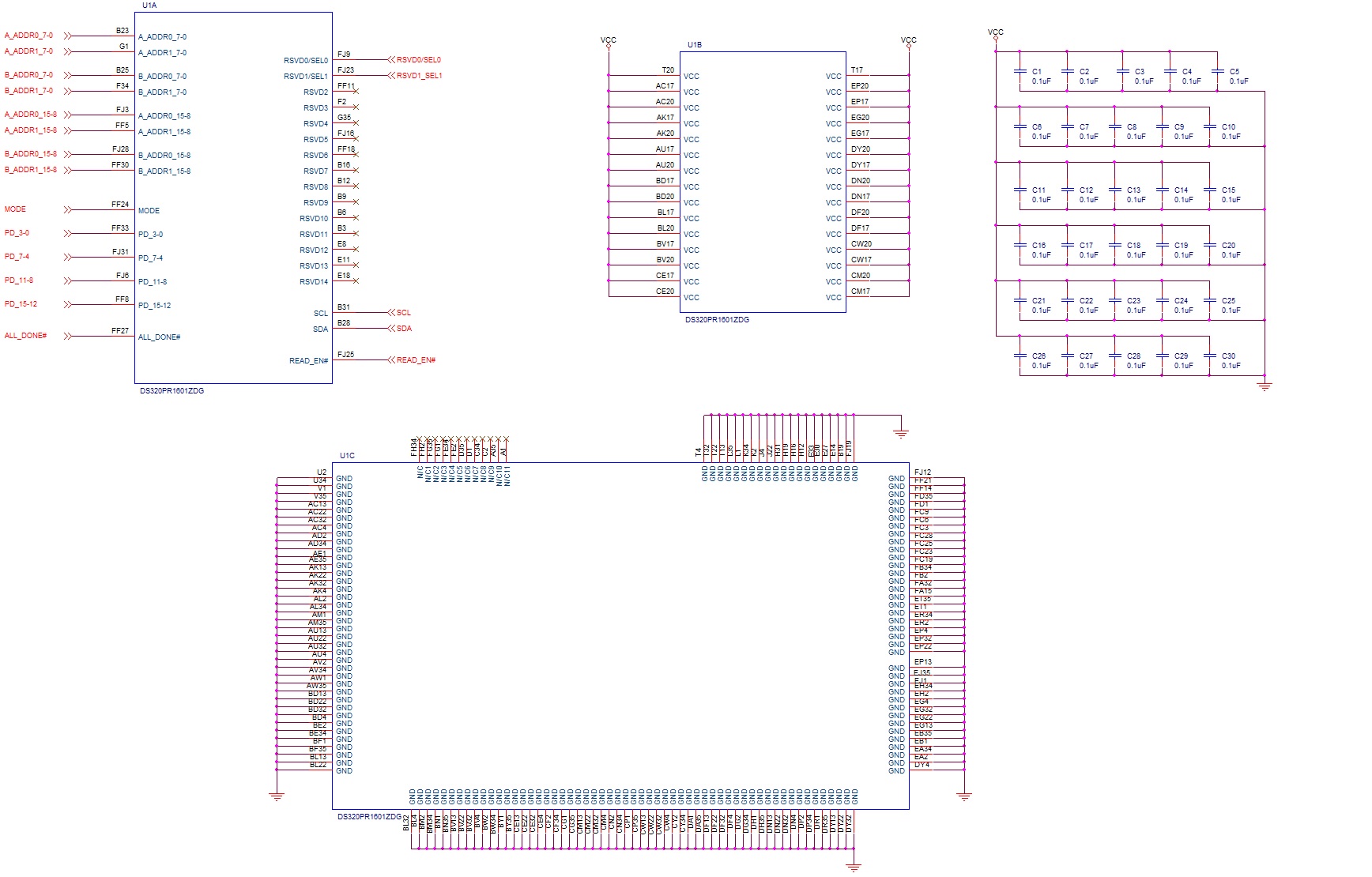

Figure 3-1 DS320PR1601 Control/MISC Pin Schematic Page

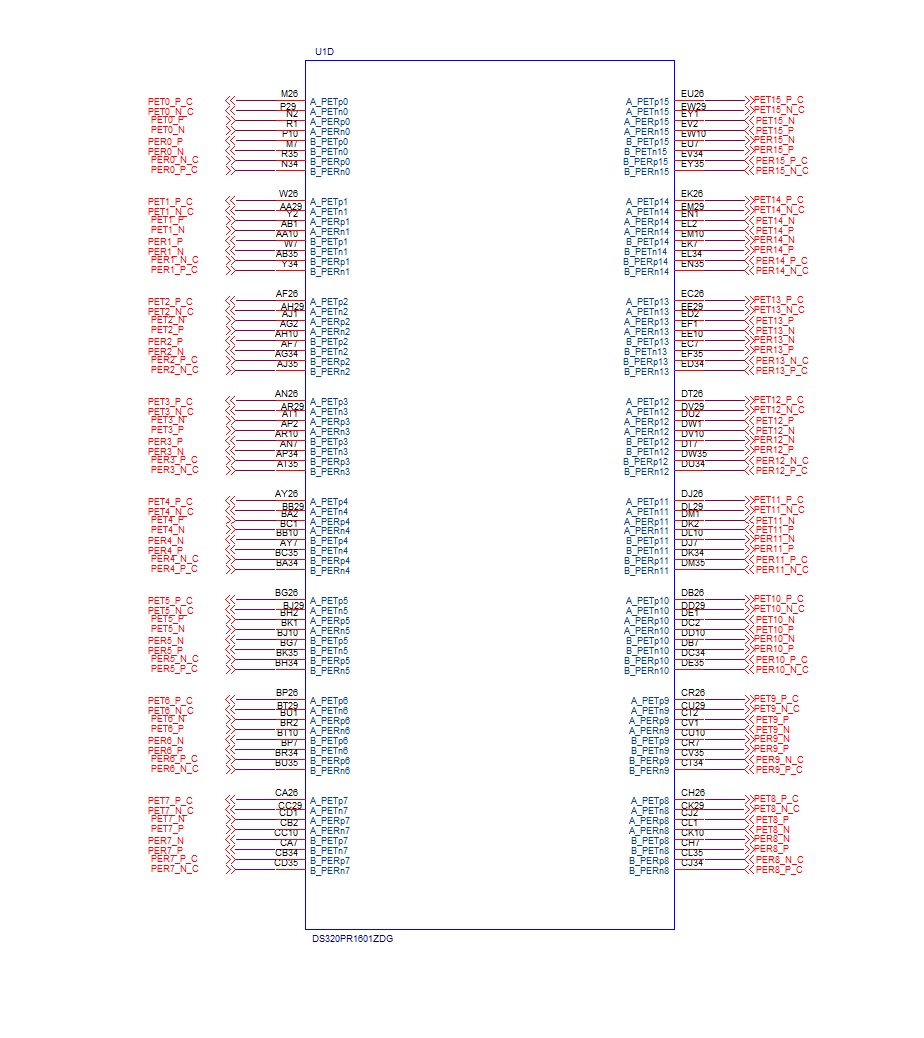

Figure 3-2 DS320PR1601 High-Speed Pin Schematic Page

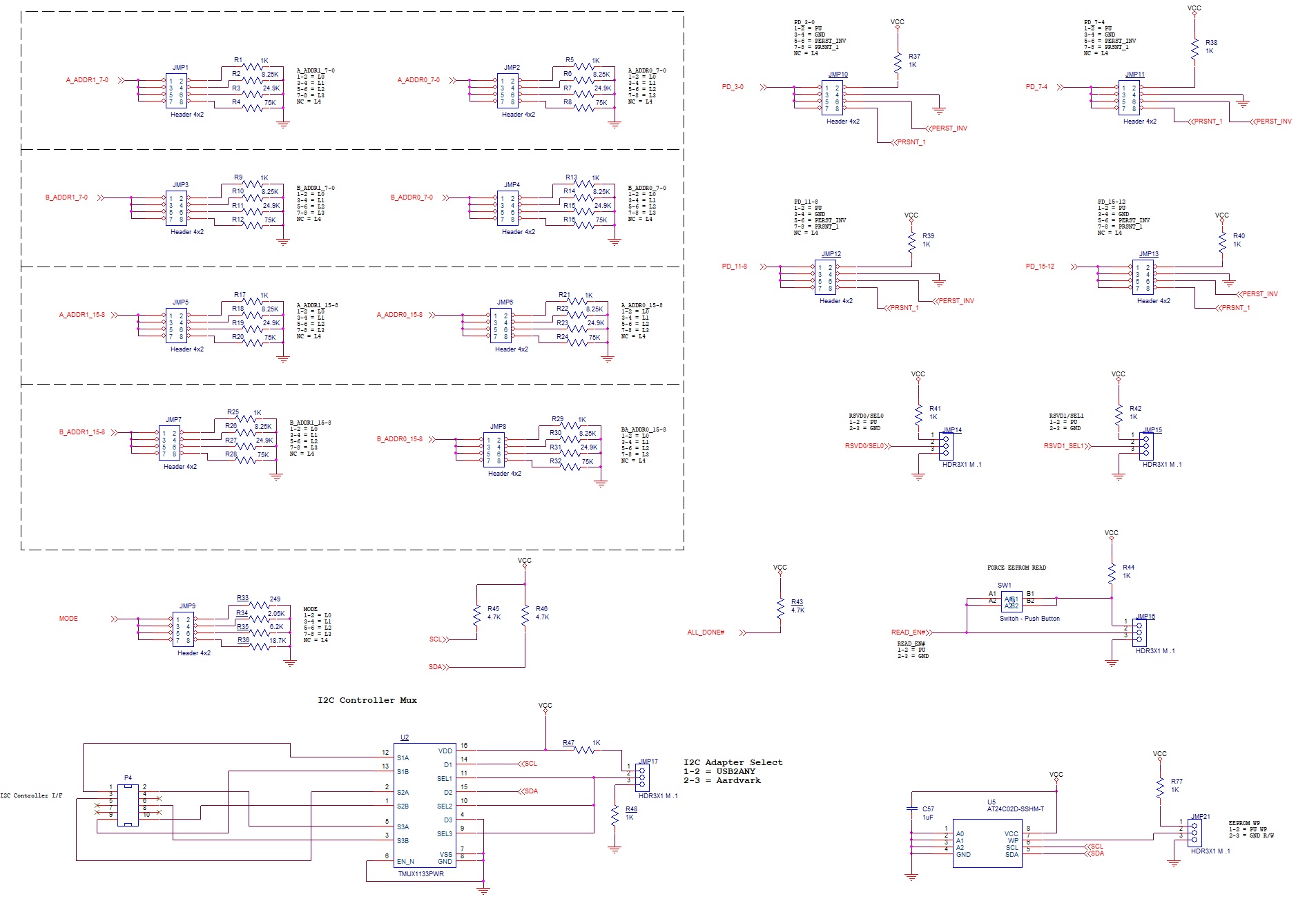

Figure 3-3 Control Pin Configuration Schematic Page

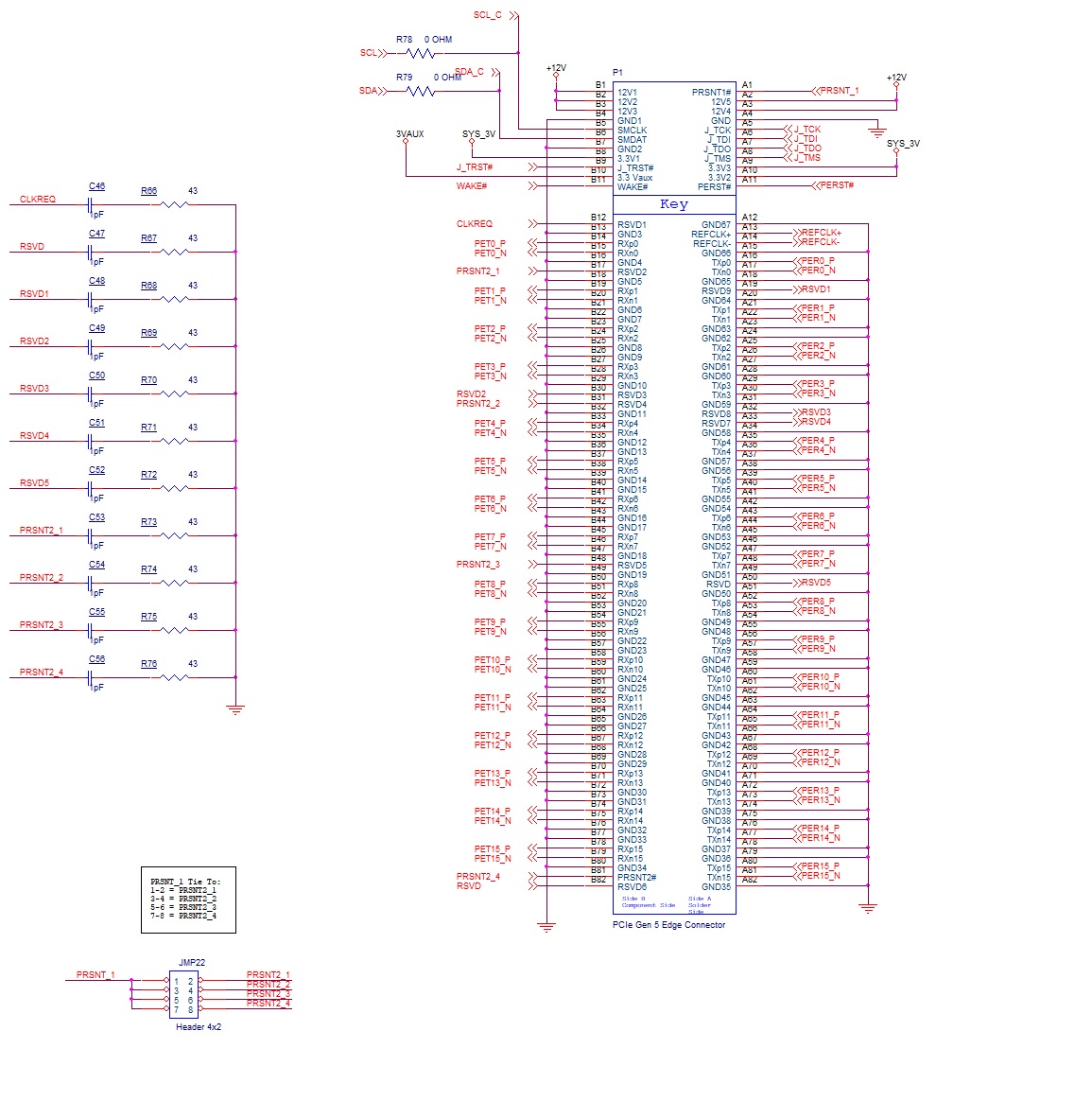

Figure 3-4 Gold Finger EDGE Connector Schematic Page

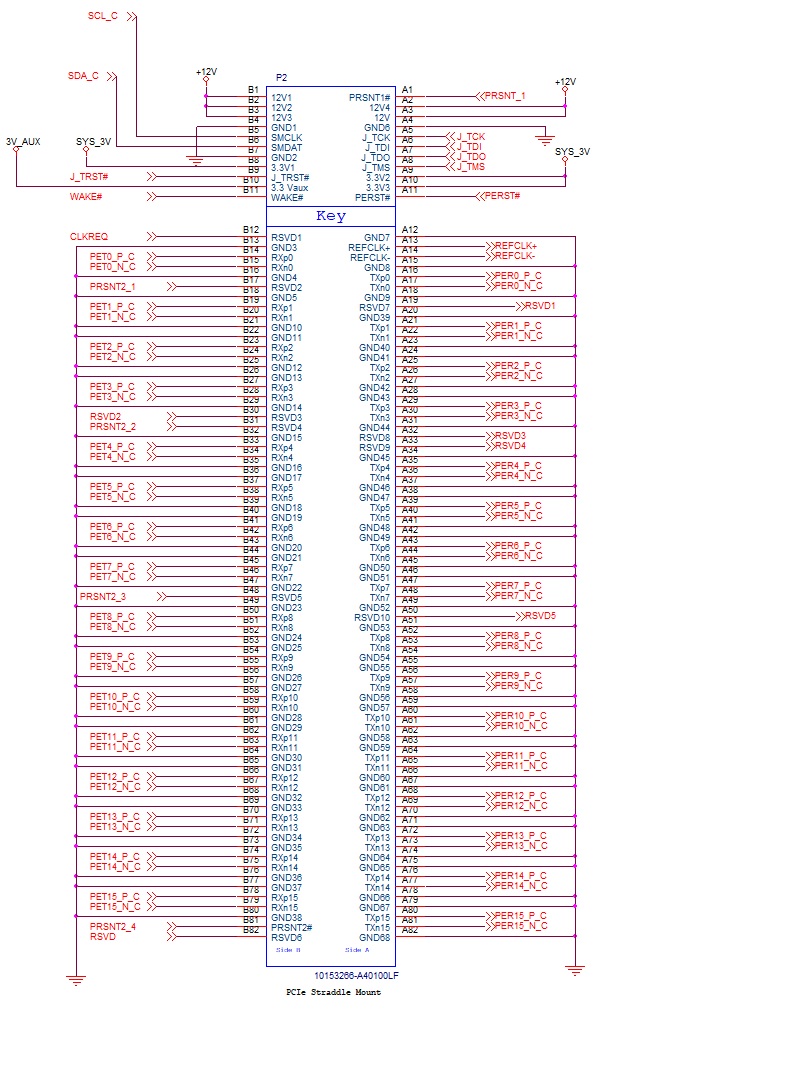

Figure 3-5 Straddle-Mount Connector Schematic Page

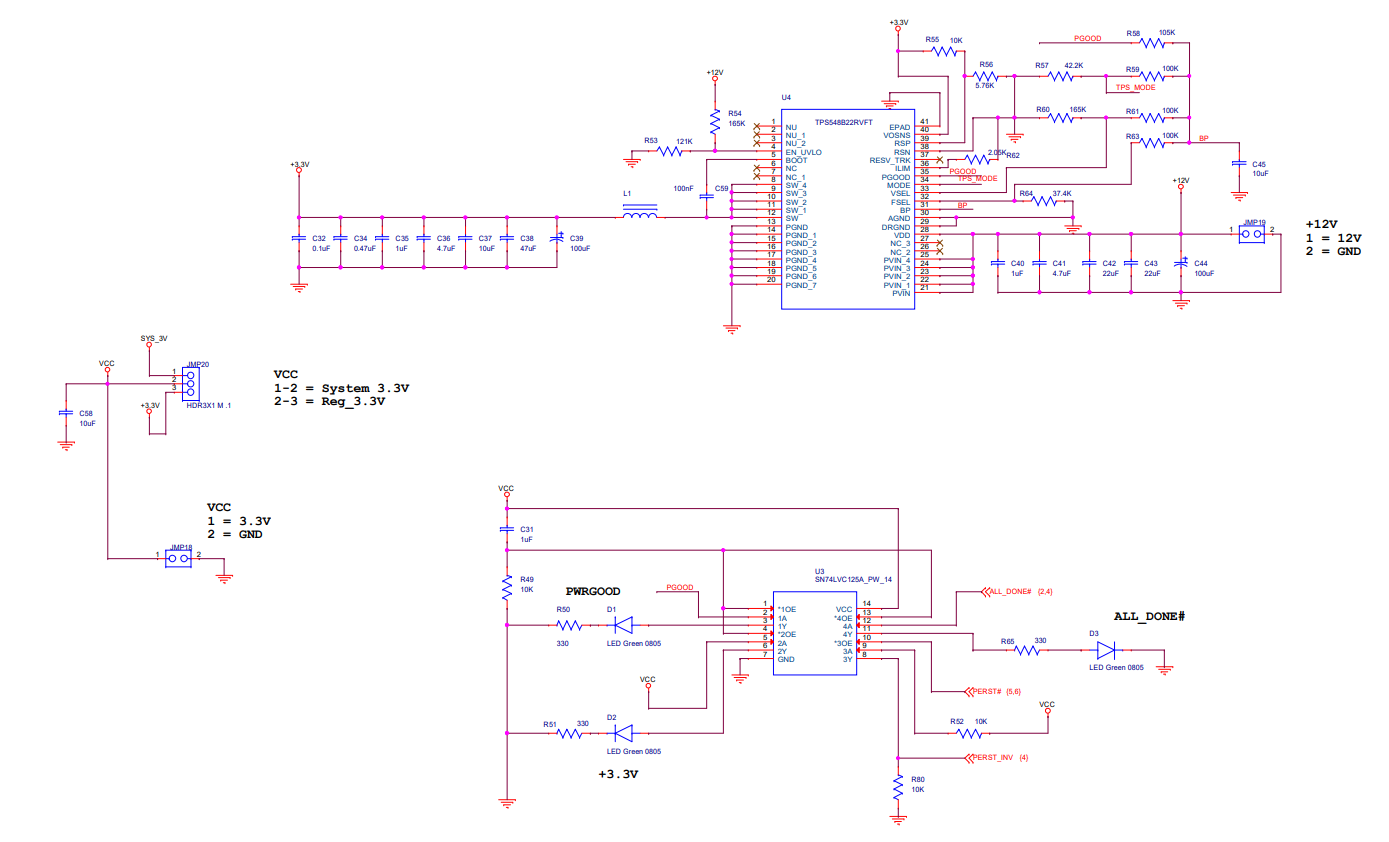

Figure 3-6 Voltage
Regulator Schematic Page
