4 Schematic

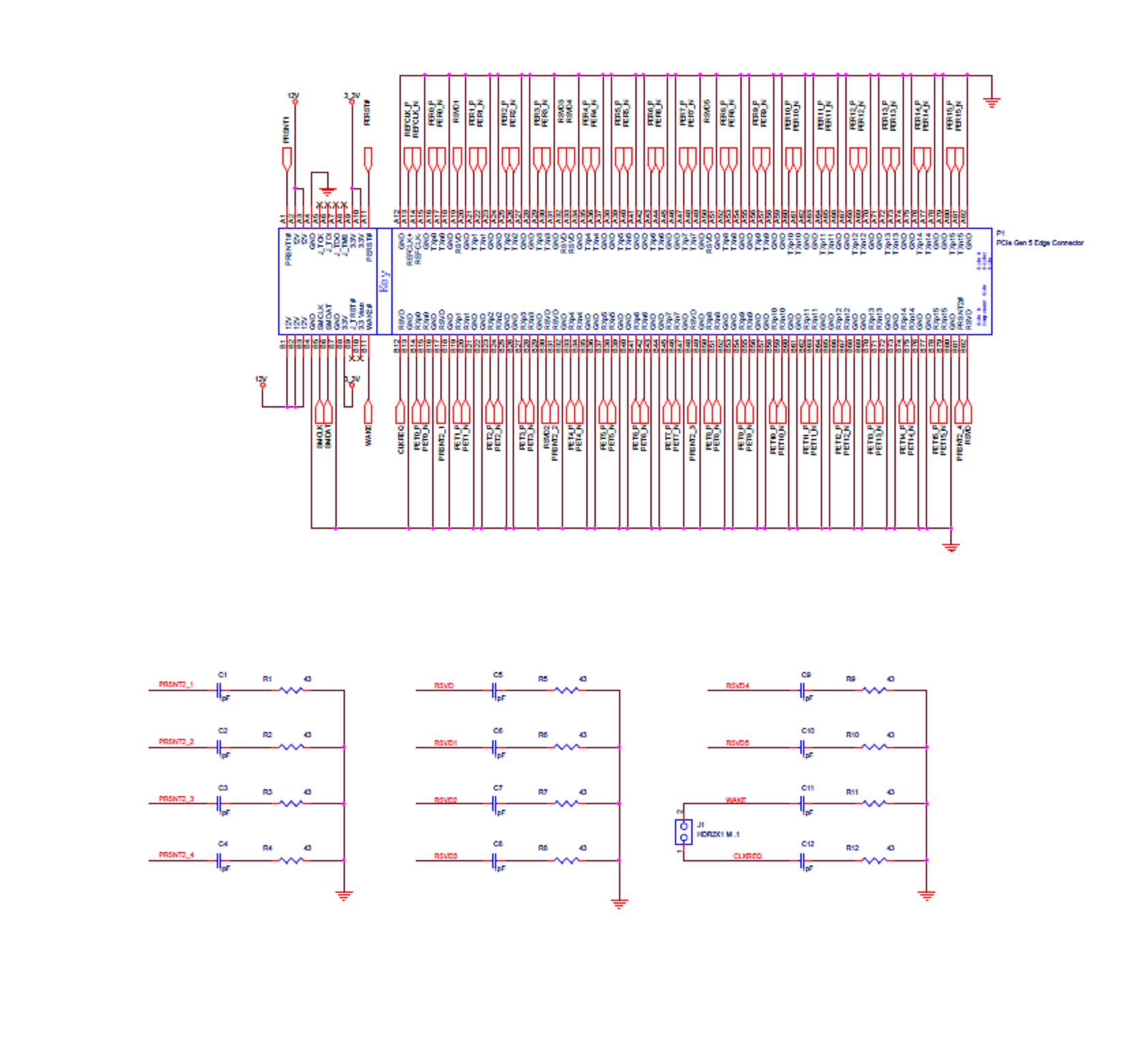

Figure 4-1 Controls

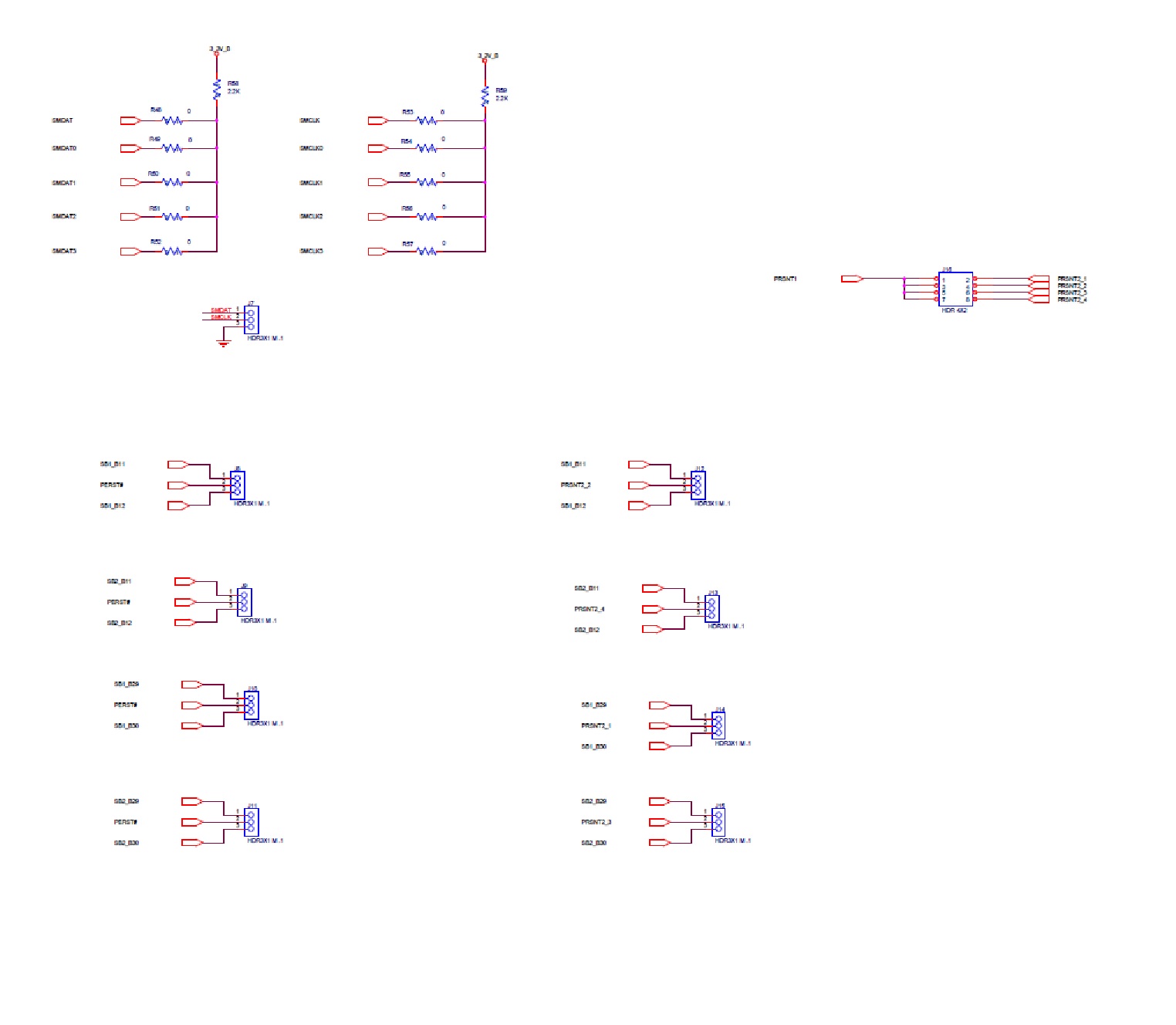

Schematic Page

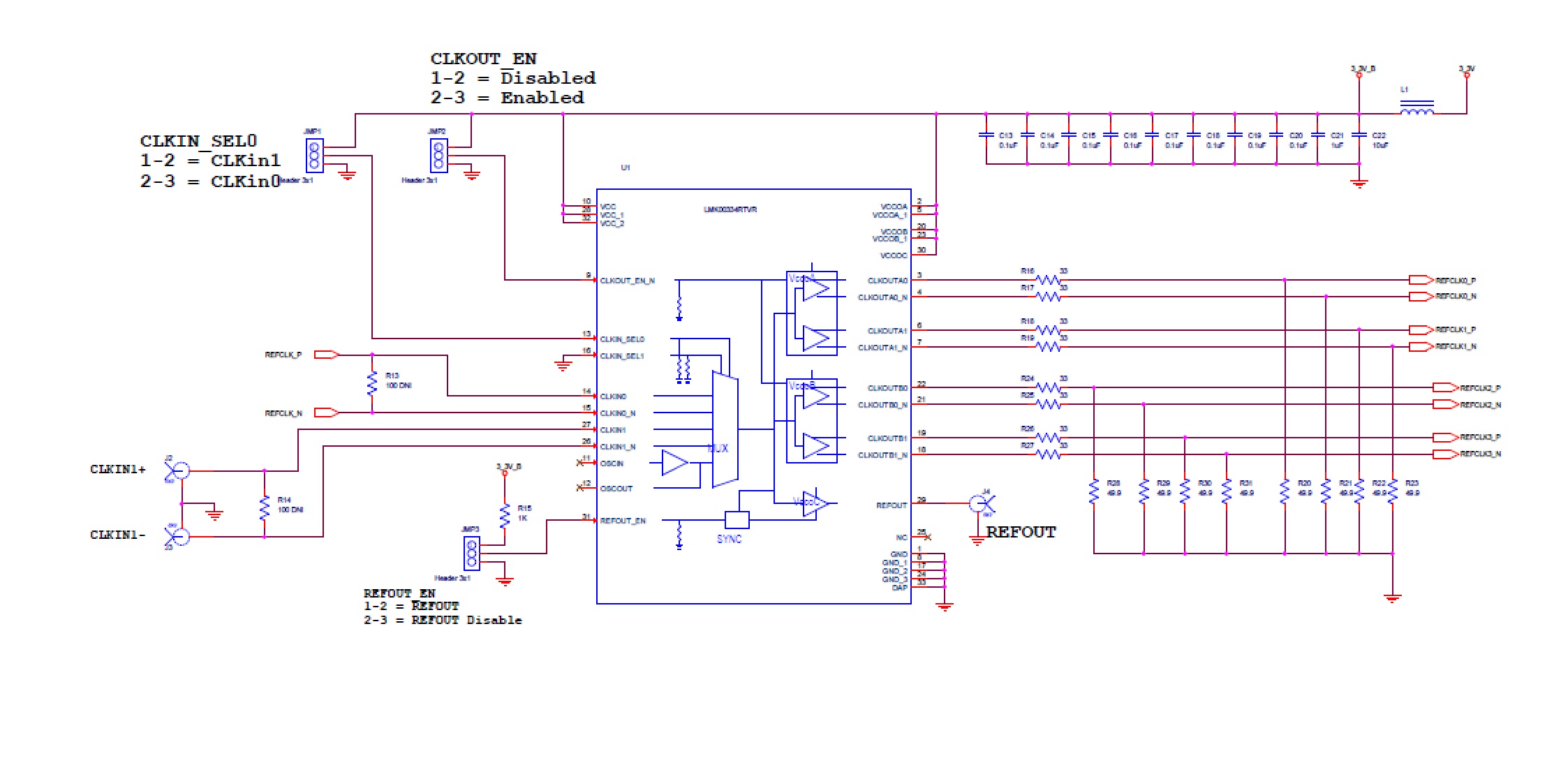

Figure 4-2 Clock
Distribution Schematic Page
Figure 4-3 Goldfinger Connector Schematic Page

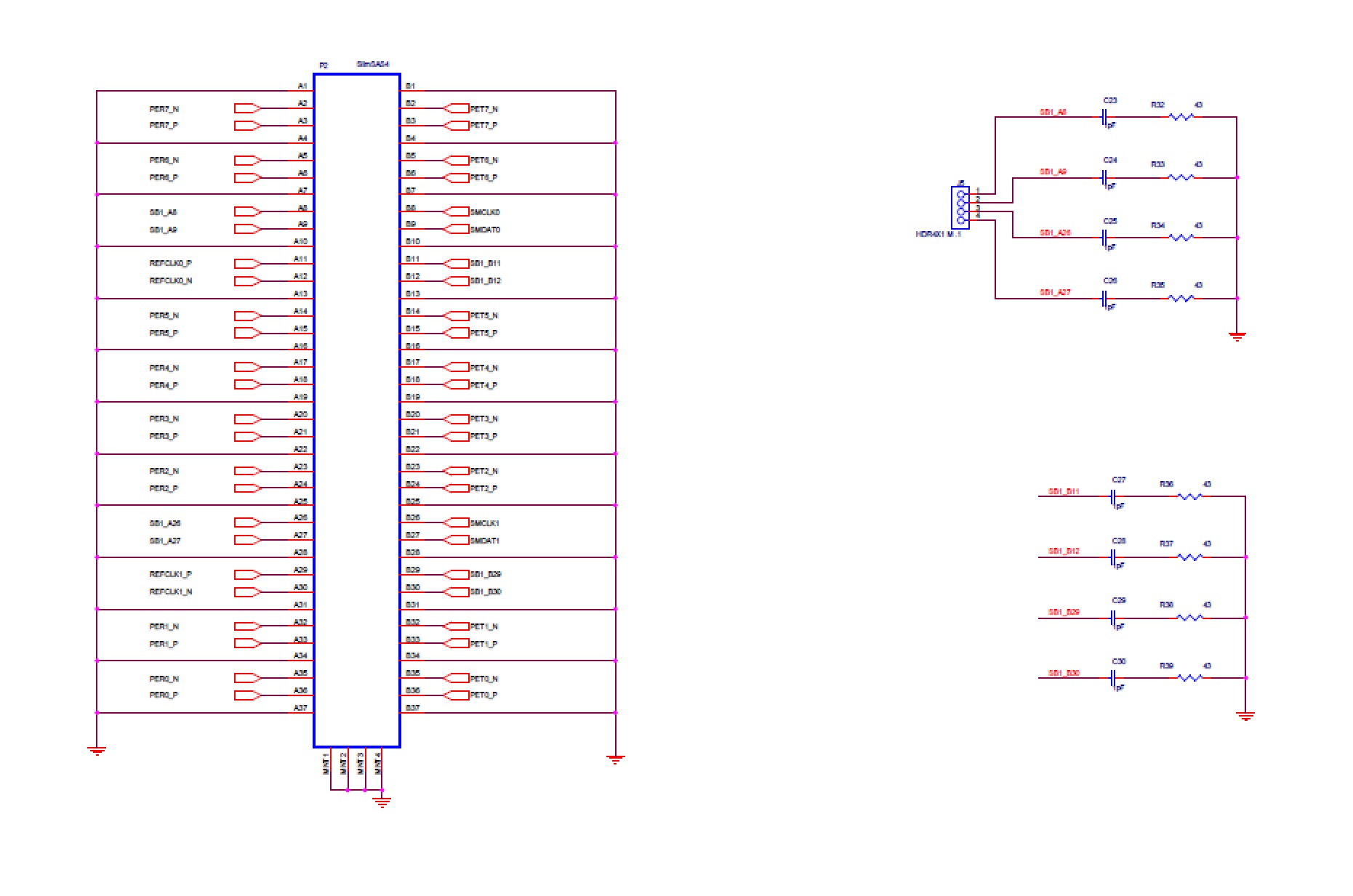

Figure 4-4 SlimSAS Connector 1 Schematic
Page

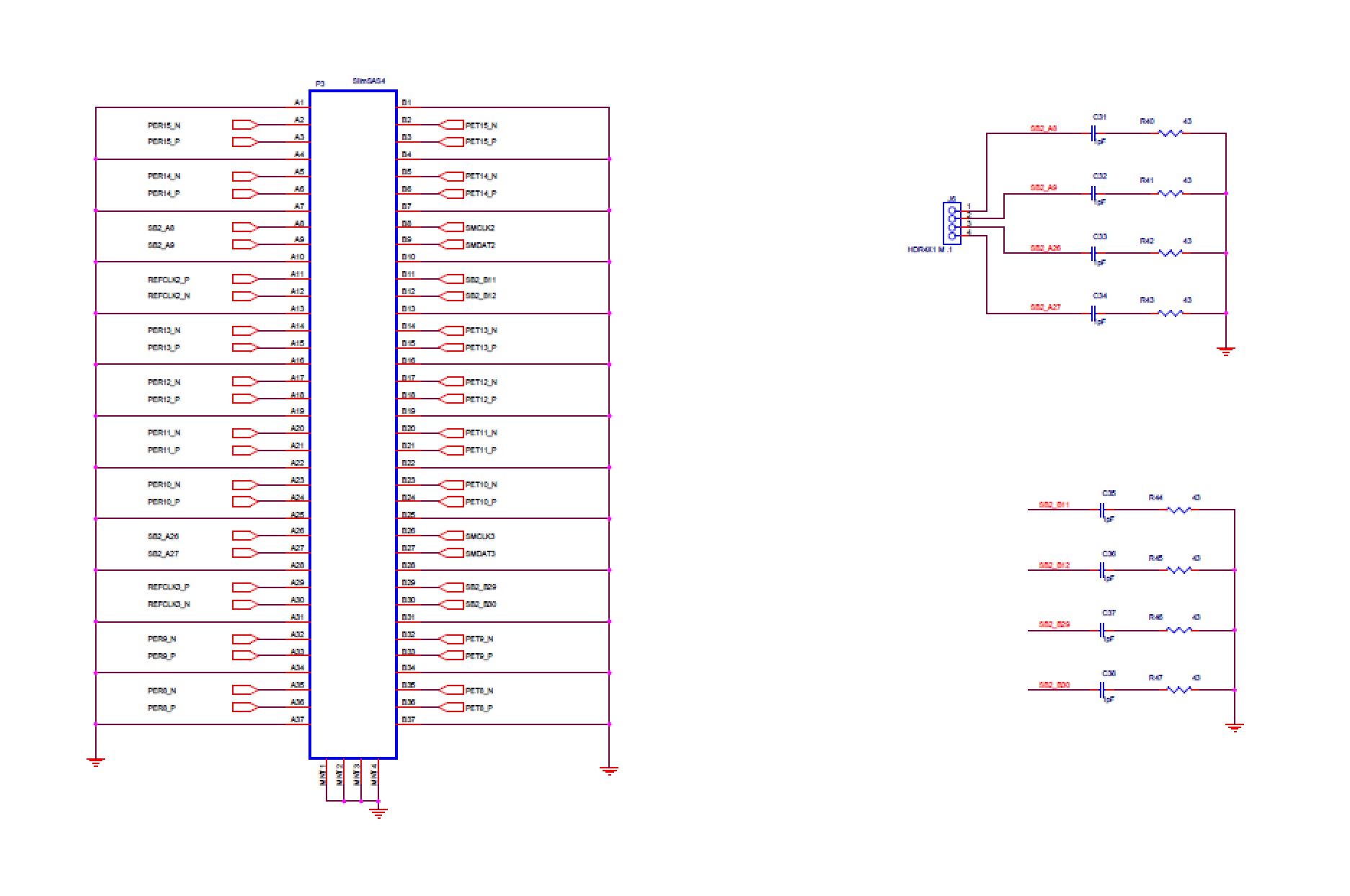

Figure 4-5 SlimSAS Connector 2 Schematic
Page
