4 Schematics
Figure 4-1 through Figure 4-8 illustrate the EVM schematics.

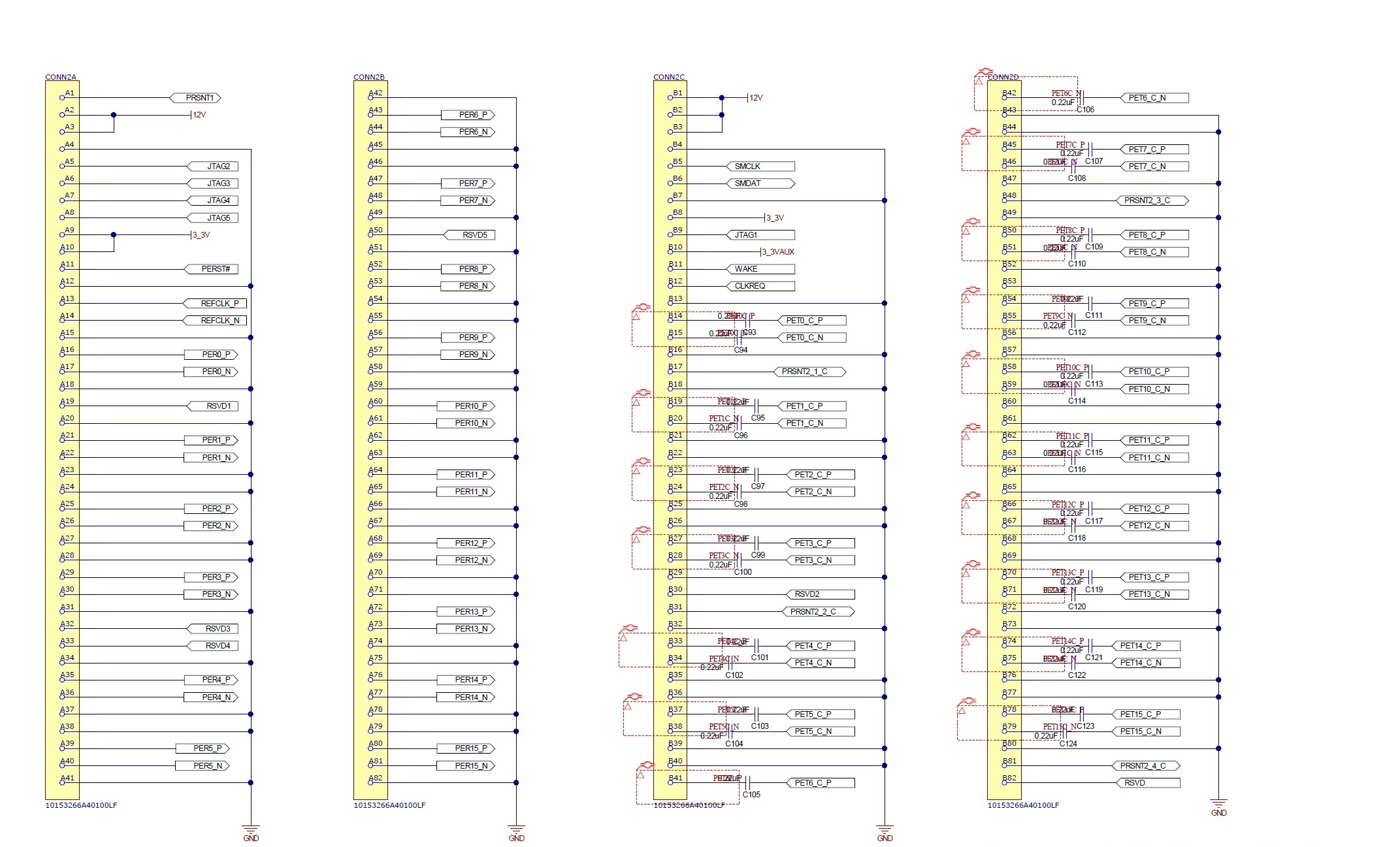

Figure 4-1 Top Level
Schematic Page

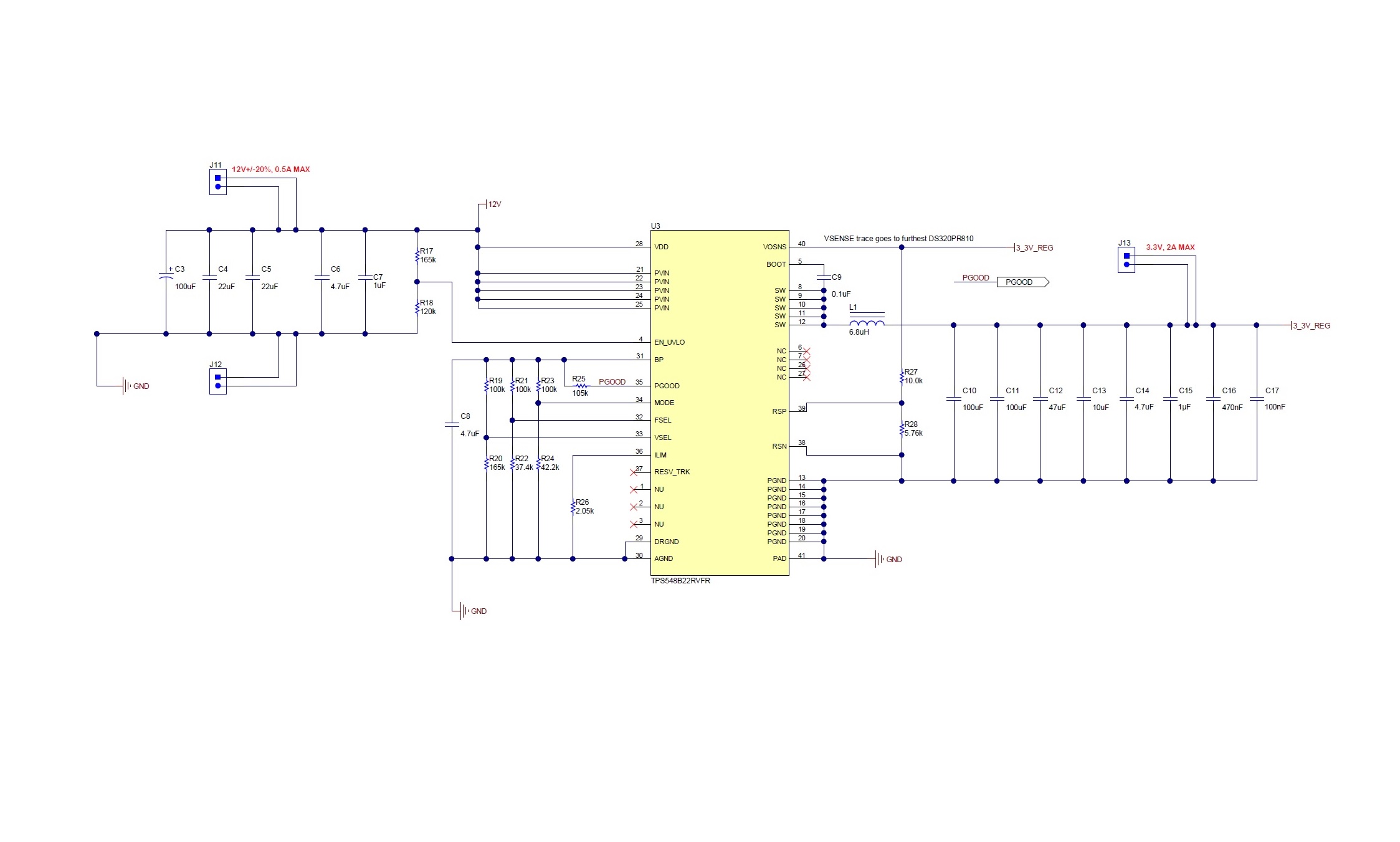

Figure 4-2 Control and Status Schematic Page

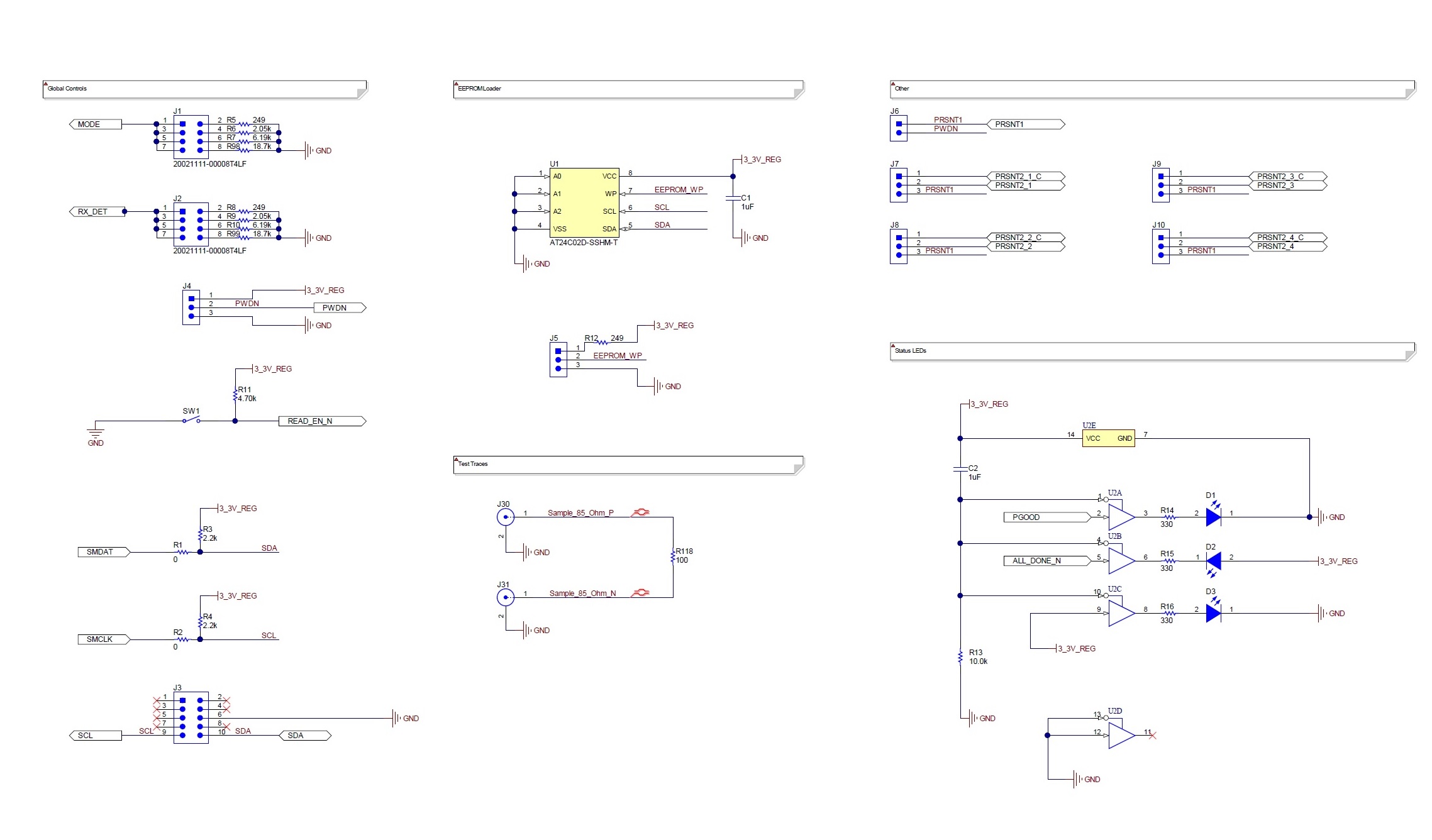

Figure 4-3 Voltage Regulator Schematic Page

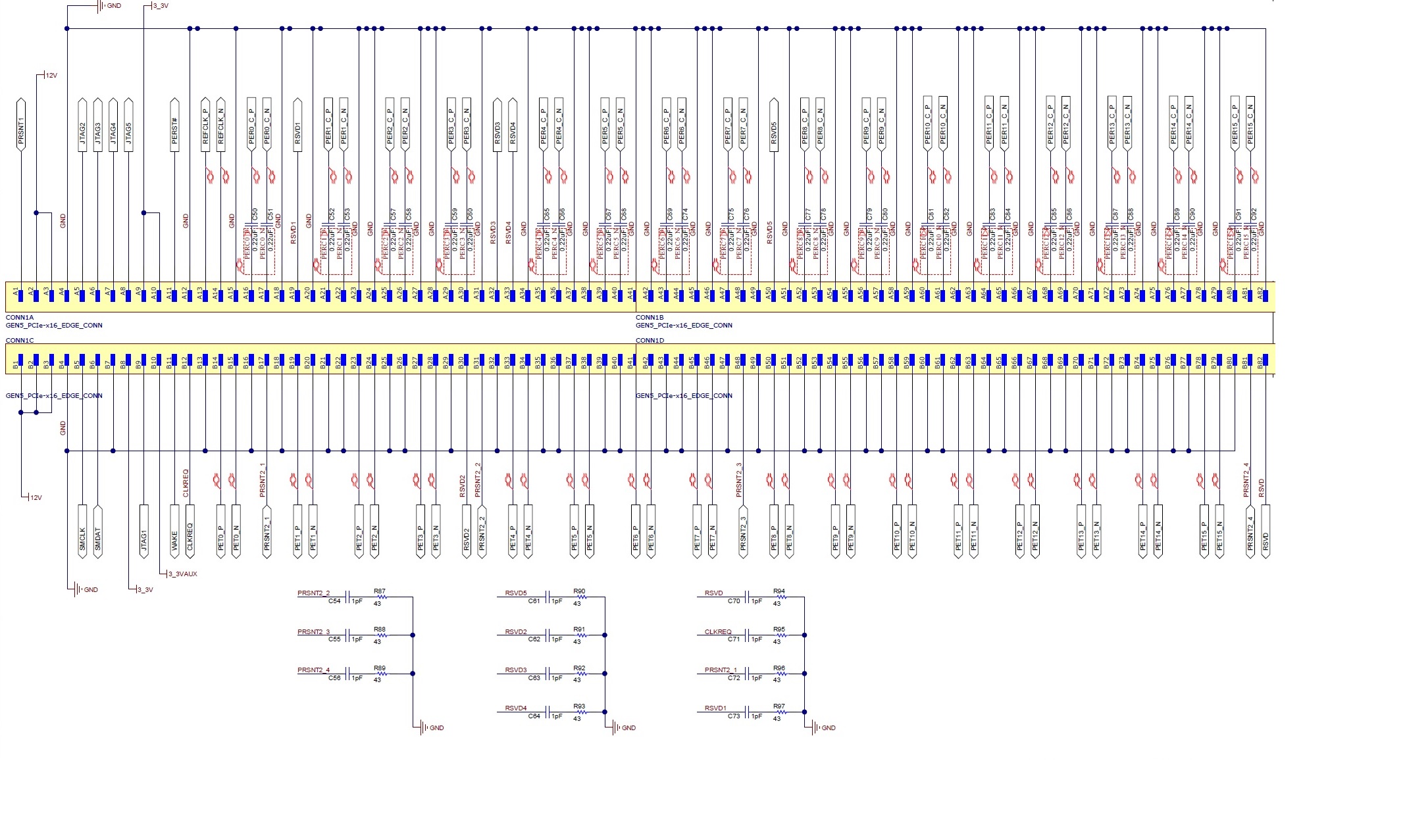

Figure 4-4 Gold Finger Connector Schematic Page

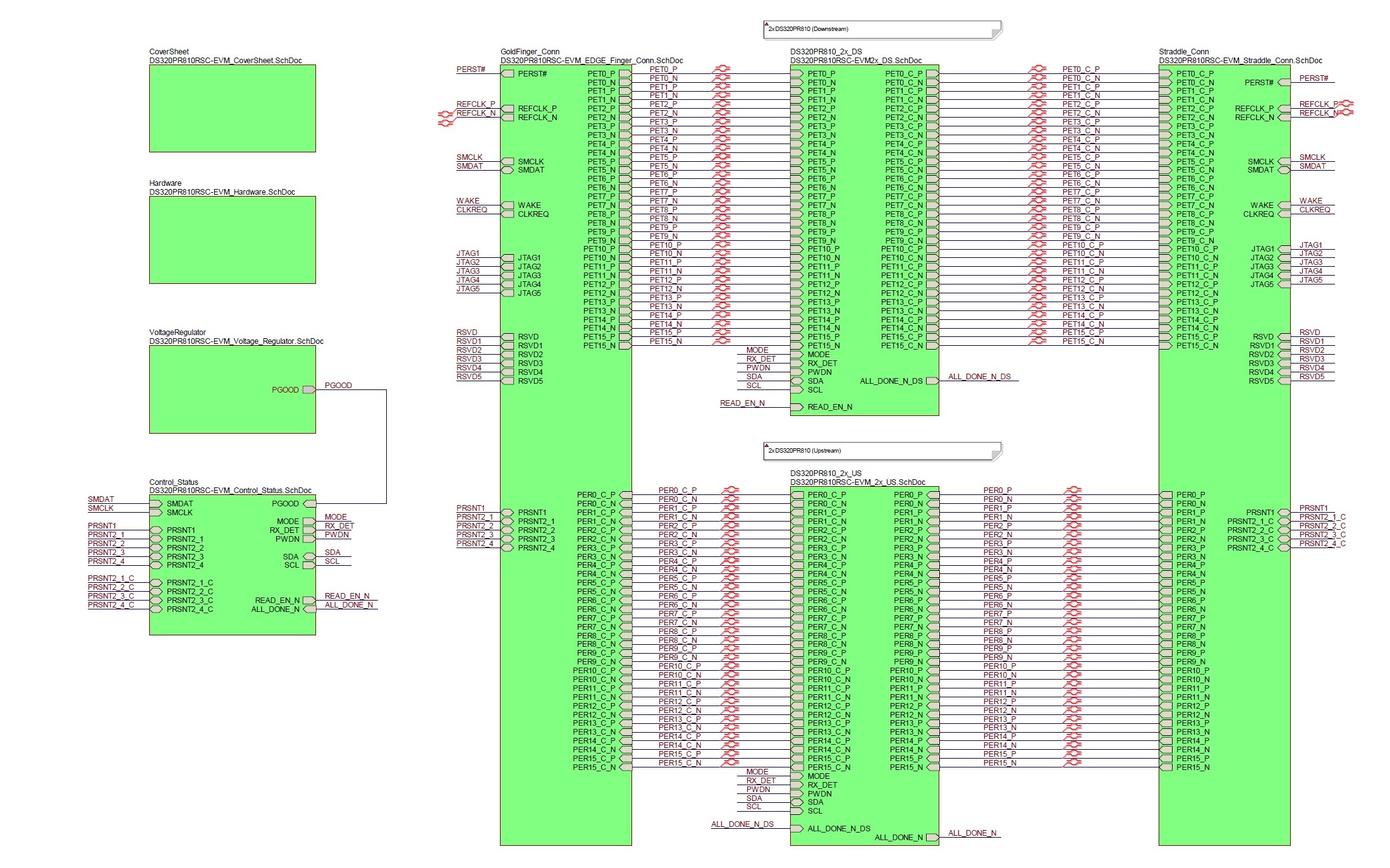

Figure 4-5 Downstream Devices Schematic Page

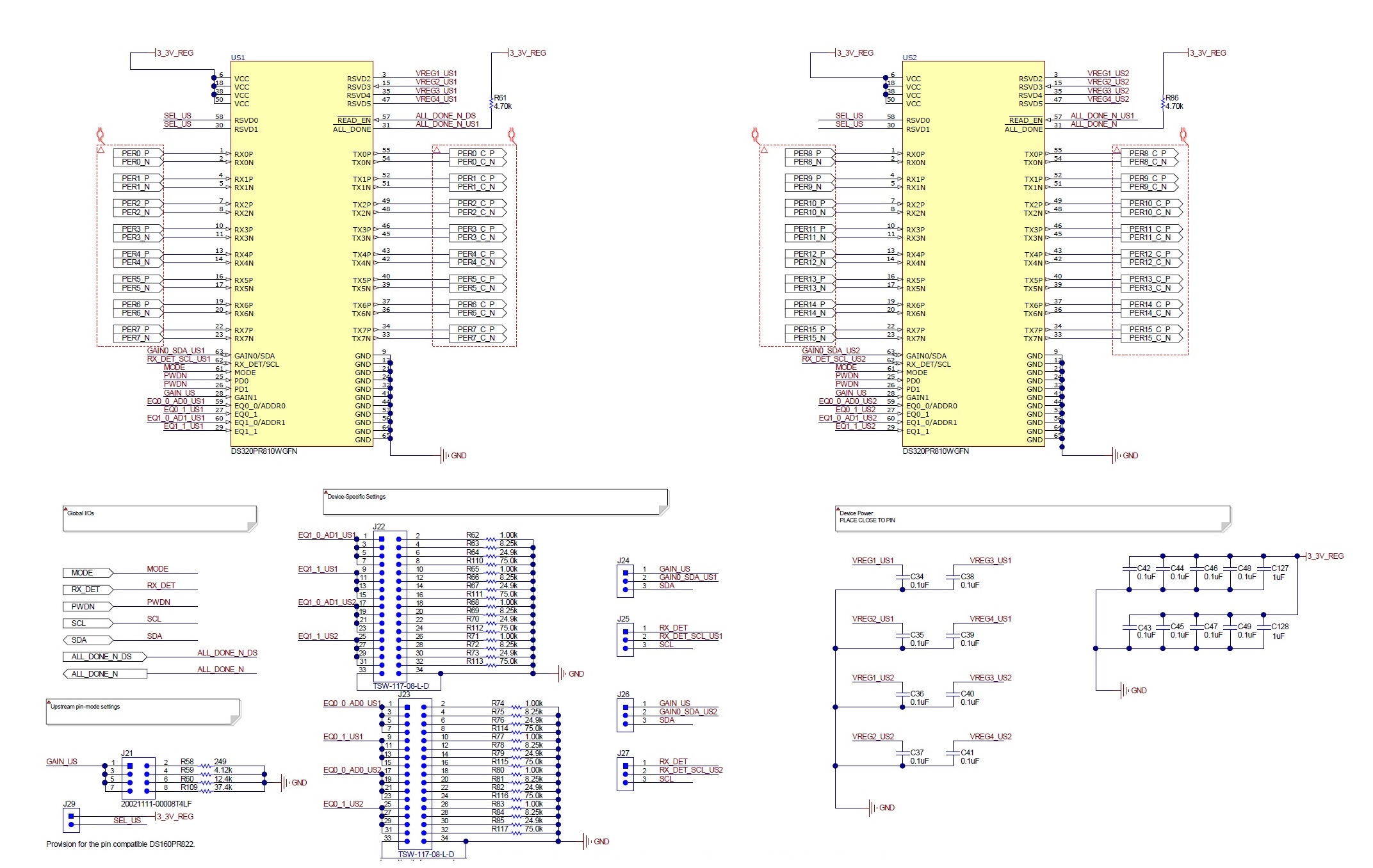

Figure 4-6 Upstream Devices Schematic Page

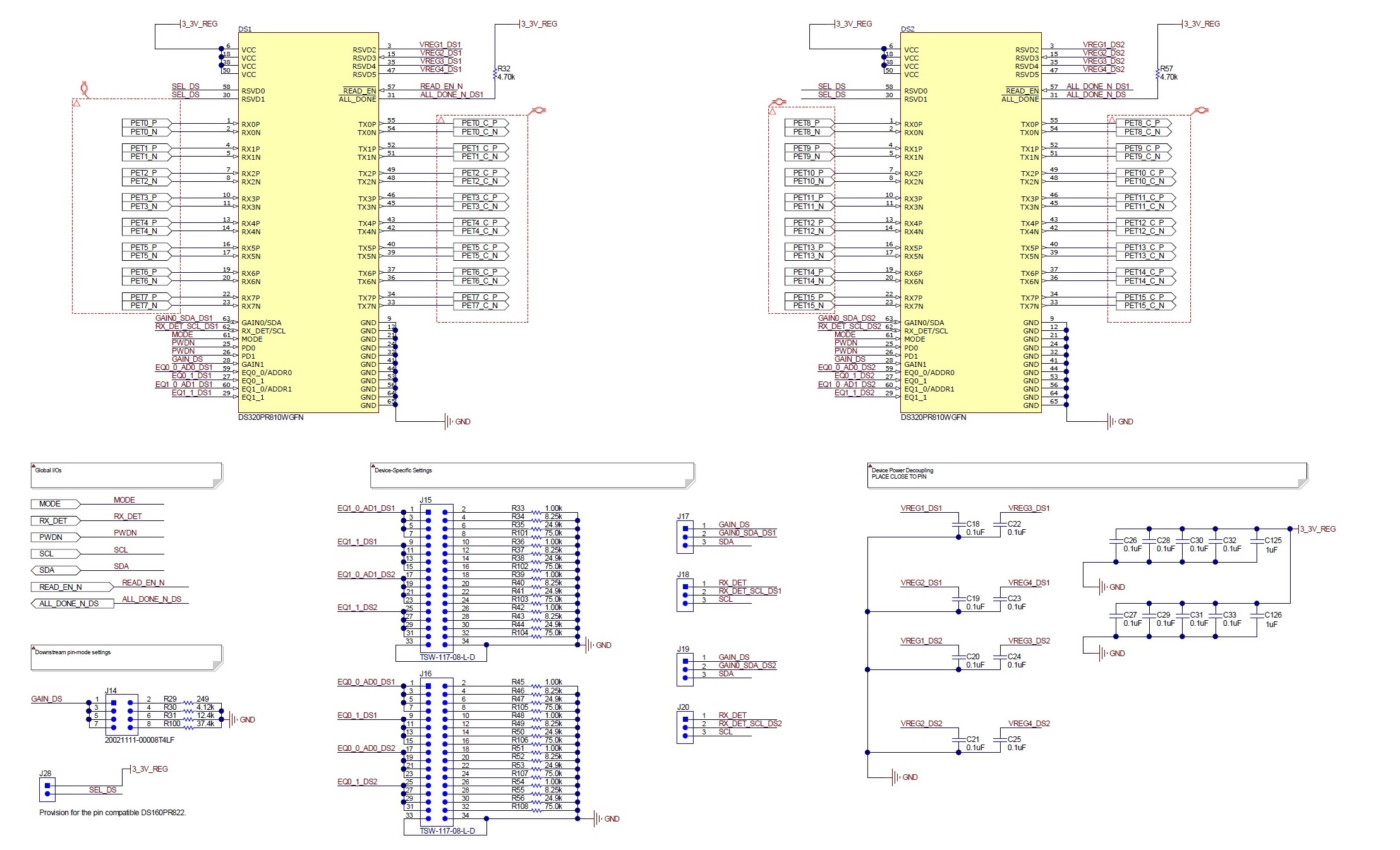

Figure 4-7 Straddle
Connector Schematic Page
Figure 4-8 Hardware Page
