5 TLVM23625EVM Evaluation

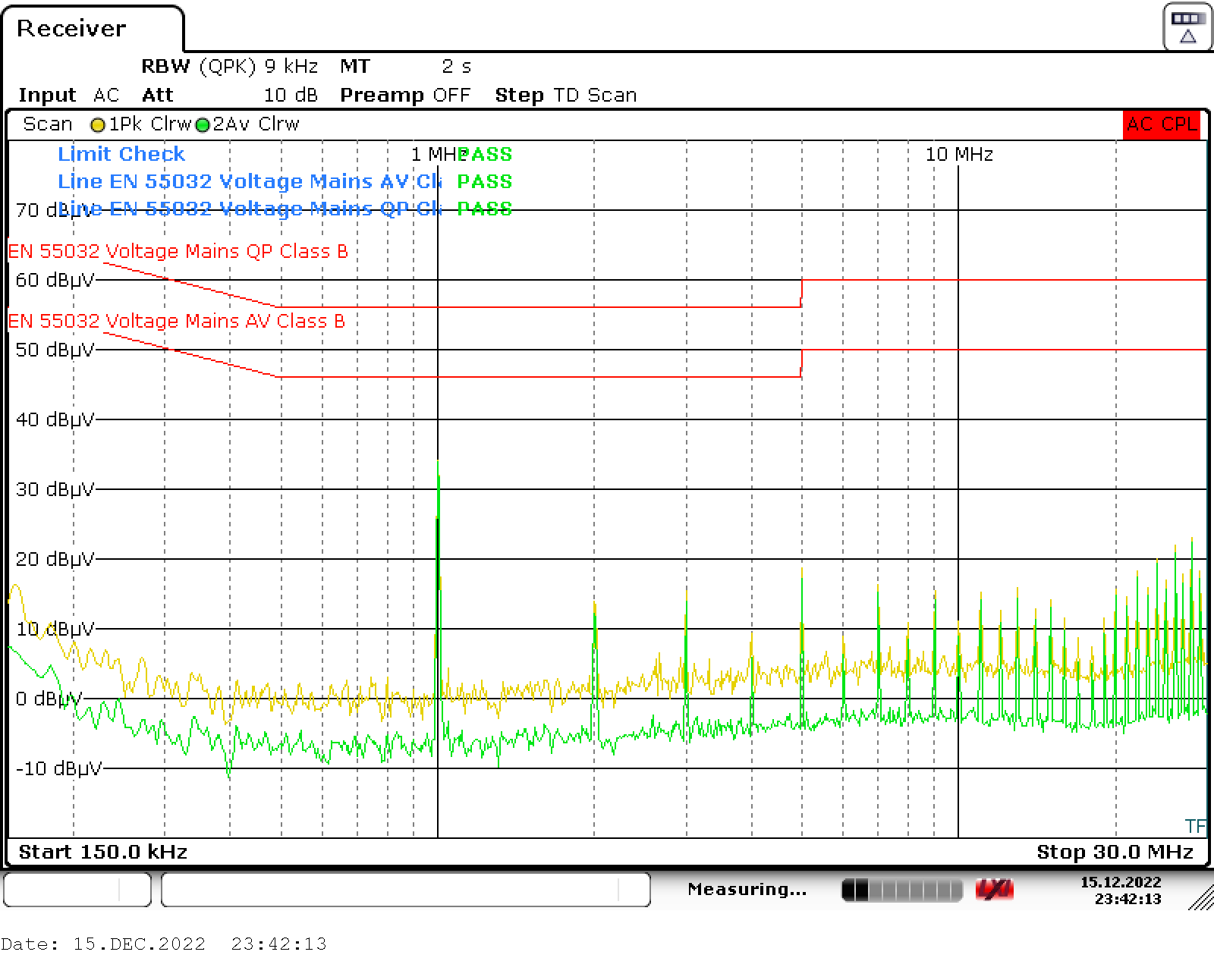

The data was tested on the EVM, with L1 changed to 4.7 uH. The EVM was configured for 1-MHz operation and 5 V_OUT, and was measured at 12 V_IN and a 2.5-A load.

Figure 5-1 CISPR11/32 Conducted Scan

The data was tested on the EVM, with L1 changed to 4.7 uH. The EVM was configured for 1-MHz operation and 5 V_OUT, and was measured at 24 V_IN and a 2.5-A load.

Figure 5-2 CISPR11/32 Conducted Scan

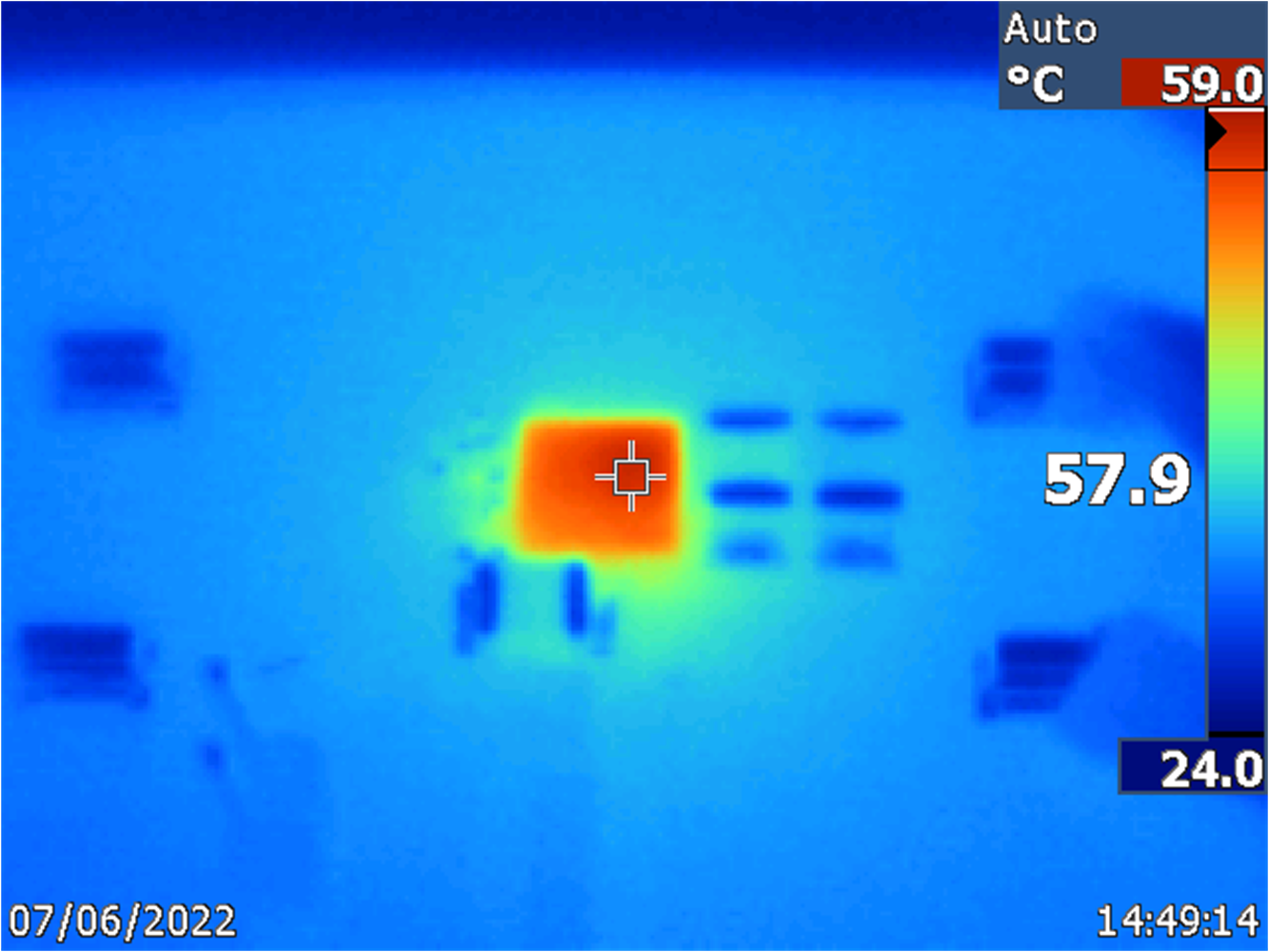

12 V_IN, 2.2 MHz, 2-A load (continuous)

Figure 5-3 IR Top Case Measurement

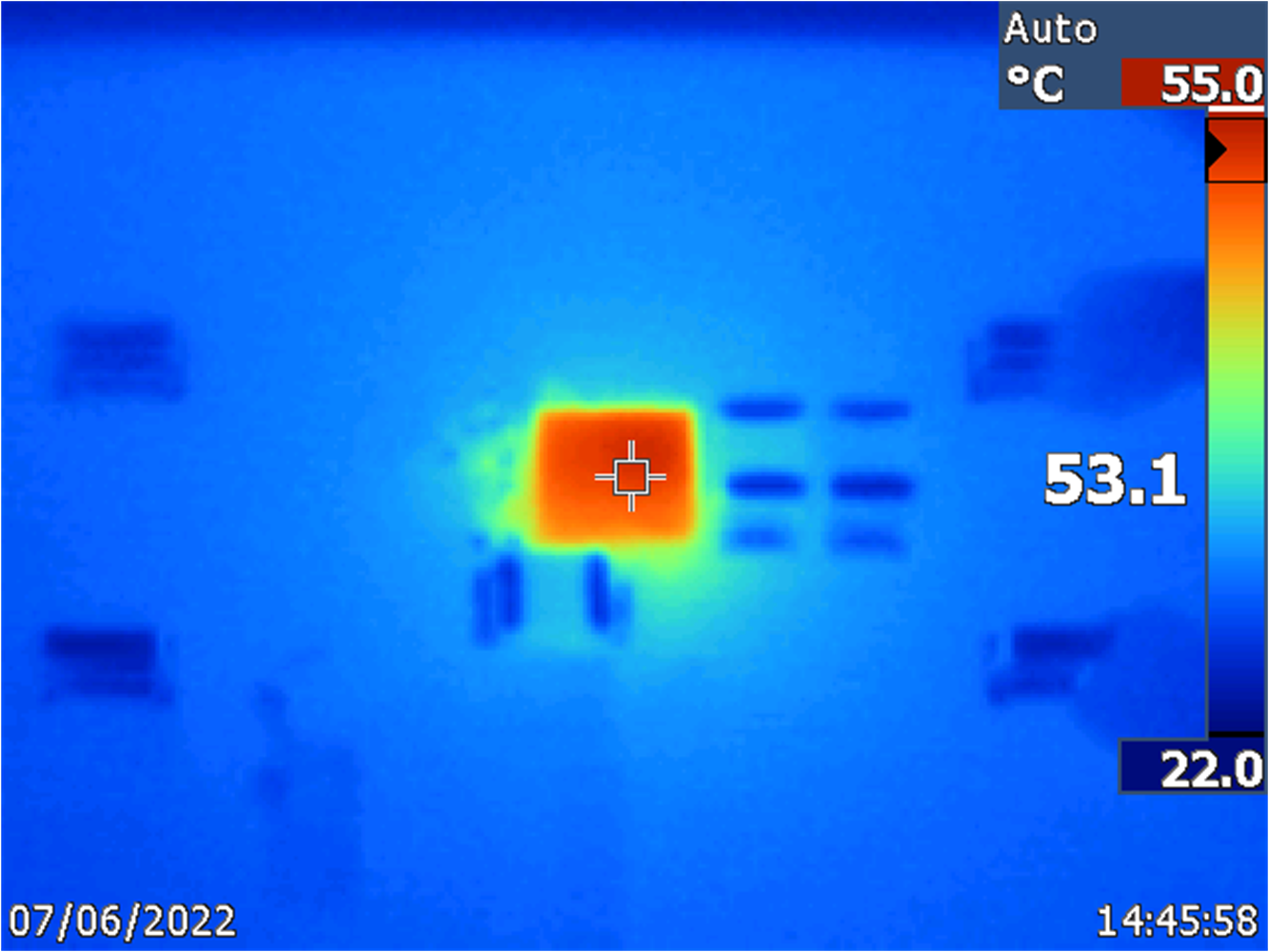

12 V_IN, 1 MHz, 2-A load (continuous)

Figure 5-4 IR Top Case Measurement

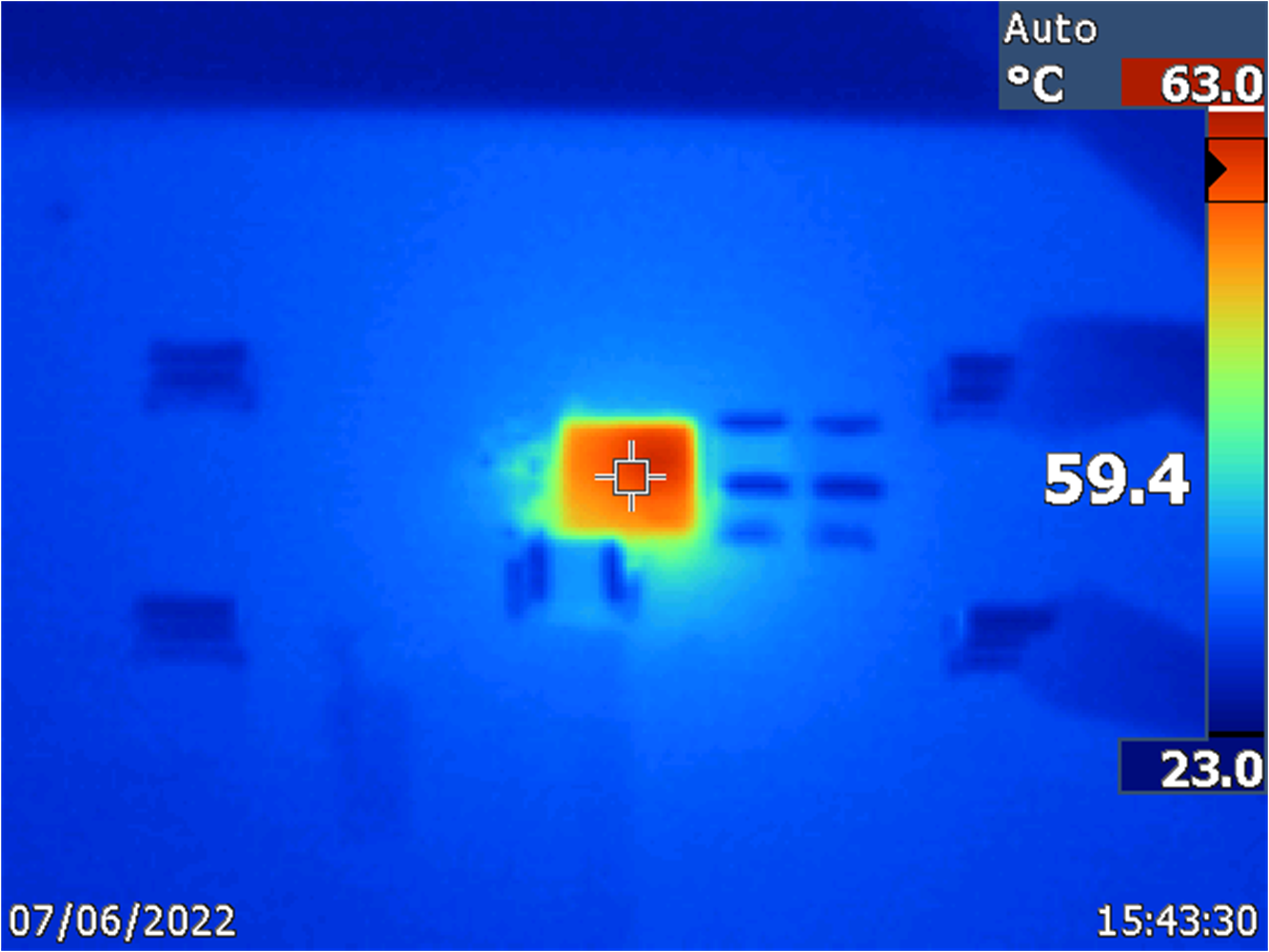

12 V_IN, 500 kHz, 2-A load (continuous)

Figure 5-5 IR Top Case Measurement

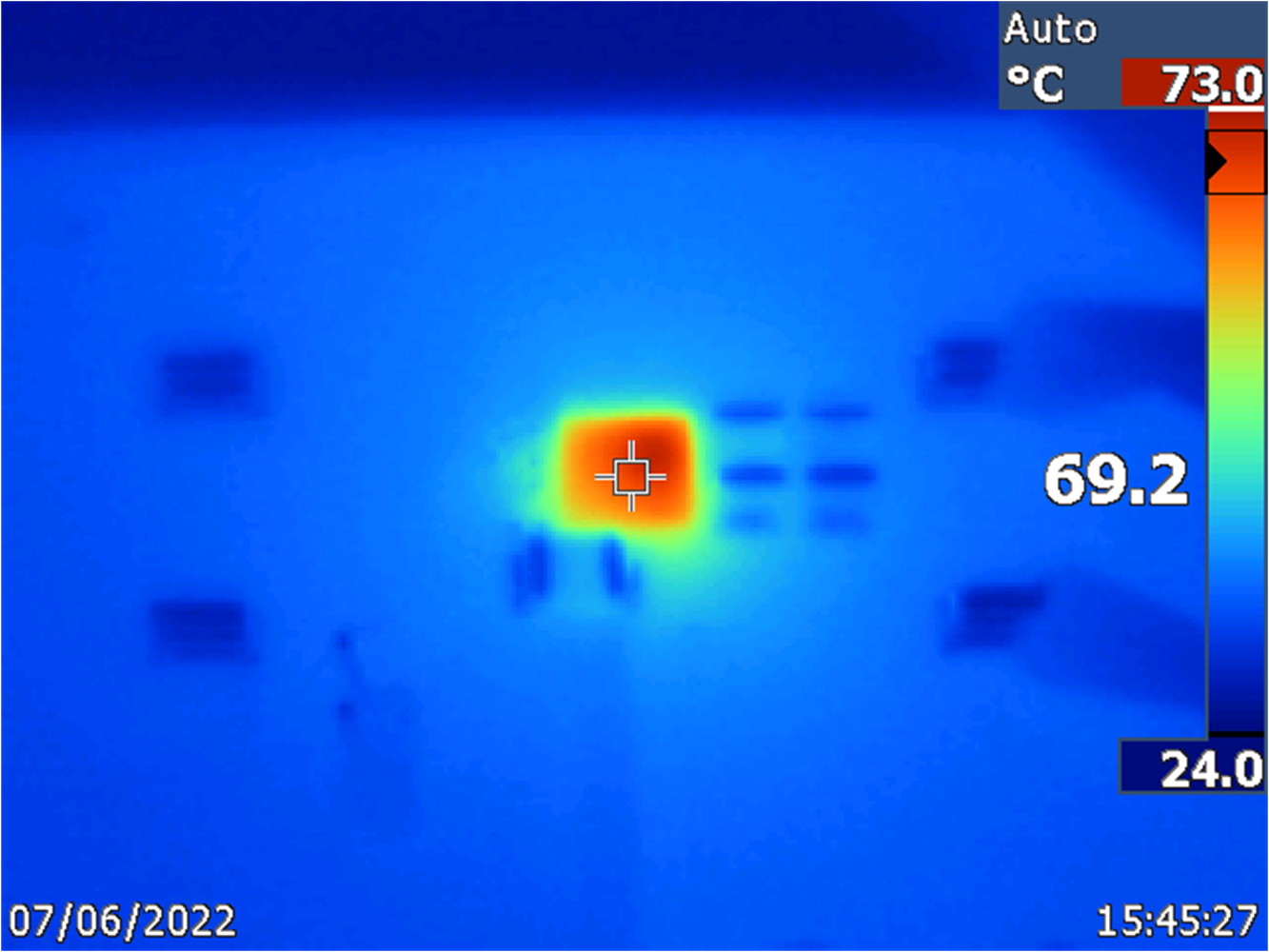

24 V_IN, 2.2 MHz, 2-A load (continuous)

Figure 5-6 IR Top Case Measurement

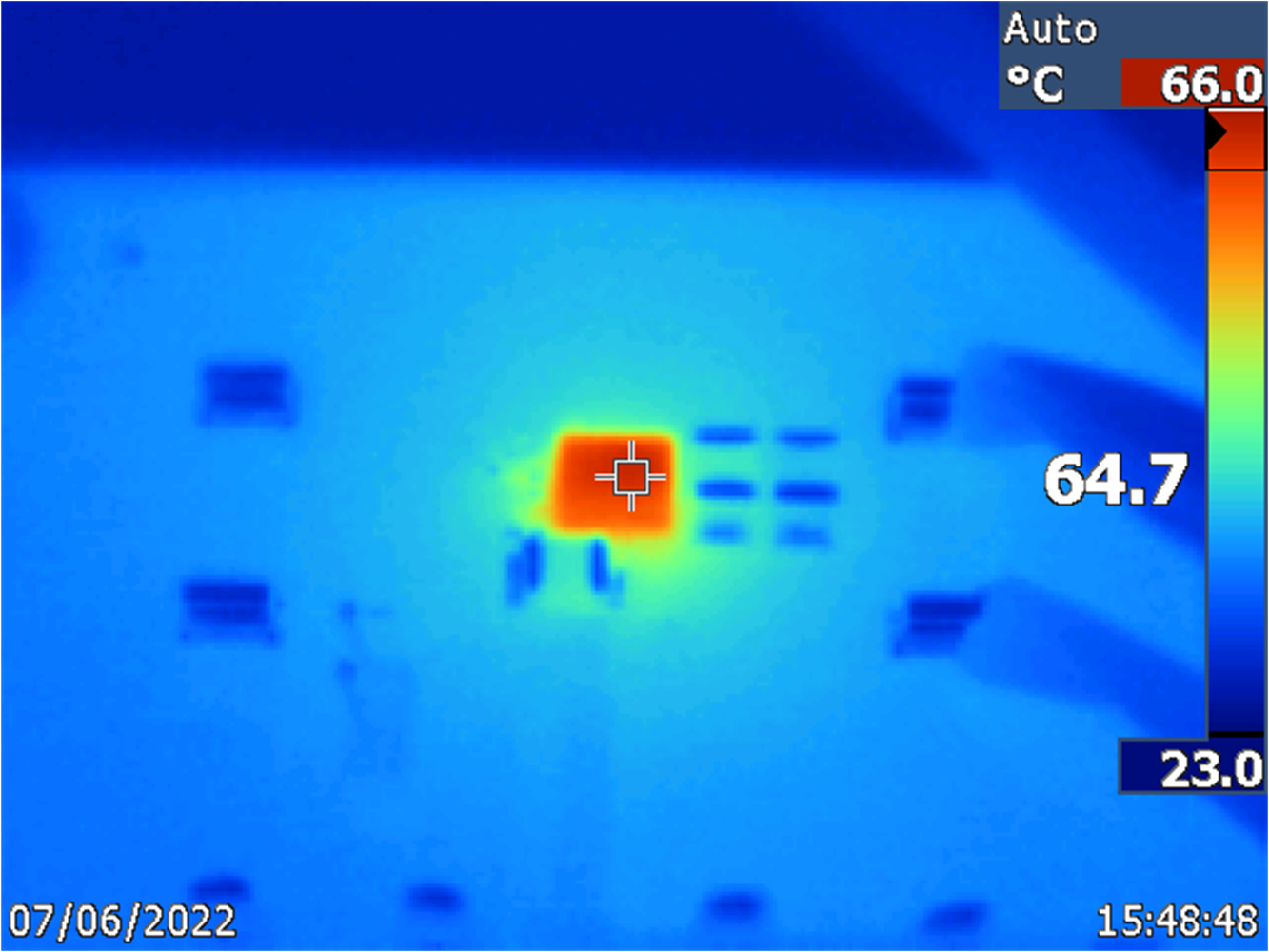

24 V_IN, 1 MHz, 2-A load (continuous)

Figure 5-7 IR Top Case Measurement

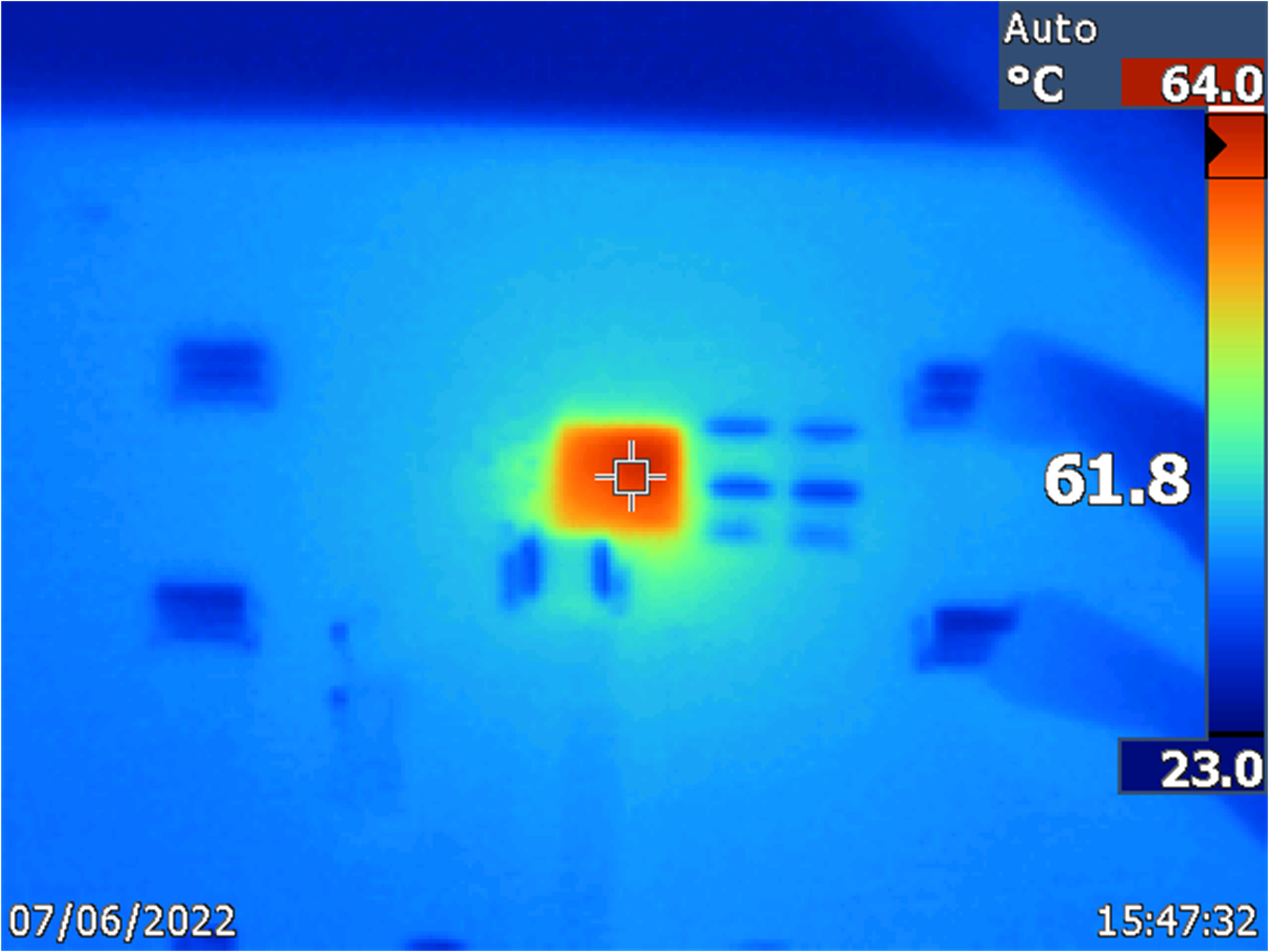

24 V_IN, 500 kHz, 2-A load (continuous)

Figure 5-8 IR Top Case Measurement
