6.1 On-Resistance (Ron) Test Setup

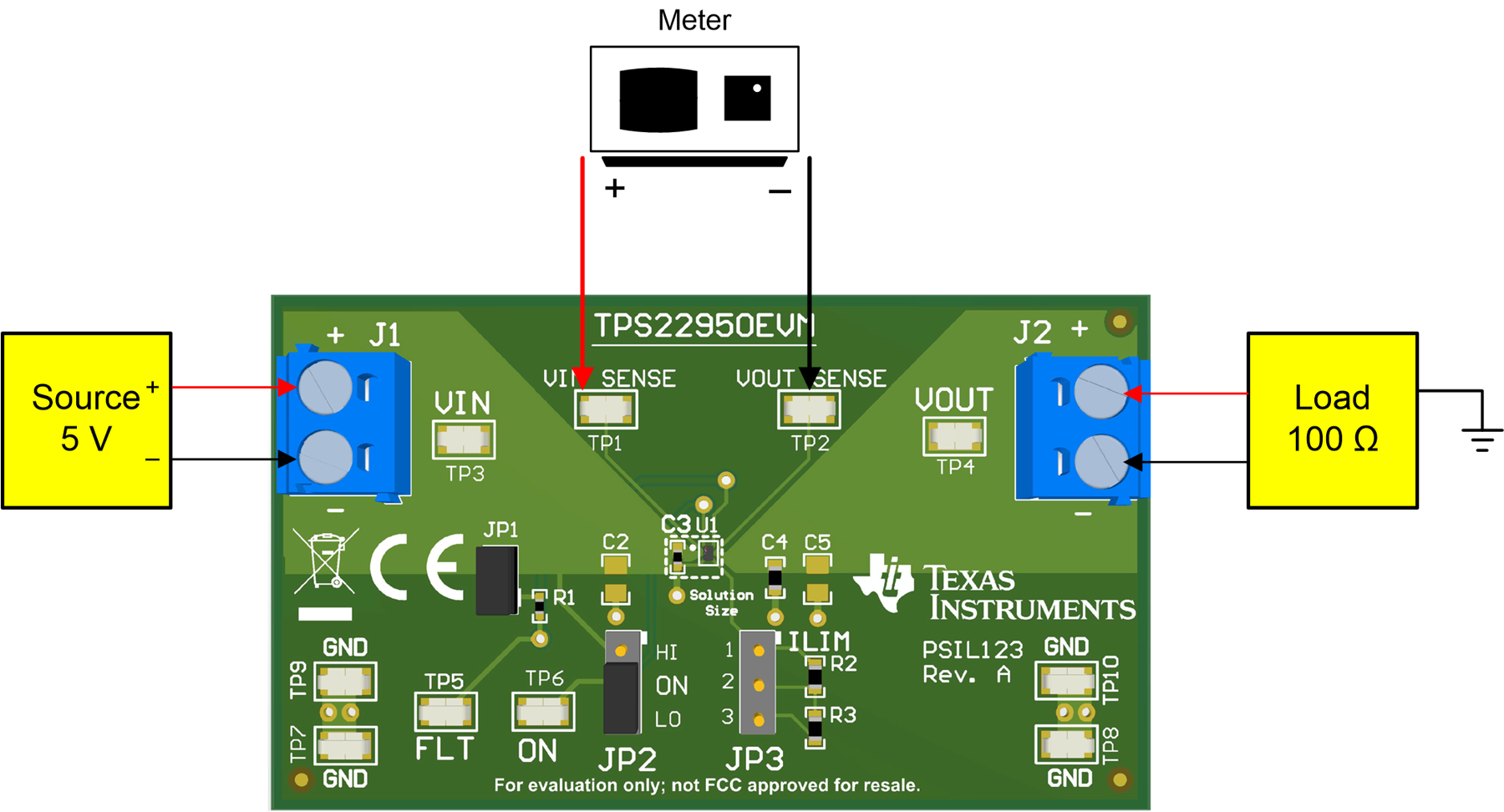

Figure 6-1 shows the typical setup for measuring on-resistance. The voltage drop across the switch is measured using the sense connections, and this can be divided by the load current to calculate the Ron resistance.
Figure 6-1 Ron Test Setup
