Use the following instructions to perform surge test on the current input channel-1:

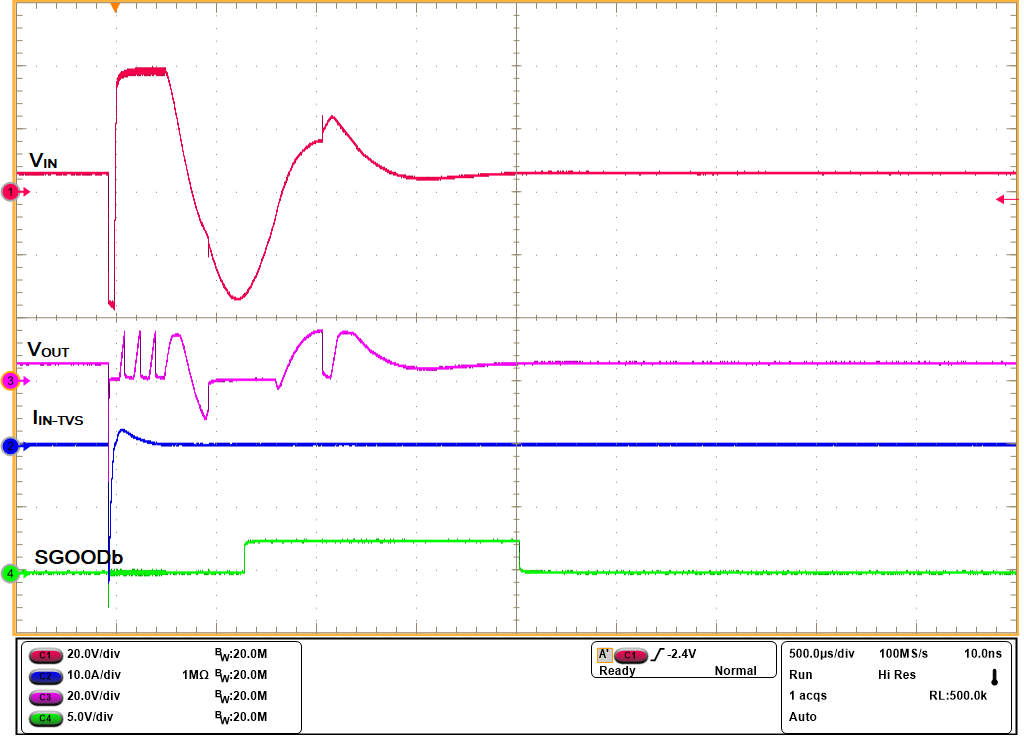

Figure 5-13 IEC61000-4-5 (+1 kV, 42 Ω)
Signal Line Surge Immunity With TVS3301 at Input of CH1

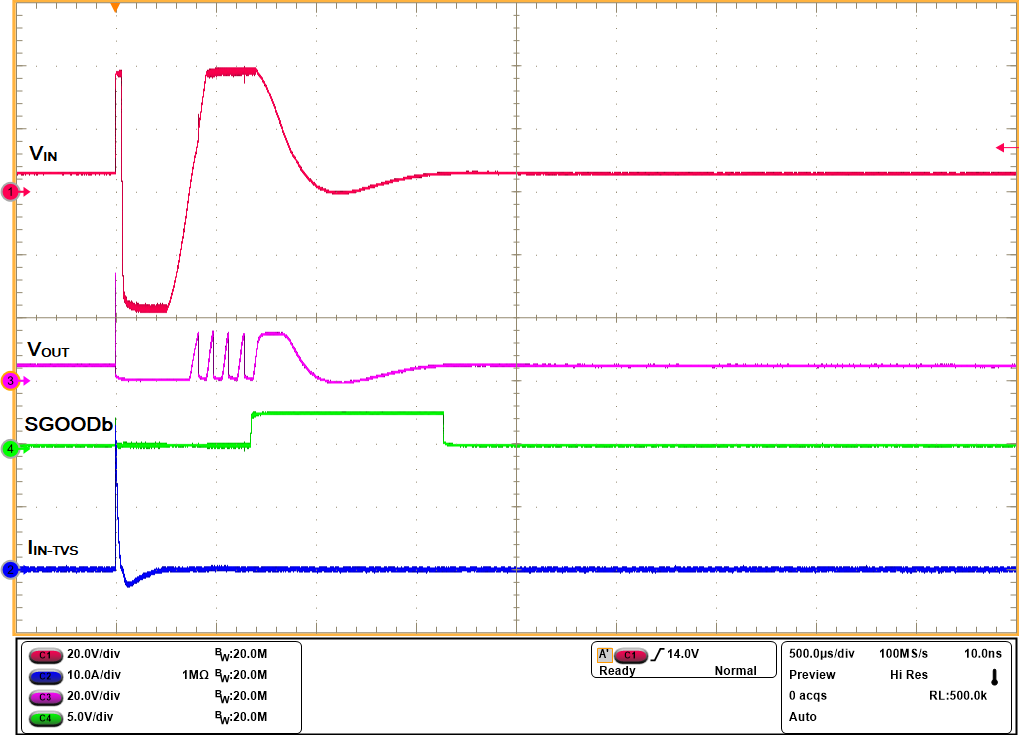

Figure 5-14 IEC61000-4-5 (–1 kV, 42 Ω)
Signal Line Surge Immunity With TVS3301 at Input of CH1
