SLVUBU7A April 2020 – September 2020 TPS61378-Q1
4 Board Layout
The TPS61378Q1EVM board is a 4-layer, 2-oz copper thick PCB. All the components are placed on the top layer. Figure 4-1 and Figure 4-2 show the top view and bottom view, respectively. Figure 4-3 and Figure 4-4 show the inner layer 1 and inner layer 2, respectively.

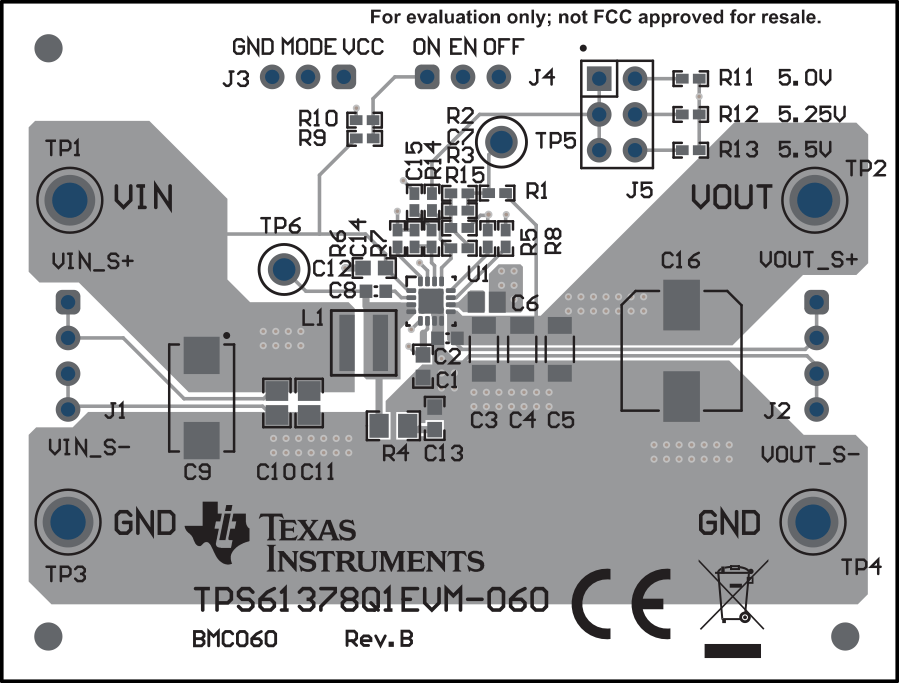

Figure 4-1 TPS61378Q1EVM-060 Top-Side
Layout

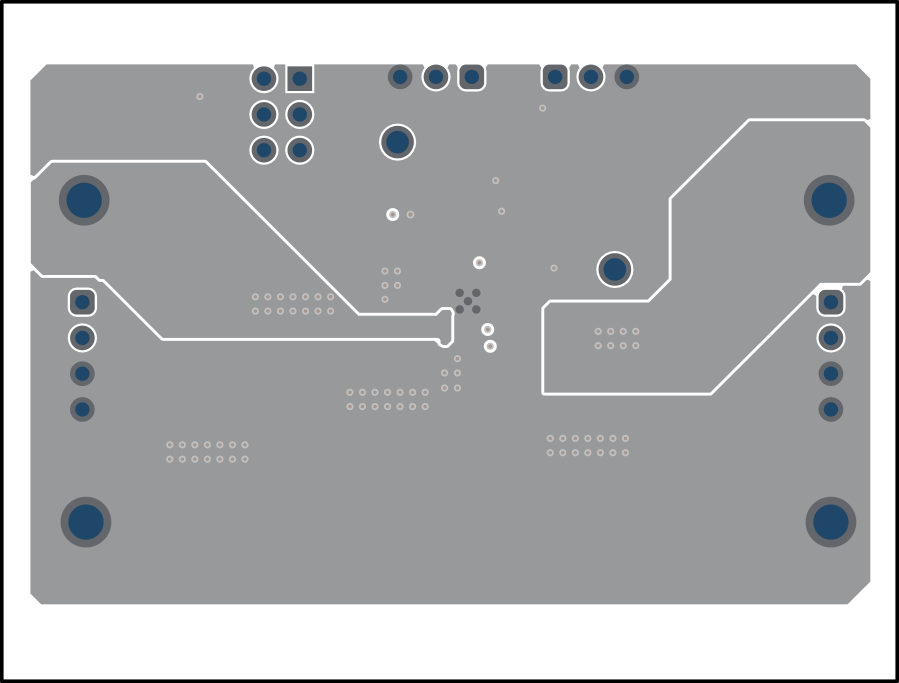

Figure 4-2 TPS61378Q1EVM-060 Bottom-Side
Layout
Figure 4-3 TPS61378Q1EVM-060 Inner Layer 1
Layout

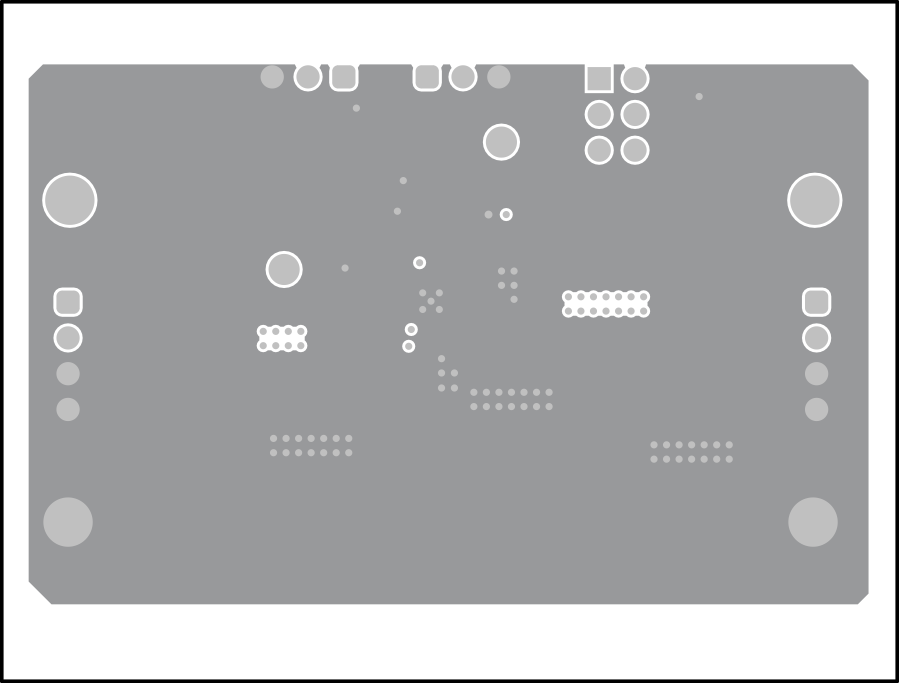

Figure 4-4 TPS61378Q1EVM-060 Inner Layer 2
Layout
