6.3 In-Circuit Programming
The TPS650330-Q1 EVM demonstrates the in-circuit programming capabilities of the TPS650330-Q1 PMIC in a typical application. This section provides an example in-circuit programming procedure with application considerations.
- Verify the desired power and sequence settings using the GUI's Sequencing Overview tools. See Configuring the Power Sequence.
- Validate the settings with the BOOSTXL-TPS65033. This socketed board provides a quicker way to evaluate device settings.
- Once settings are verified and
validated, configure the TPS650330-Q1 EVM for a typical camera application:
- Ensure the I2C pull-up jumpers (J24 and J34) are populated.
- Supply the PMIC VIO with either the Buck 1 or Buck 2 output. See Selecting the Logic Supply Voltage.
- Tie the PMIC Buck 1 input to VSYS. See Buck 1 Input Supply.
- Supply the PMIC Buck 2, Buck 3, and LDO with the Buck 1 output. See Selecting Regulator Input Supplies.
- Assert SEQ (S1) before applying power.
- Apply a Buck 1 input voltage (typical
is 12 V) to power up the device. By default, the Buck 1 and Buck 2 regulators are
enabled, allowing the 3.3 V and 1.8 V rails to power up.
- In a typical camera application, this may be sufficient to power up the serializer and enable PMIC programming over the Serializer-Deserializer (SerDes) back-channel.
- If additional rails are required, assert GPIO (S4) to enable the Buck 3 and LDO regulators.
- Unlock the configuration and control registers.
- Re-program the PMIC settings. If changing a regulator output voltage, TI recommends disabling the regulator first. If doing this in an application setting shuts down a critical component, change the output voltage in small steps to prevent triggering under or over-voltage fault handling.
- If the device configuration Cyclic
Redundancy Check (CRC) is enabled, calculate and write the new configuration CRC by
running the GUI's built-in script. For more information on the GUI's capabilities
for programming automation, see the BOOSTXL-TPS65033 User's Guide.

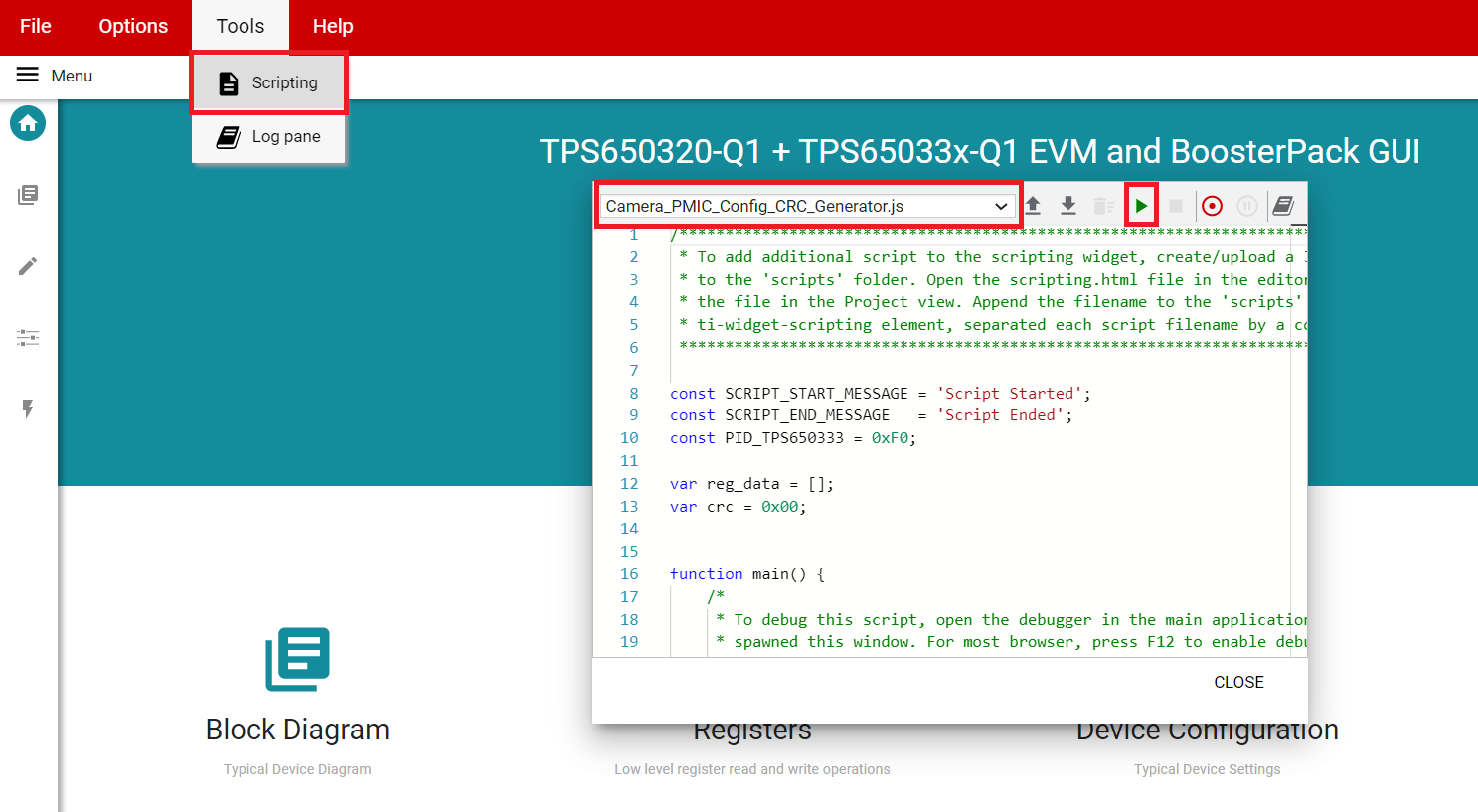

Figure 6-14 GUI Configuration CRC
Script - Burn the final PMIC register settings to EEPROM.
- Validate the settings on subsequent startups.
