SLVUB95C December 2017 – August 2018 DRV10974
4.2 Interface Connector (P2) for Phase Windings of Motor
Connector P2 is used to interface the U, V, and W phases. The pin assignments are as follows:

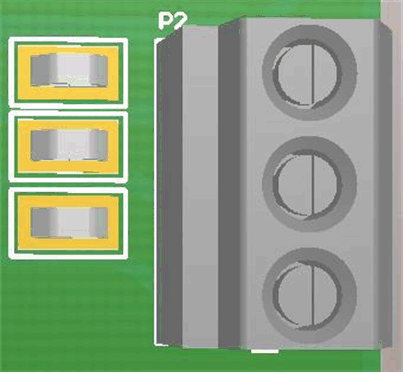

Figure 6. Motor Phase Windings Input Terminal Block (P2) Table 2. Connector P2: 3-Terminal Connector to Connect 3-Phase BLDC Motor
| TERMINAL | DESCRIPTION |
|---|---|
| 1(1) | Phase-U |
| 2 | Phase-V |
| 3 | Phase-W |
(1) Note that terminal 1 is denoted by the small, silkscreened rectangle on the board at the right side of the terminal block.
