SLVUB77A July 2017 – October 2021 TPS54336A
4.1 Schematic

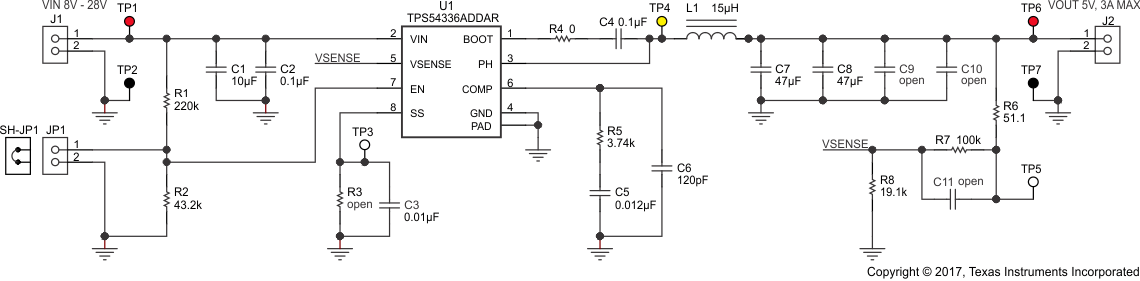

Figure 4-1 is the schematic for the TPS54336AEVM-010.
Figure 4-1 TPS54336AEVM-010 SchematicSLVUB77A July 2017 – October 2021 TPS54336A
Figure 4-1 is the schematic for the TPS54336AEVM-010.
Figure 4-1 TPS54336AEVM-010 Schematic
