SLVUAP9B May 2016 – October 2021 TPS54302
2.6 Output Voltage Ripple
Figure 2-6, Figure 2-7, Figure 2-8, and Figure 2-9 show the TPS54302EVM-716 output voltage ripple for full-load, skip-mode, light-load and no-load operation. VIN = 24 V. The output The ripple voltage is measured directly across the output capacitors.

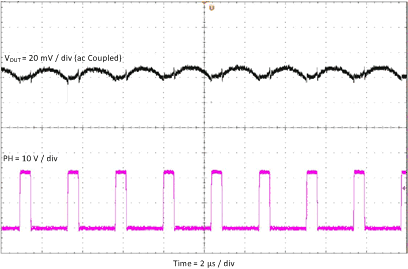

Figure 2-6 TPS54302EVM-716 Output Ripple, IOUT = 3 A

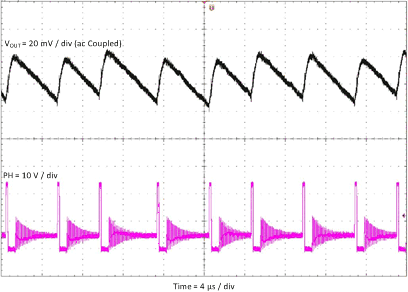

Figure 2-7 TPS54302EVM-716 Output Ripple, IOUT = 100 mA

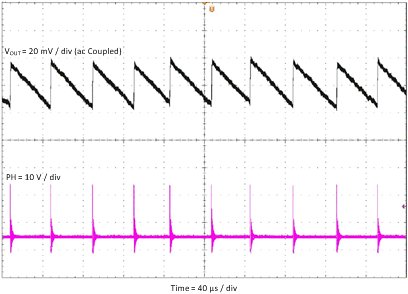

Figure 2-8 TPS54302EVM-716 Output Ripple, IOUT = 10 mA

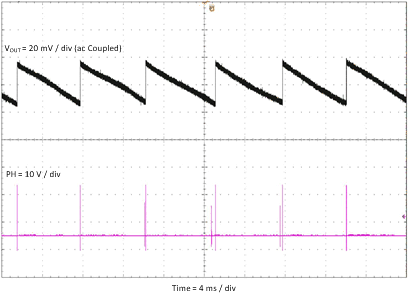

Figure 2-9 TPS54302EVM-716 Output Ripple, IOUT = 0 A
