2.6 Output Voltage Ripple
Figure 2-6, Figure 2-7, Figure 2-8, and Figure 2-9 show the TPS54202HEVM-716 output voltage ripple for full-load, skip-mode, light-load and no-load operation. VIN = 24 V. The output The ripple voltage is measured directly across the output capacitors.

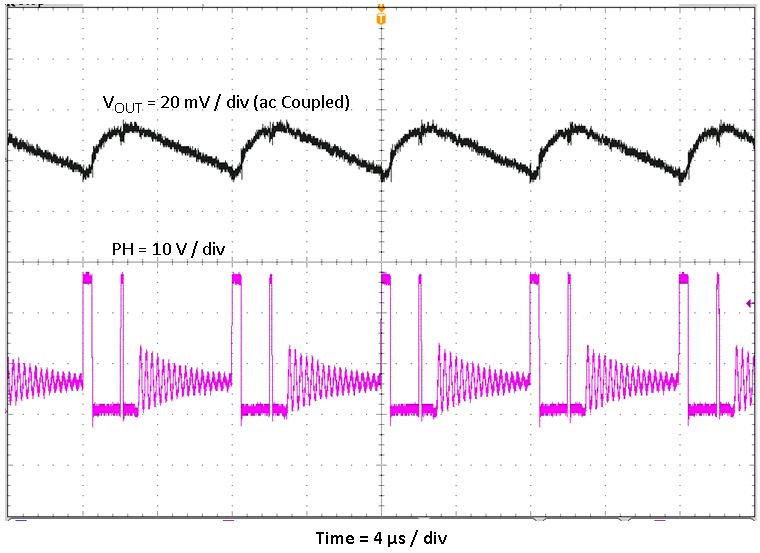

Figure 2-6 TPS54202HEVM-716 Output Ripple, IOUT = 2 A

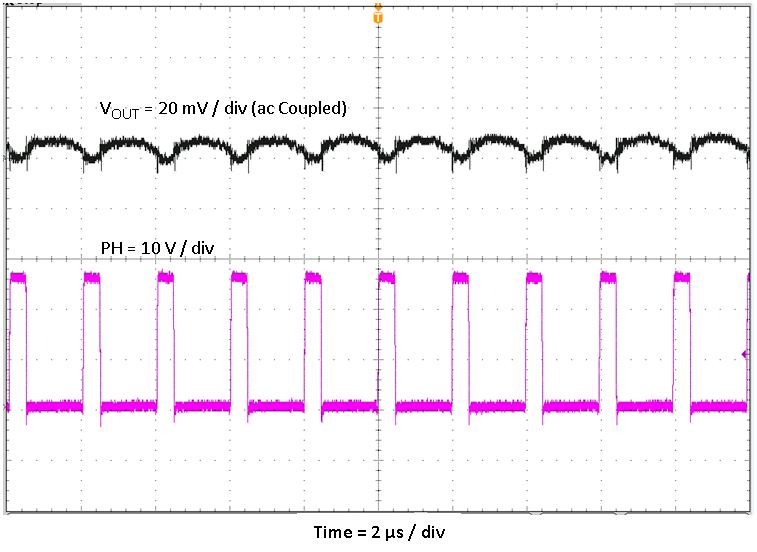

Figure 2-7 TPS54202HEVM-716 Output Ripple, IOUT = 100 mA

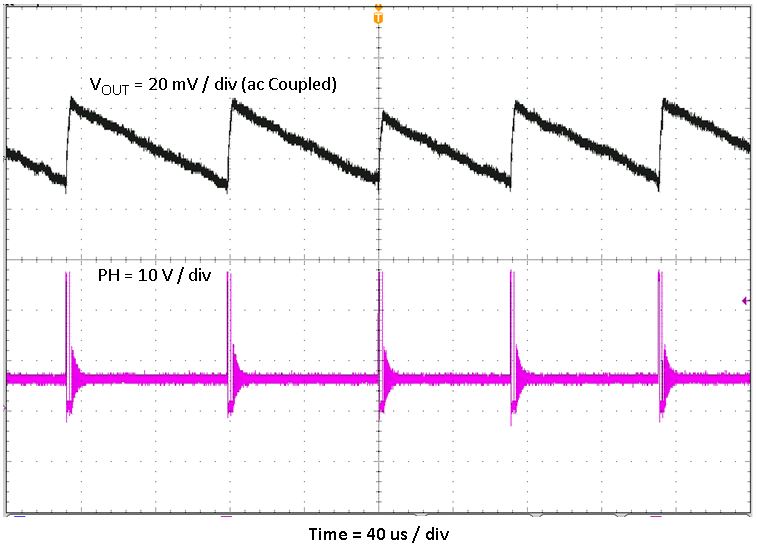

Figure 2-8 TPS54202HEVM-716 Output Ripple, IOUT = 10 mA

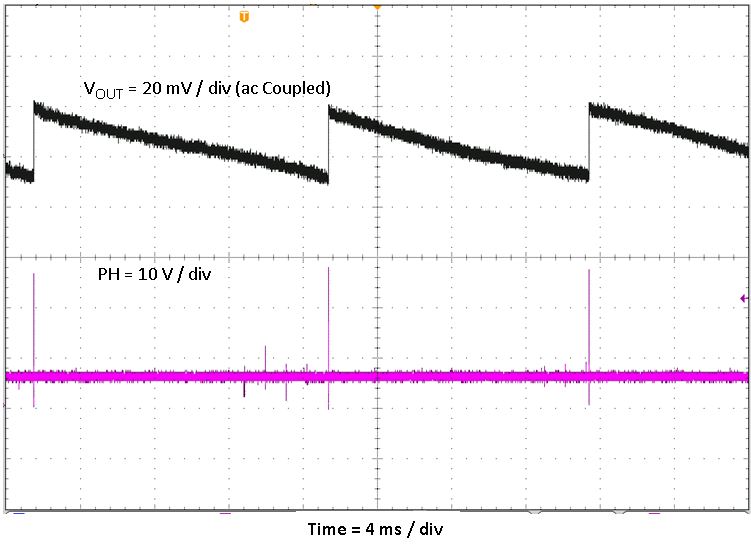

Figure 2-9 TPS54202HEVM-716 Output Ripple, IOUT = 0 A
