2.7 Output Voltage Ripple
Figure 2-7, Figure 2-8, and Figure 2-9 show the TPS54334EVM-722 output voltage ripple for full load, light load, and skip mode operation. VIN = 12 V. The output The ripple voltage is measured directly across the output capacitors.

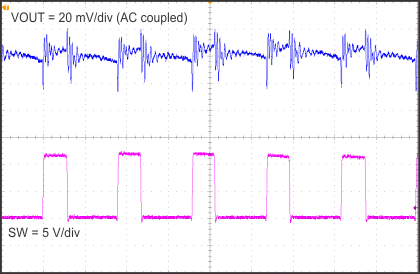

Figure 2-7 TPS54334EVM-722 Output Ripple, IOUT = 3 A

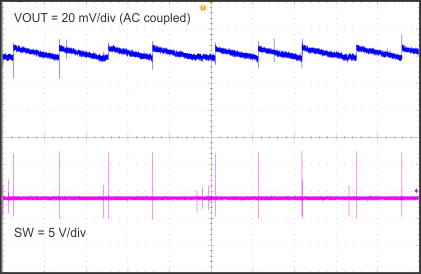

Figure 2-8 TPS54334EVM-722 Output Ripple, IOUT = 200 mA

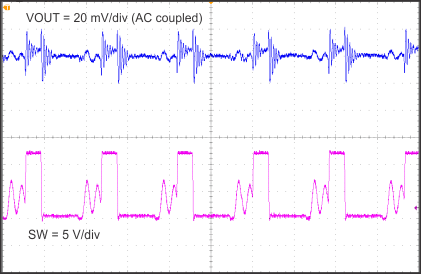

Figure 2-9 TPS54334EVM-722 Output Ripple, IOUT = 0 A
