SLVU942A July 2013 – August 2021 TPS54626
4.10 Start-Up

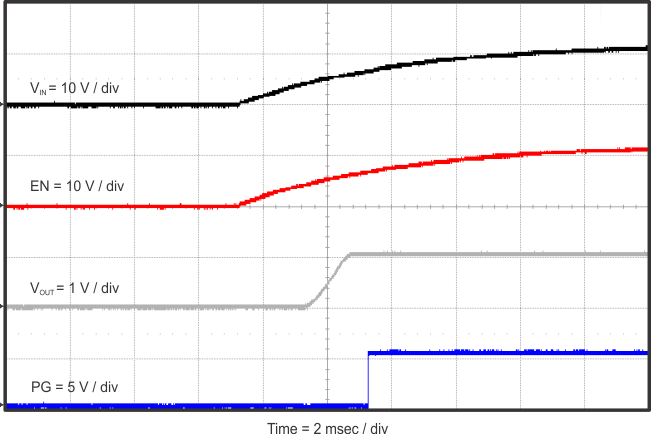

The TPS54626EVM-608 start-up waveform relative to VIN is shown in Figure 4-11. Load = 1 Ω resistive.

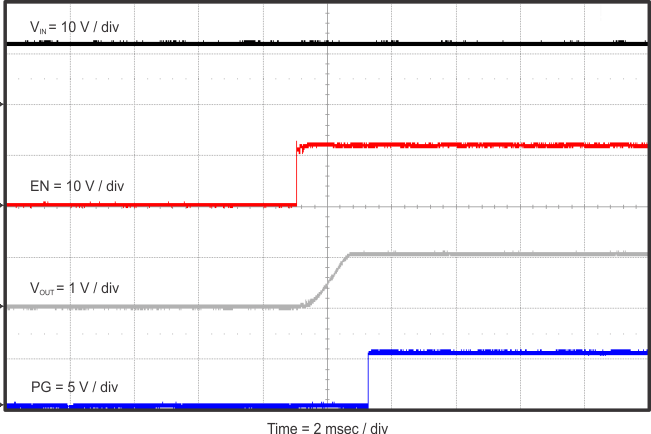

Figure 4-11 TPS54626EVM-608 Start Up Relative to VINThe TPS54626EVM-608 start up waveform relative to enable (EN) is shown in Figure 4-12. Load = 1 Ω resistive.
Figure 4-12 TPS54626EVM-608 Start Up Relative to EN
